Except MIVEC

INTAKE MANIFOLD PLENUM

REMOVAL AND INSTALLATION [3.8L ENGINE]

[EXCEPT MIVEC]

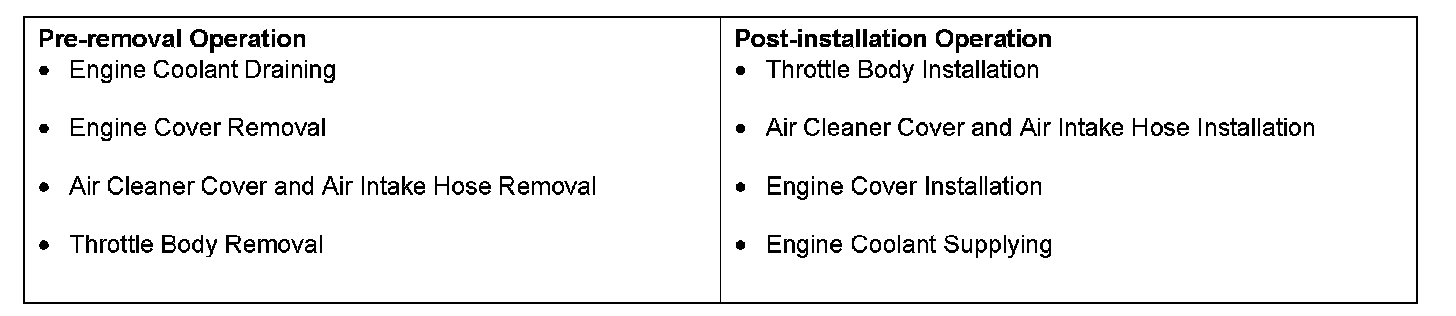

Pre-removal & Post-installation Operation:

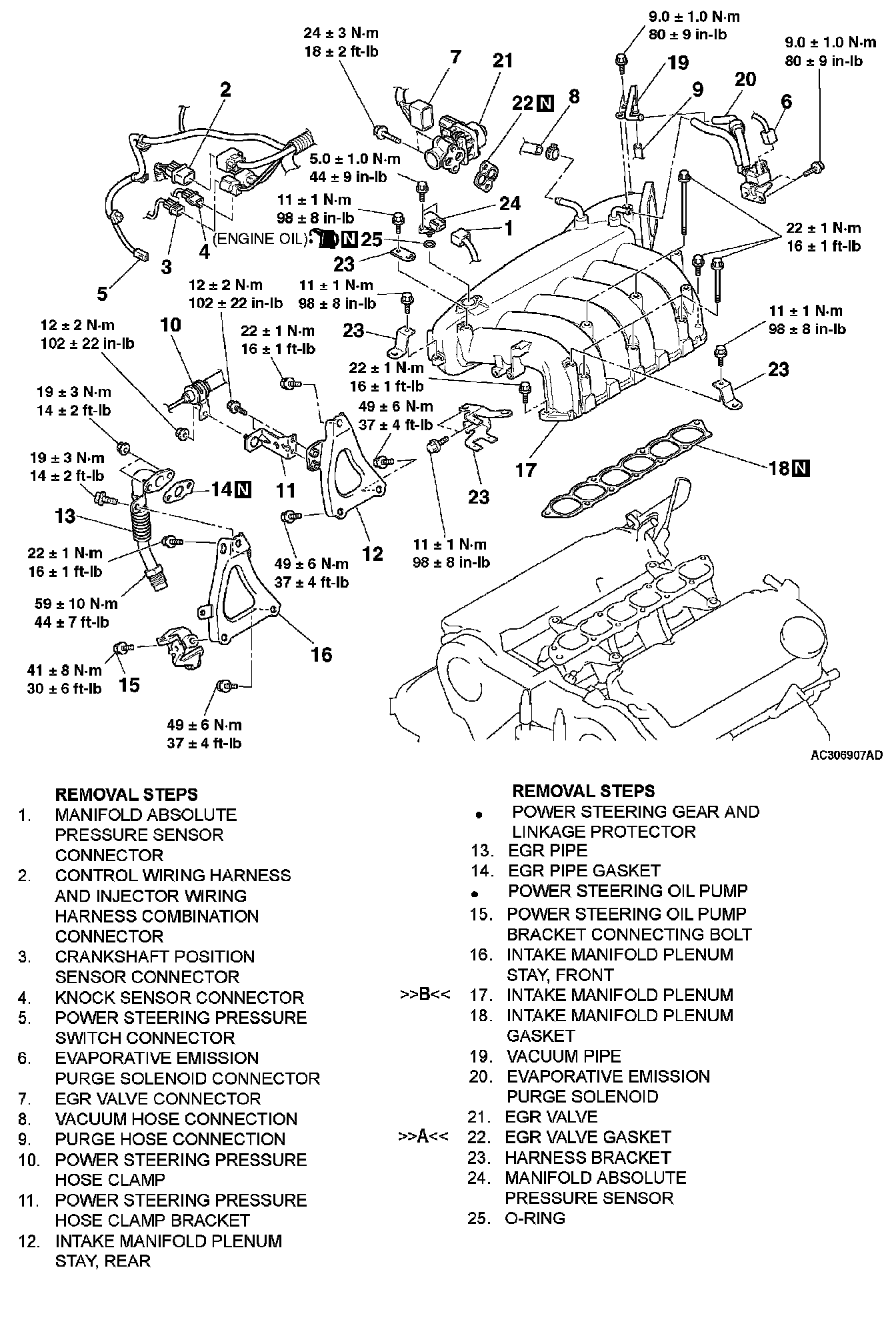

Removal Steps 1-25:

Required Special Tool:
- MD998412: Guide

INSTALLATION SERVICE POINTS

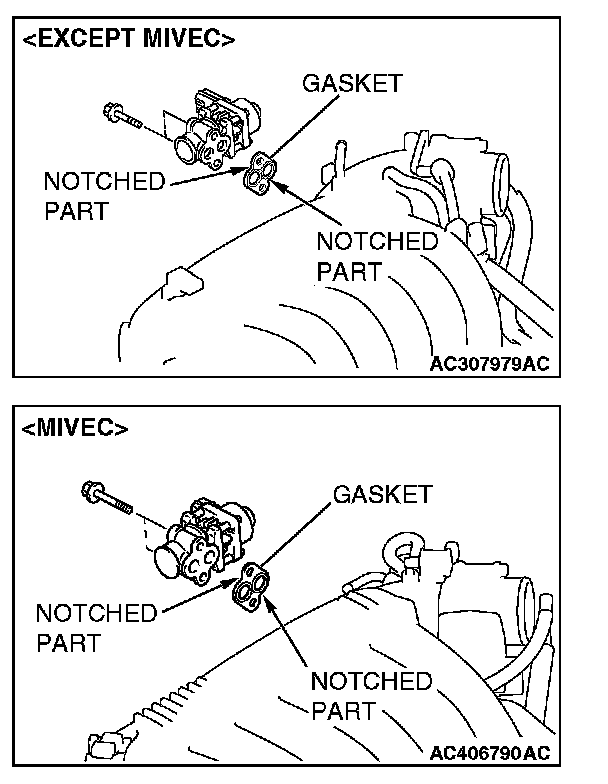

]]A[[ EGR VALVE GASKET INSTALLATION




Install the EGR valve gasket as shown in the illustration.

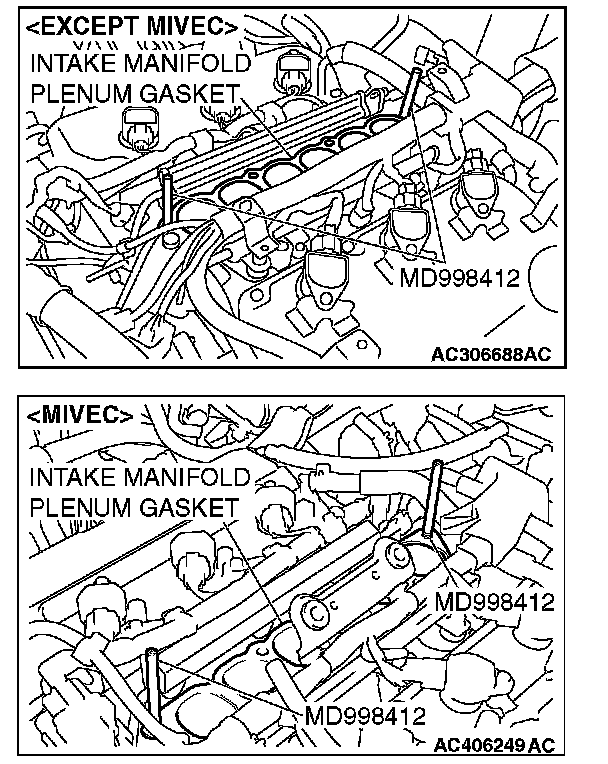

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION




Use special tool MD998412 to install the intake manifold plenum.
