Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2009
>>
Galant V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Valve Body
>>
F5A5A
F5A5A

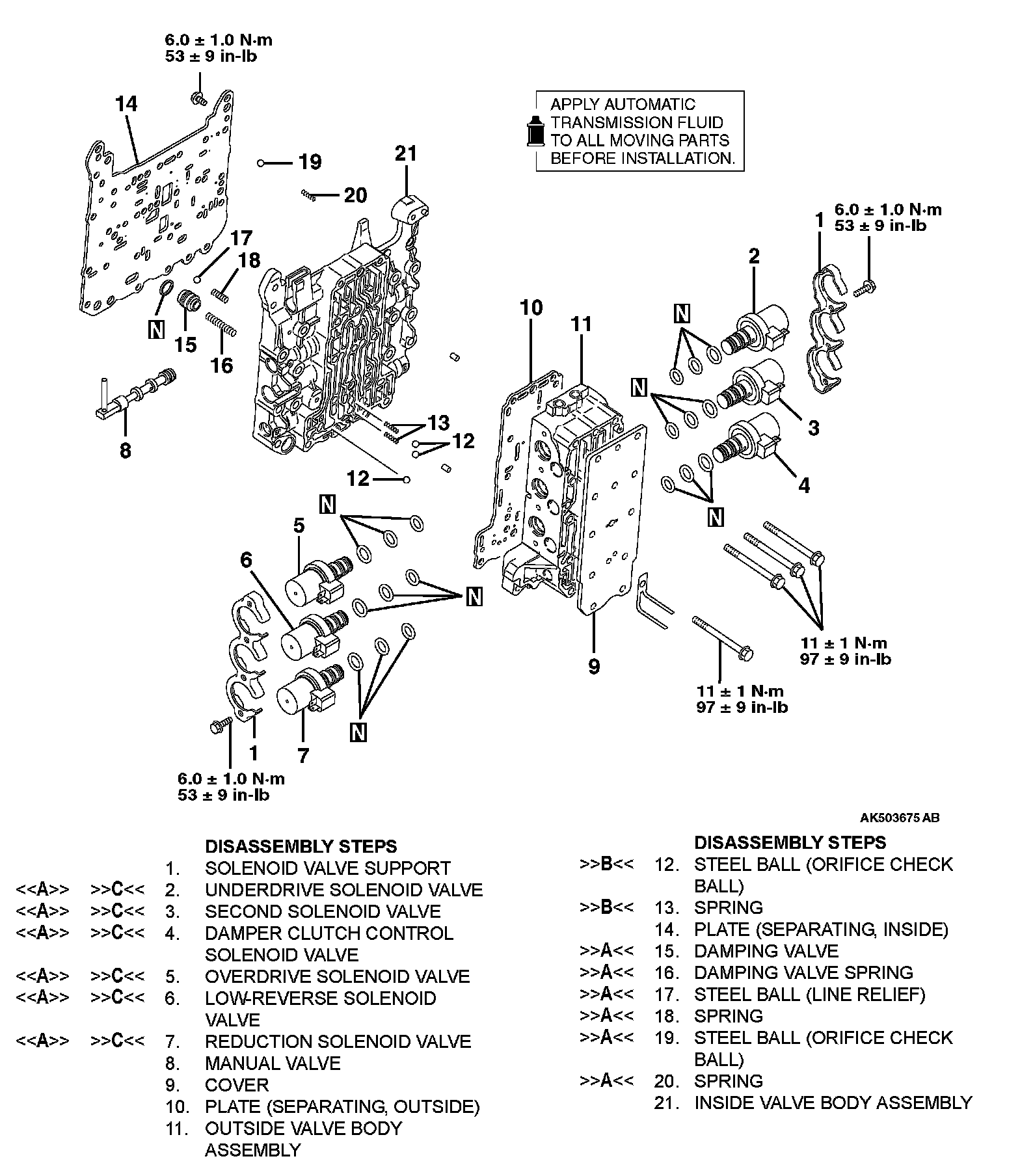

Disassembly Steps 1-21:

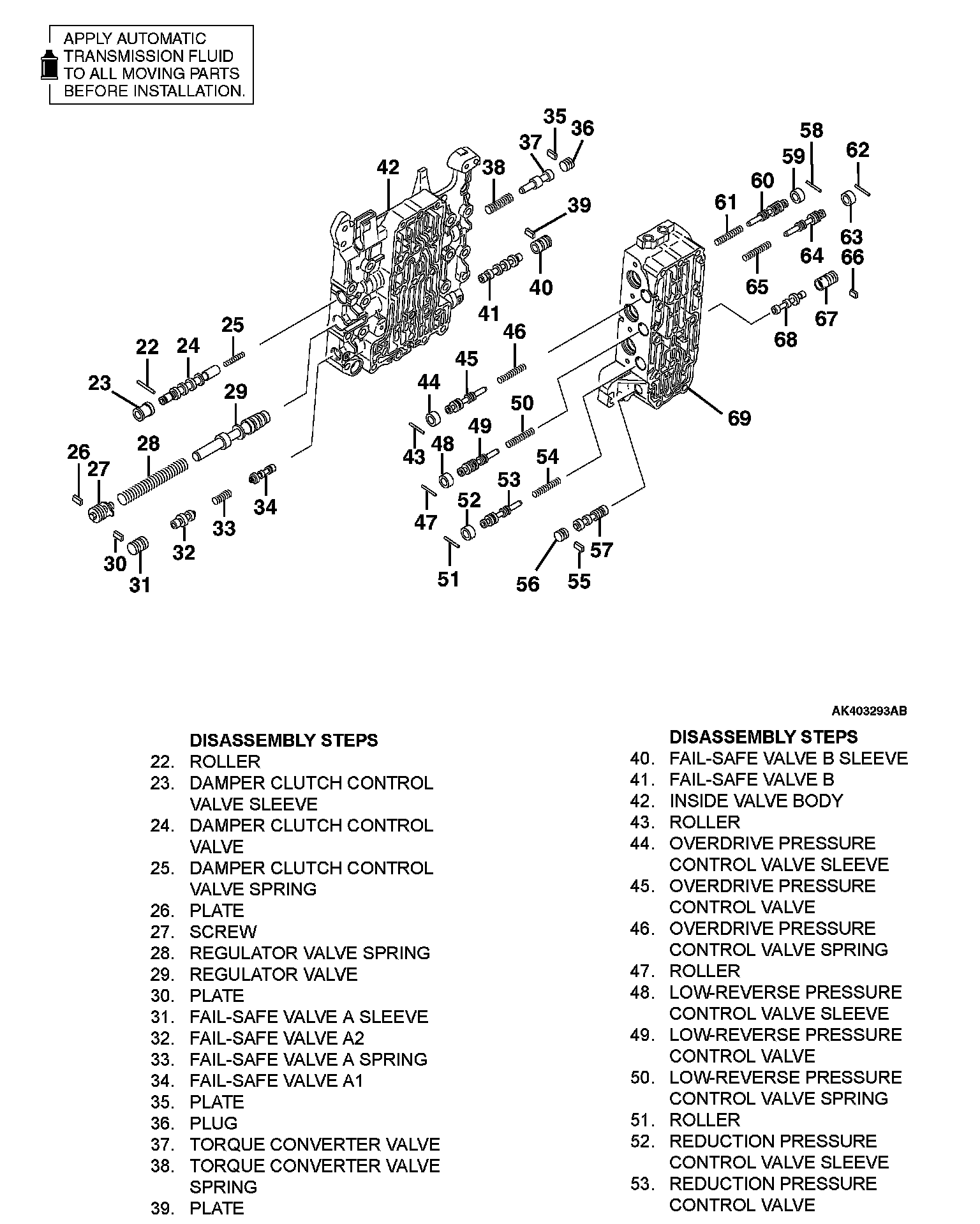

Disassembly Steps 22-53:
