Shifter A/T: Service and Repair
DISASSEMBLY AND ASSEMBLY

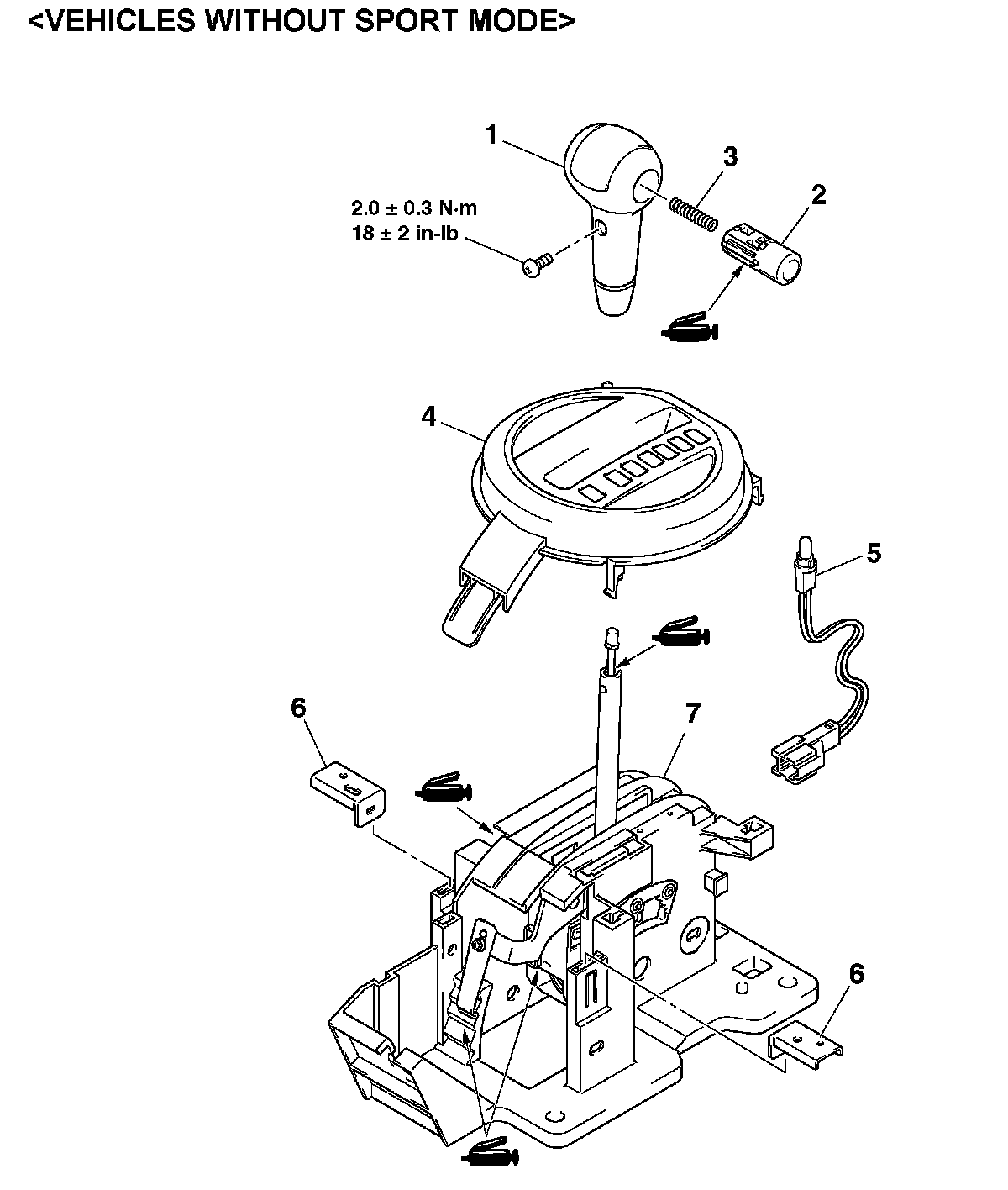

[VEHICLES WITHOUT SPORT MODE]

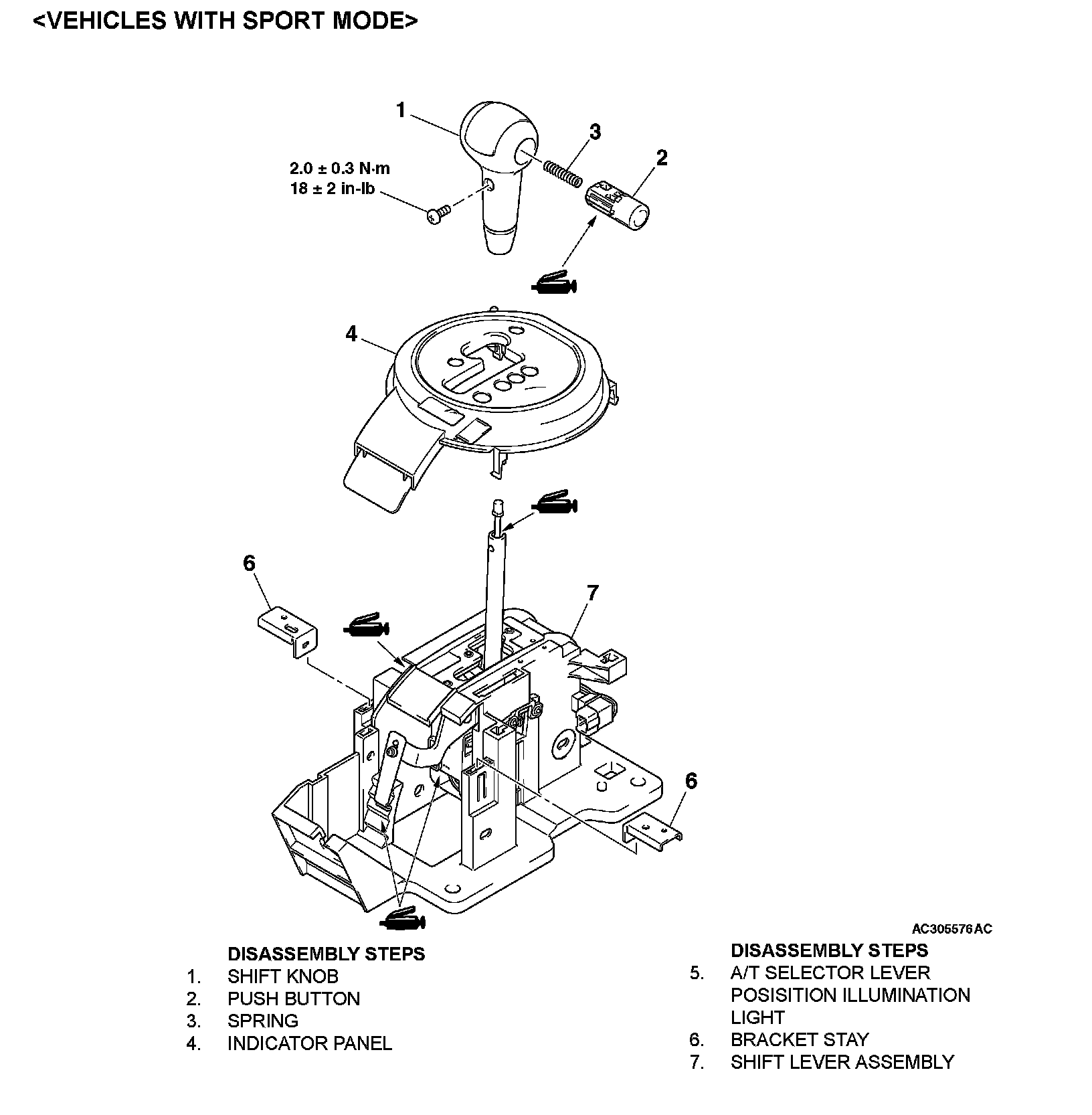

[VEHICLES WITH SPORT MODE]
Disassembly Steps 1-7:
