Steering Mounted Controls Assembly: Testing and Inspection

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

INSPECTION

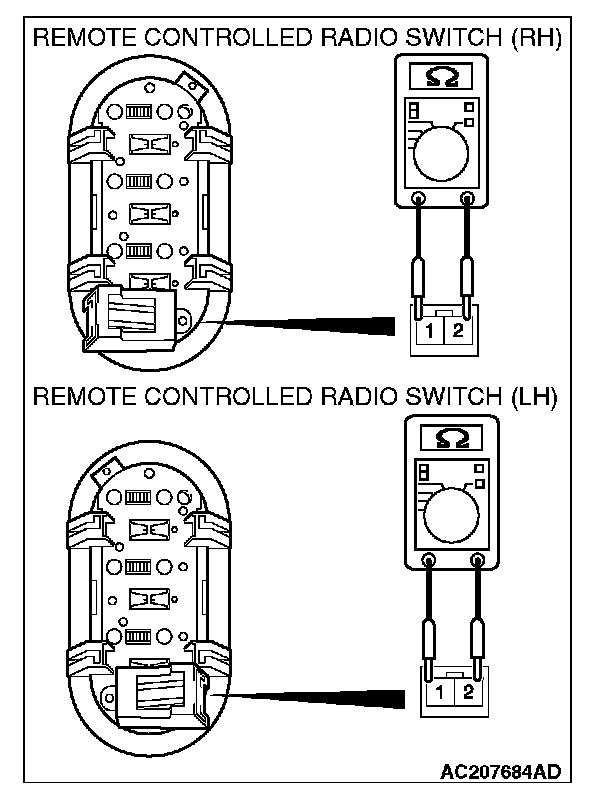

REMOTE CONTROLLED RADIO SWITCH CONTINUITY CHECK

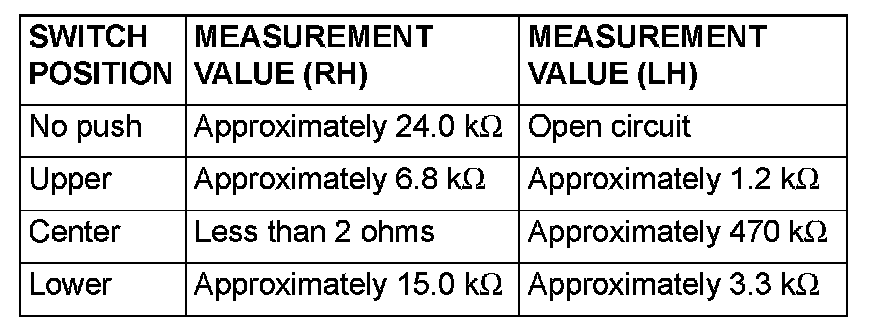

Use an ohmmeter to measure the resistance value between the terminal.
