Brake Master Cylinder: Service and Repair

MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION: Do not touch the push rod in the brake booster because it is already adjusted.

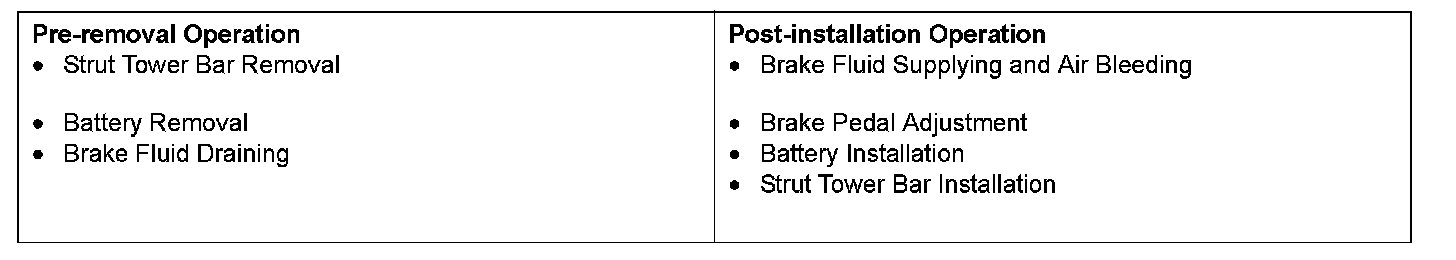

Pre-removal & Post-installation Operation:

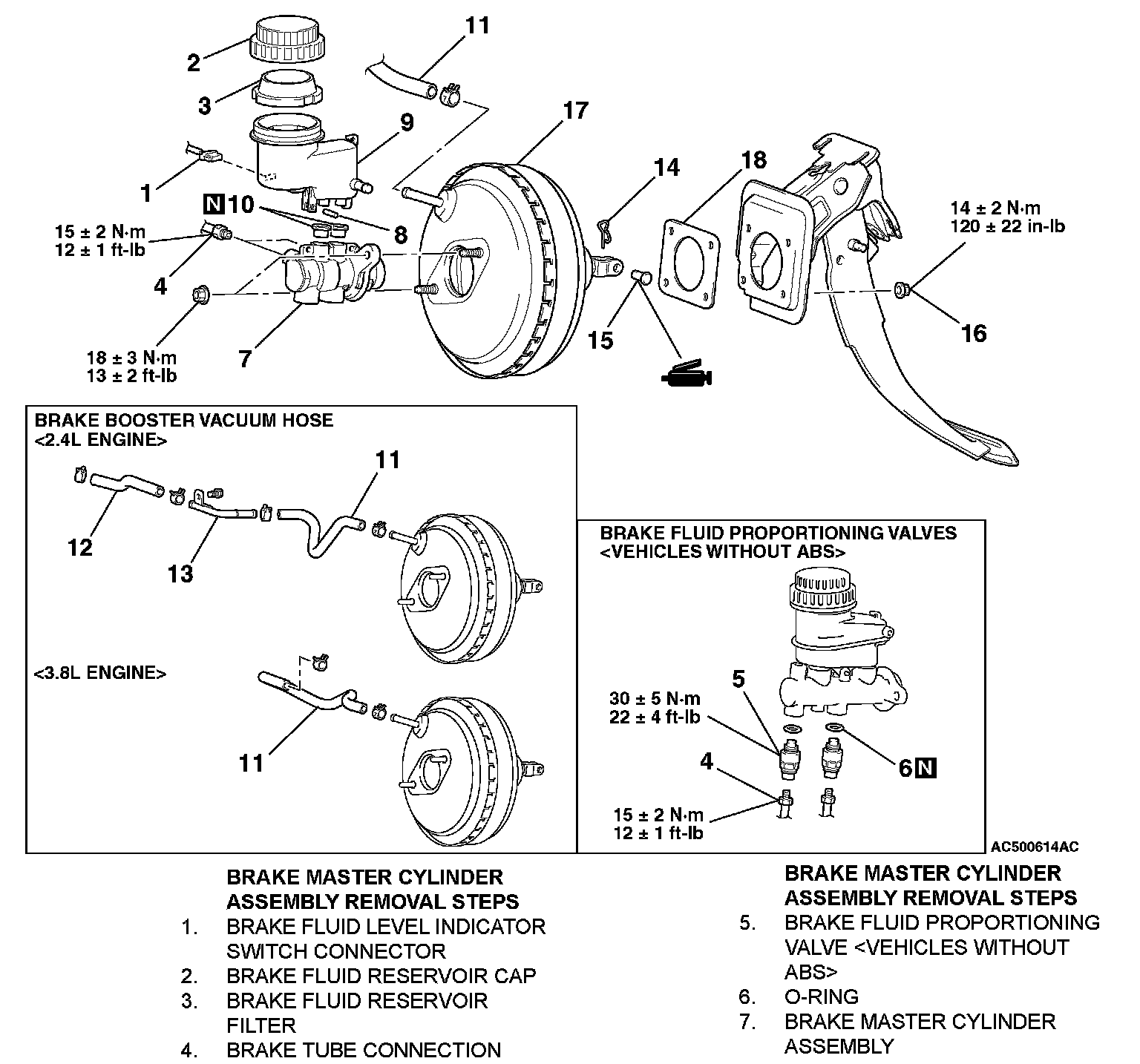

Removal Steps 1-7:

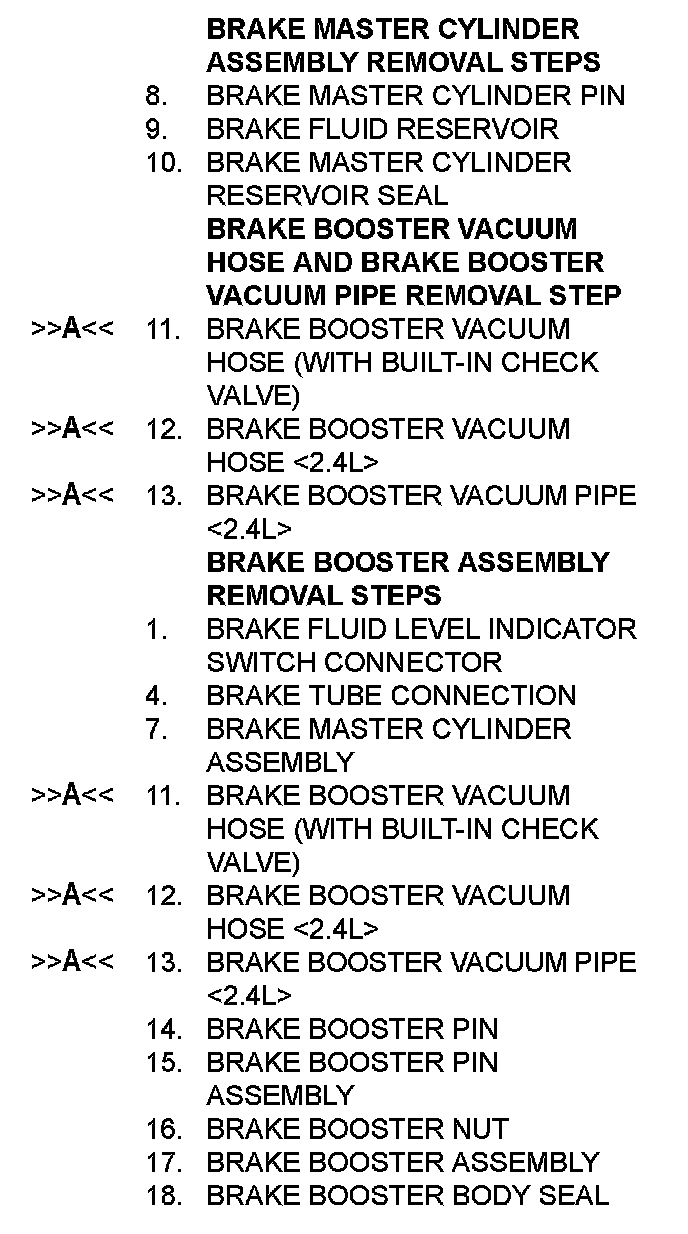

Brake Master Cylinder Assembly Removal Steps 8-13, Brake Booster Assembly Removal Steps 1-18:

INSTALLATION SERVICE POINTS

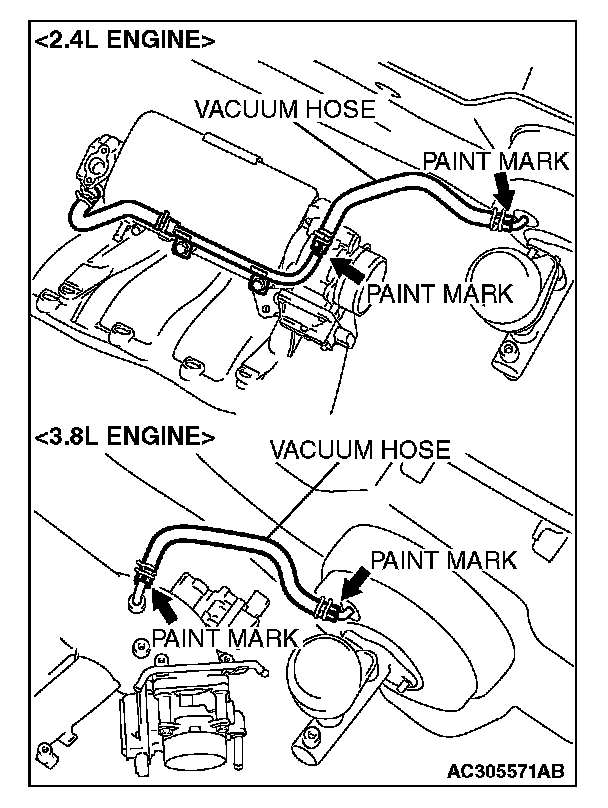

]]A[[ BRAKE BOOSTER VACUUM HOSE CONNECTION





Insert vacuum hose with its paint mark facing upward.
