Component Tests and General Diagnostics

CAMERA SETTING

With the service mode on the multi-center display, the guide markers can be adjusted.

Guide marker display position adjustment

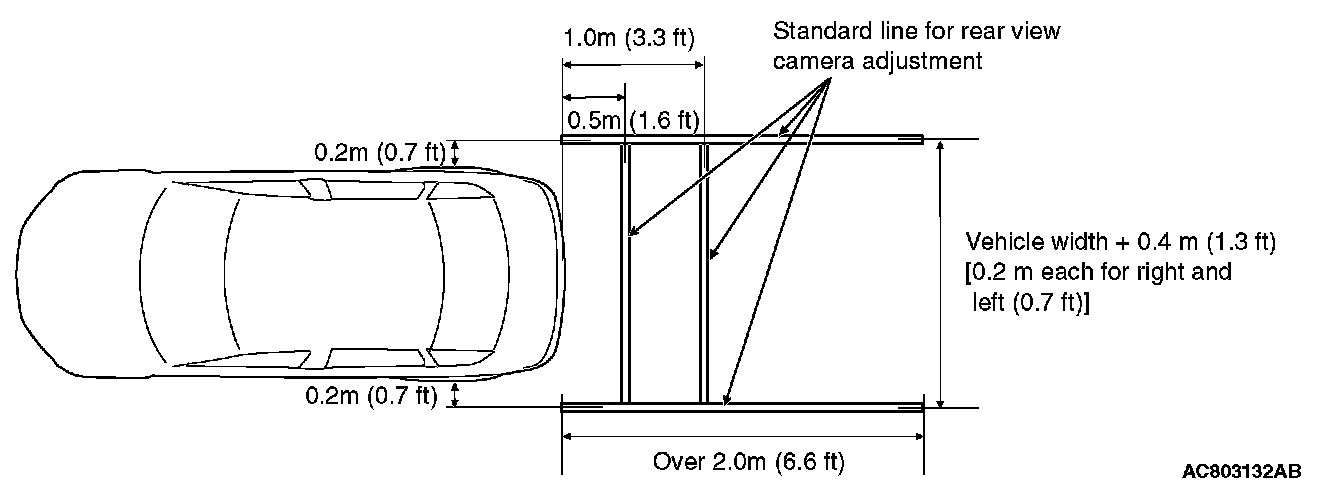

1. Set the standard lines for the rear view camera adjustment on the ground.







2. Start the service mode on the multi-center display. Scan Tool Testing and Procedures

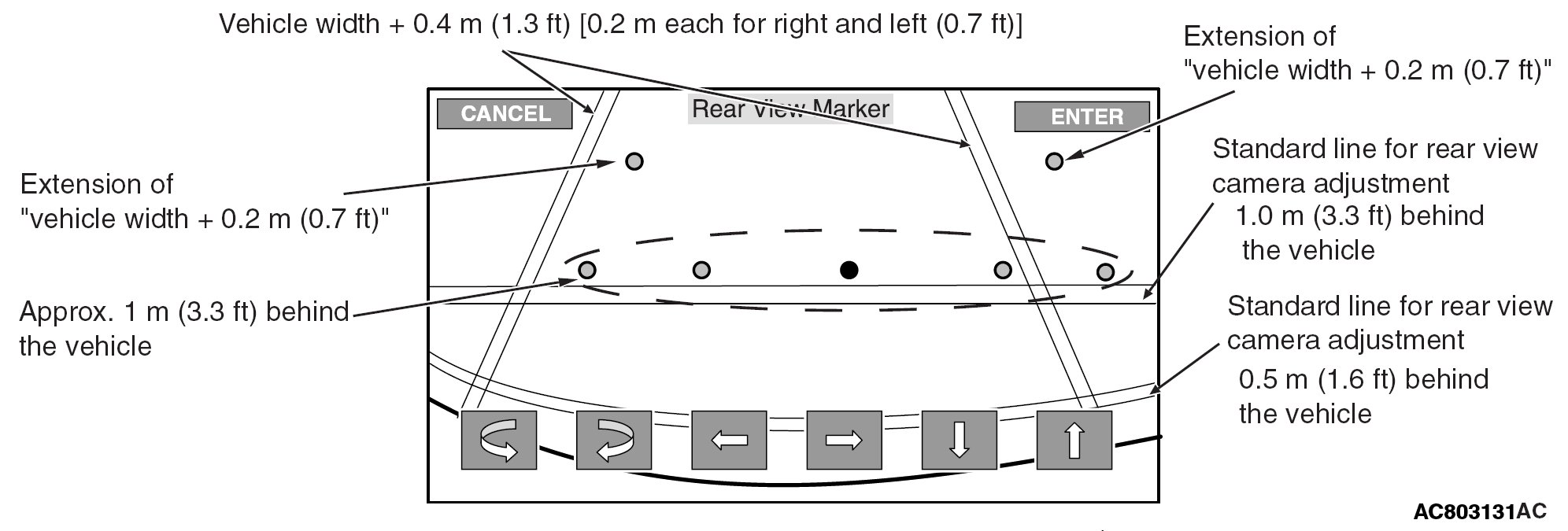

3. Select "Camera" on the DISPLAY CHECK screen to display the rear view marker screen.







4. Select and adjust the arrows* (touch panel) on the screen to set the rear view markers on the standard lines for rear view camera adjustment.

NOTE: *: Five adjustment levels are provided for each arrow.

5. After adjustment, select [ENTER] to save the setting.
