Automatic Transmission Control Component Layout
Automatic Transmission Control Component Layout
ON-VEHICLE SERVICE

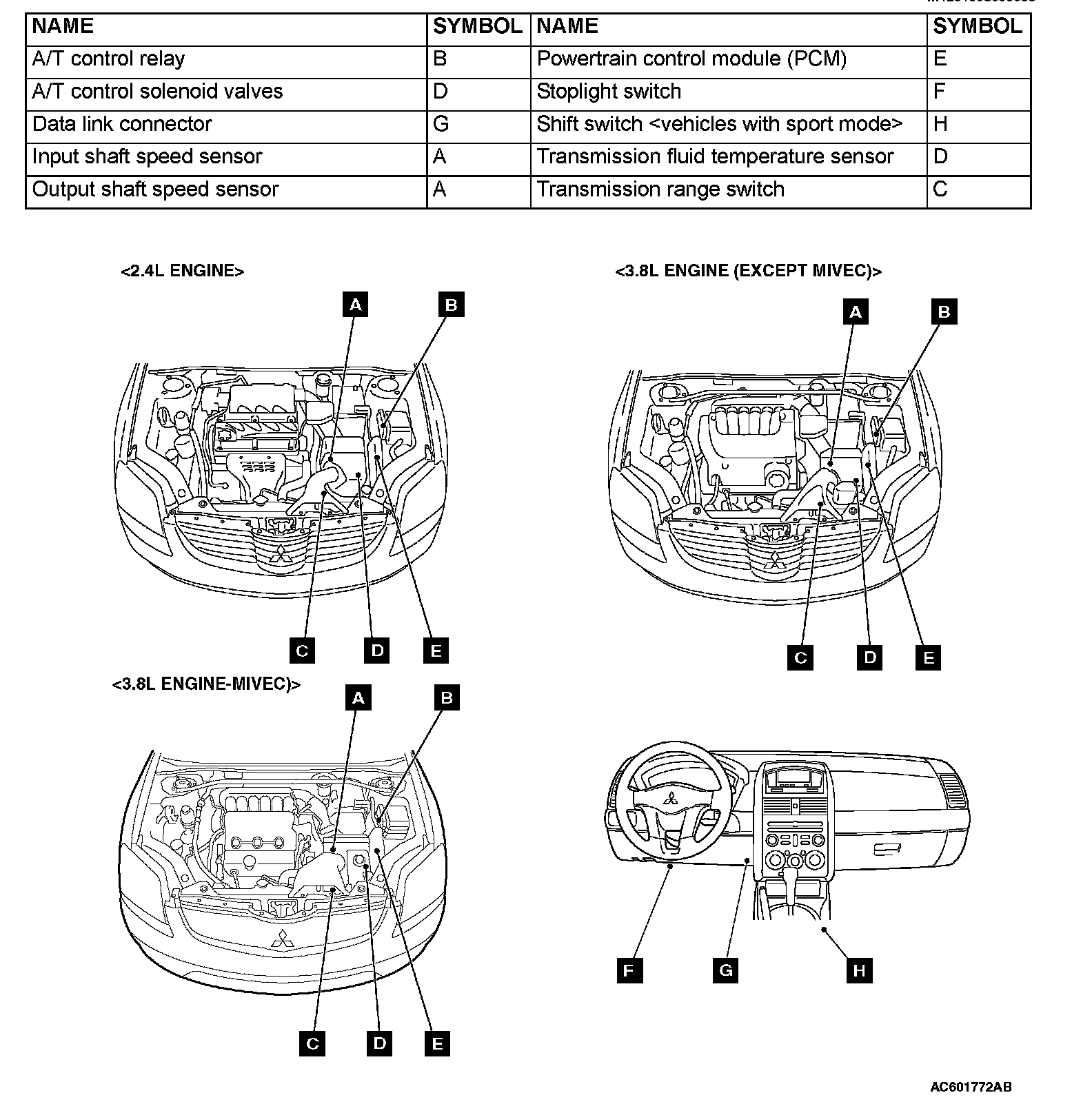

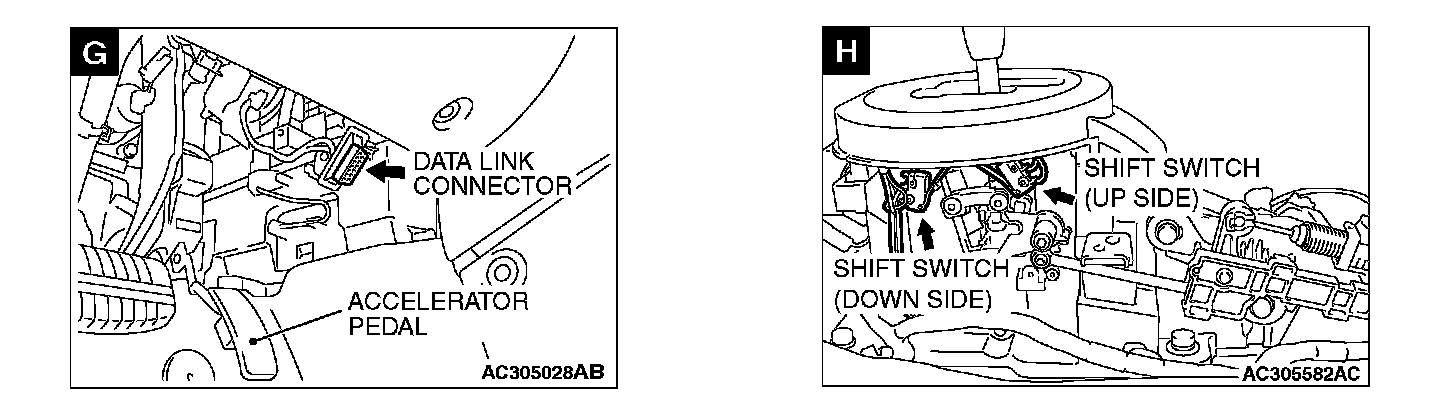

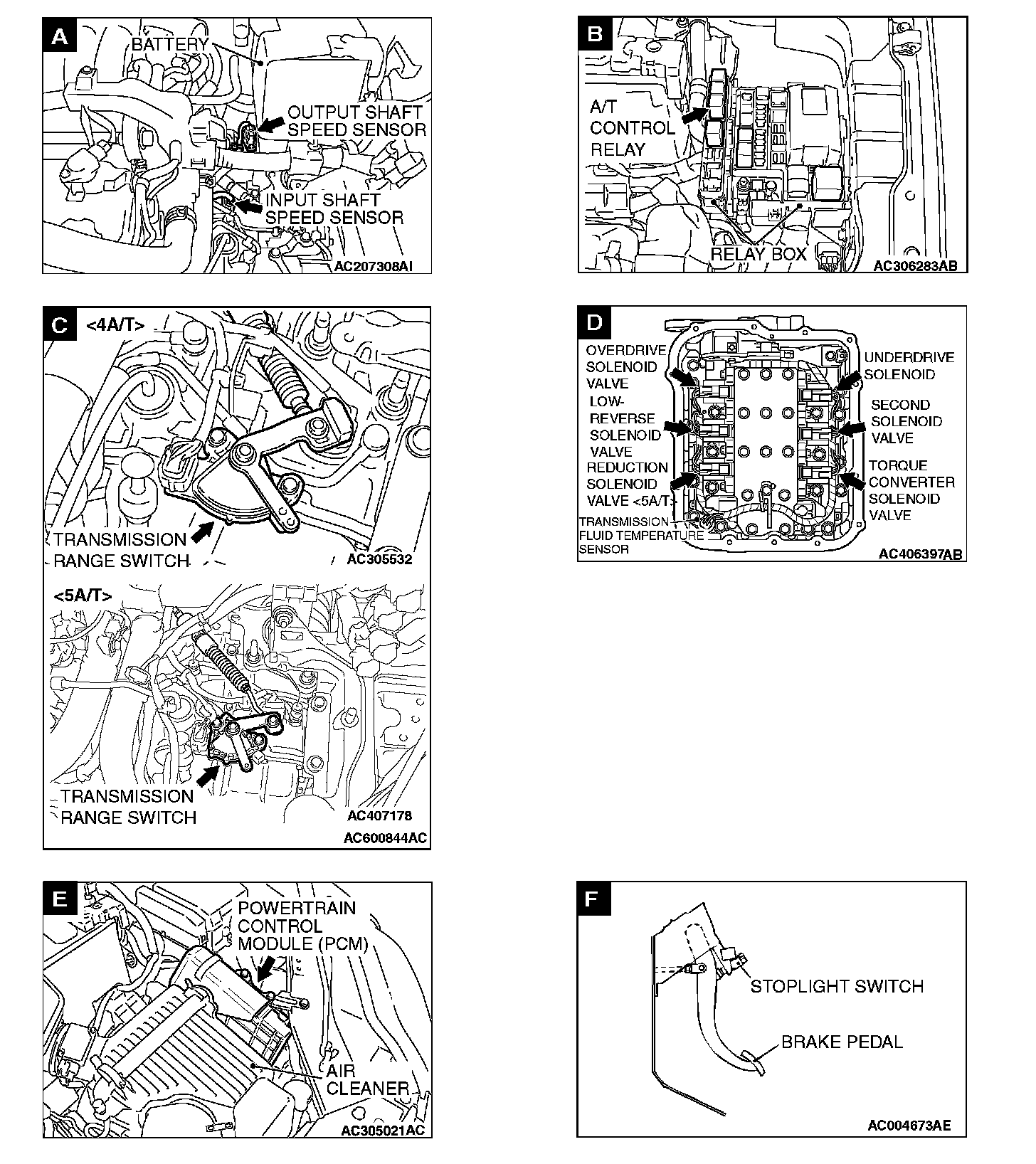

A/T CONTROL COMPONENT LAYOUT
