Engine - Dual Stage Air Intake Manual Revisions
No: TSB-08-13-010DATE: April, 2008
MODEL: 2008 Galant
SUBJECT:
ELIMINATION OF DUAL STAGE AIR INTAKE - SERVICE MANUAL REVISION
PURPOSE
Due to the mid-year elimination of the dual stage air intake system, changes reflecting production range are necessary to the applicable pages of the service manual. This Technical Service Bulletin shows corrected and added information related to those changes.
AFFECTED VEHICLE(S)
2008 Galant 3.8L MIVEC V-6 and Dual Stage Air Intake

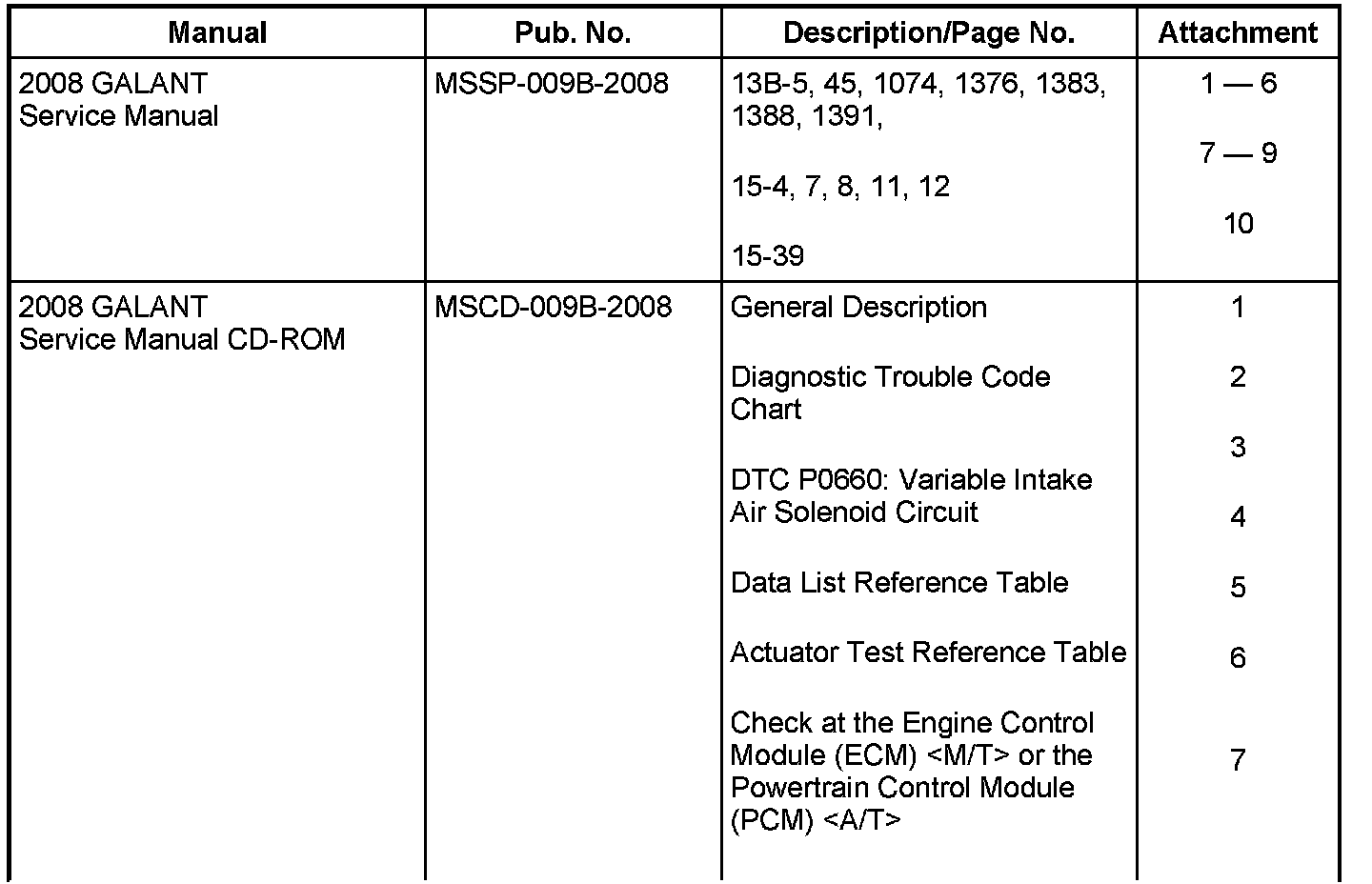

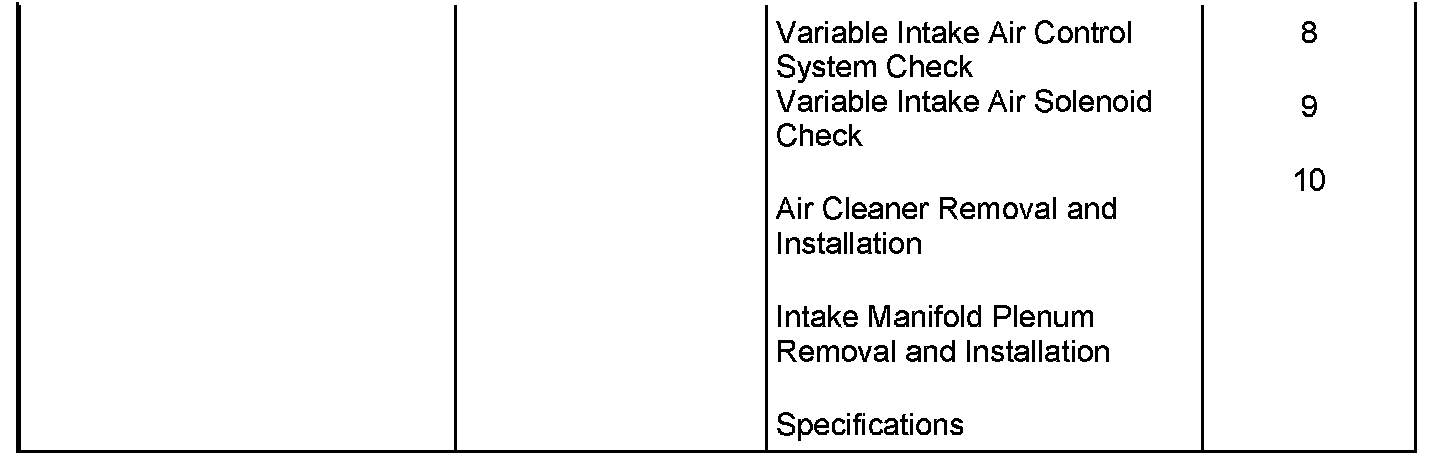

APPLICABLE MANUAL(S)

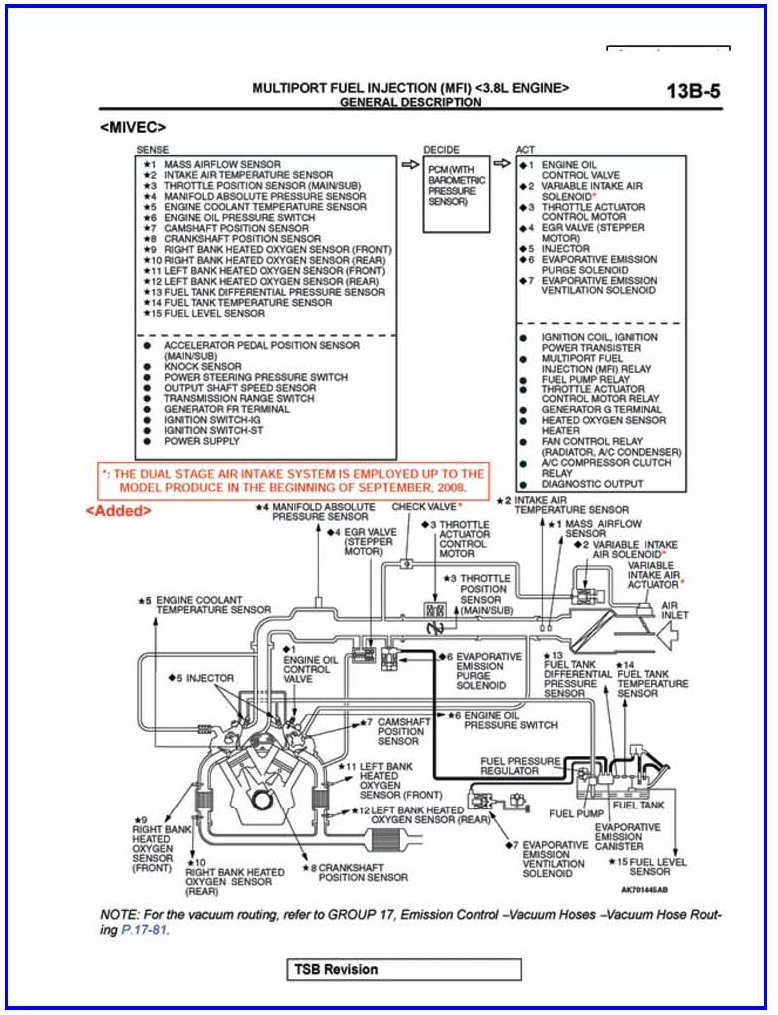

Revised Service Manual Page 13B-5

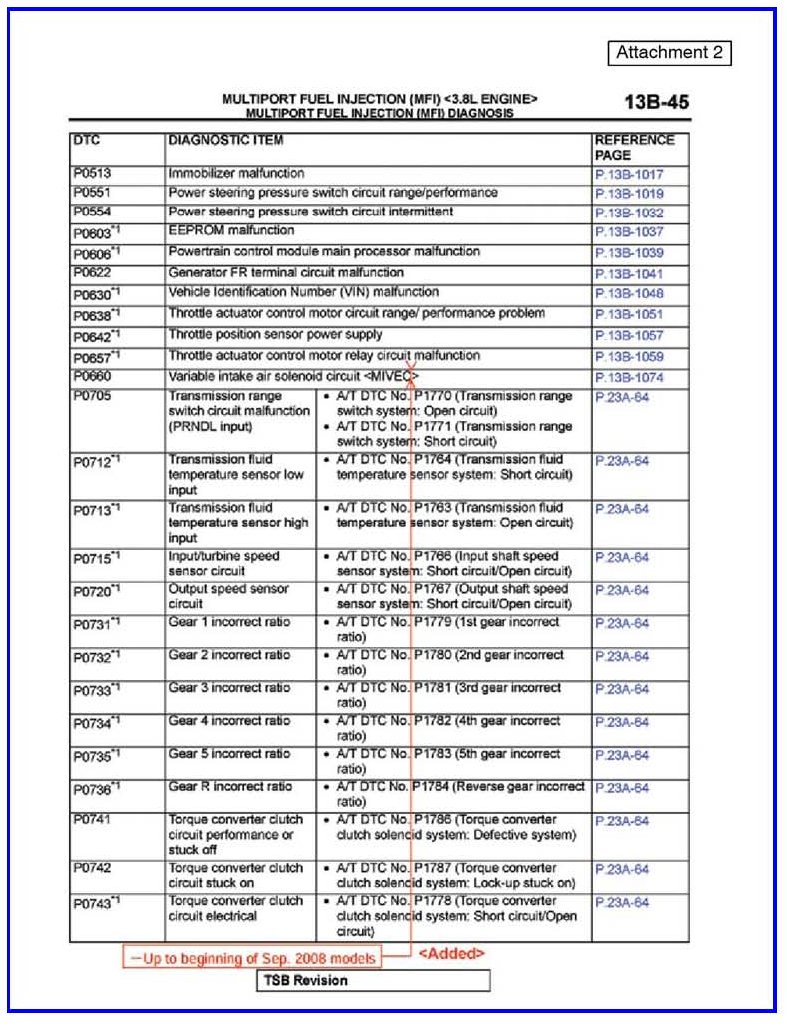

Revised Service Manual Page 13B-45
Revised Service Manual Page 13B-1074

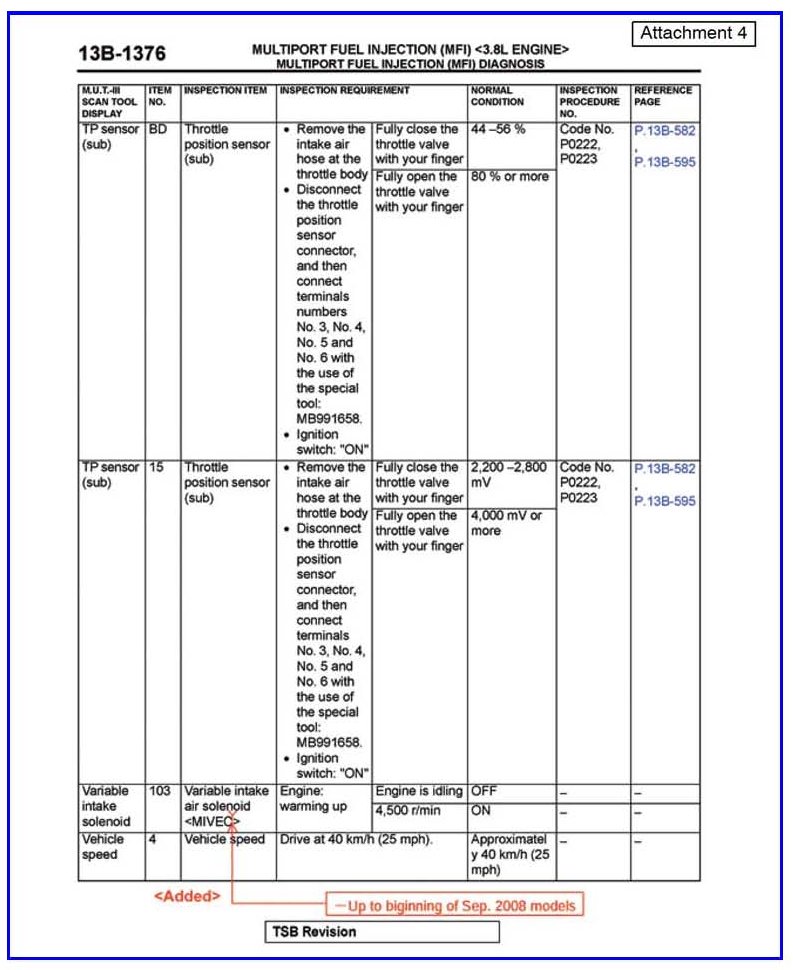

Revised Service Manual Page 13B-1376

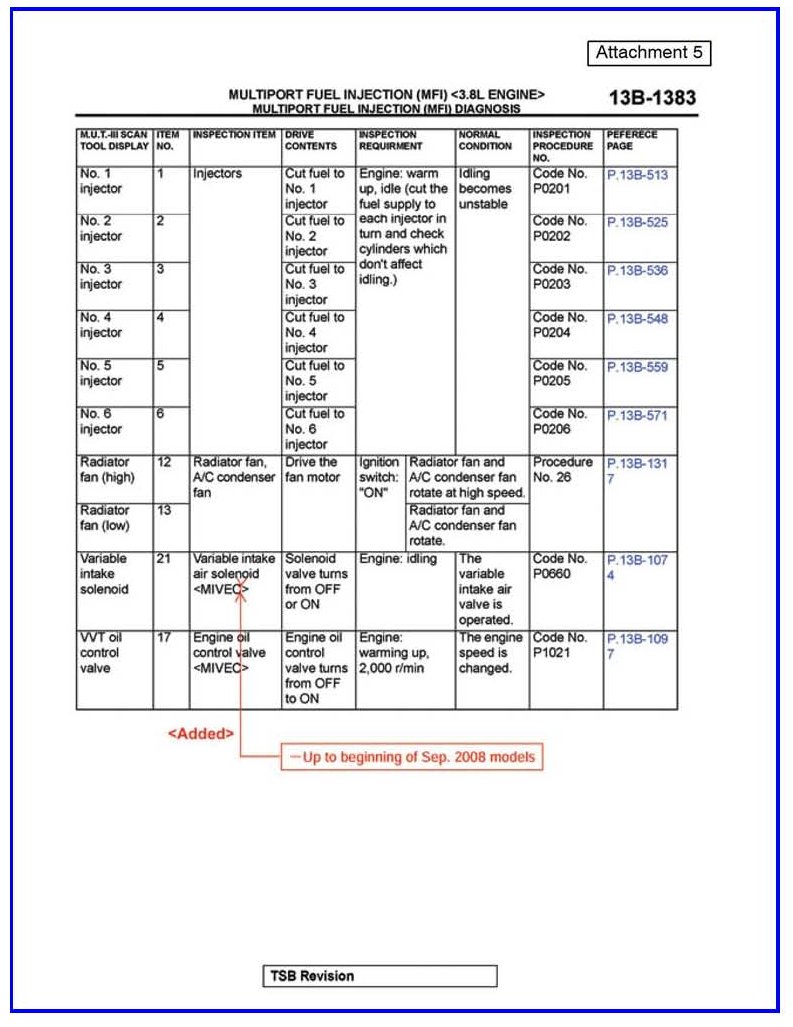

Revised Service Manual Page 13B-1383

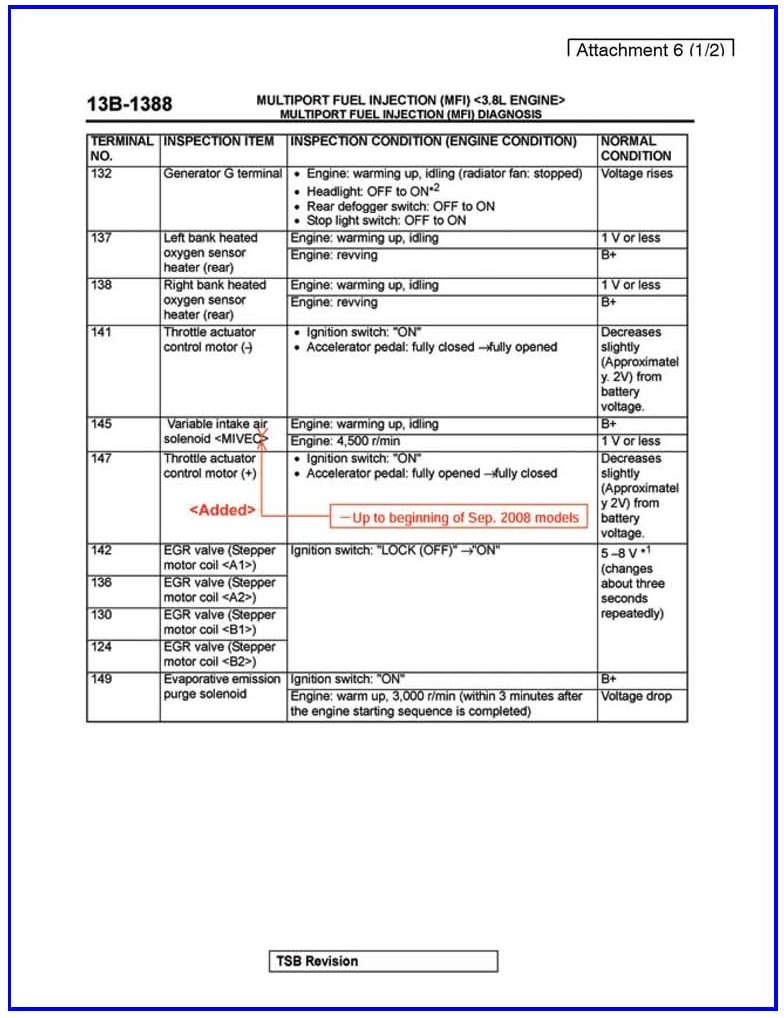

Revised Service Manual Page 13B-1388

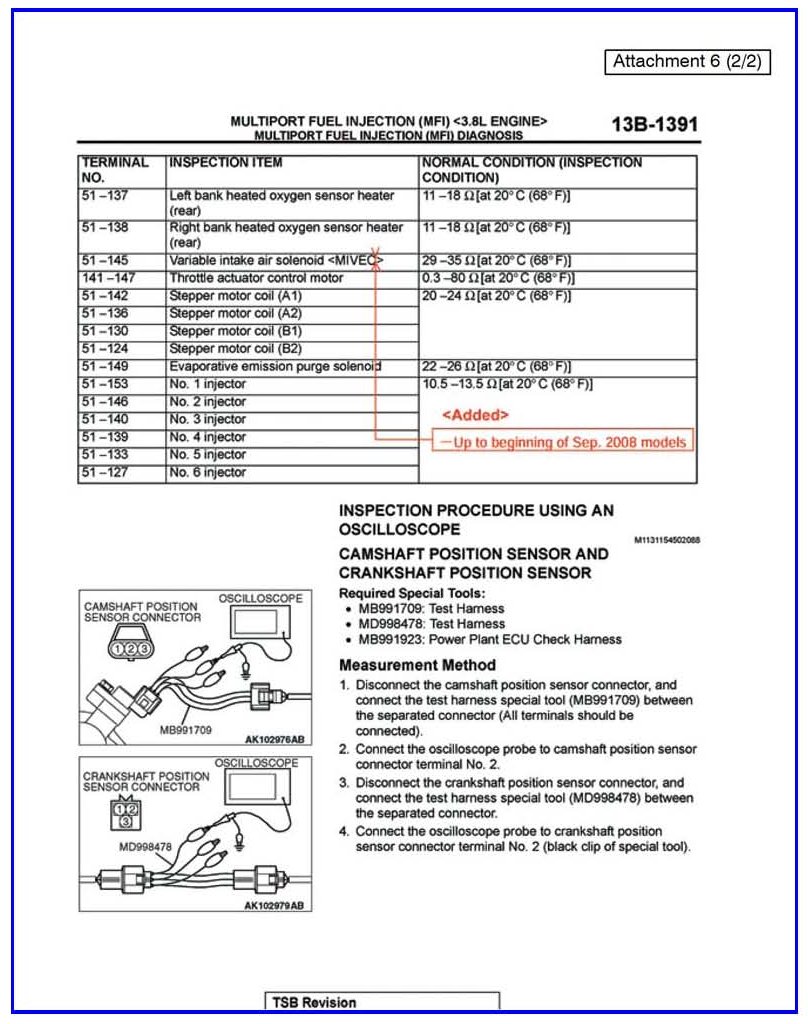

Revised Service Manual Page 13B-1391

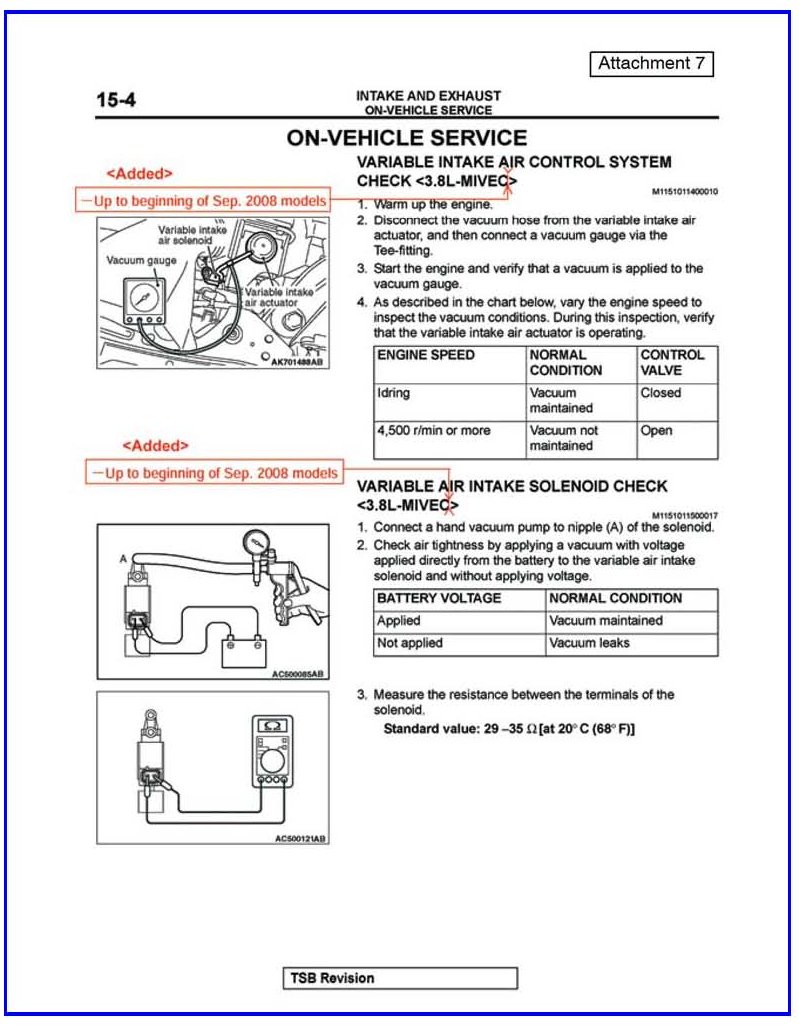

Revised Service Manual Page 15-4

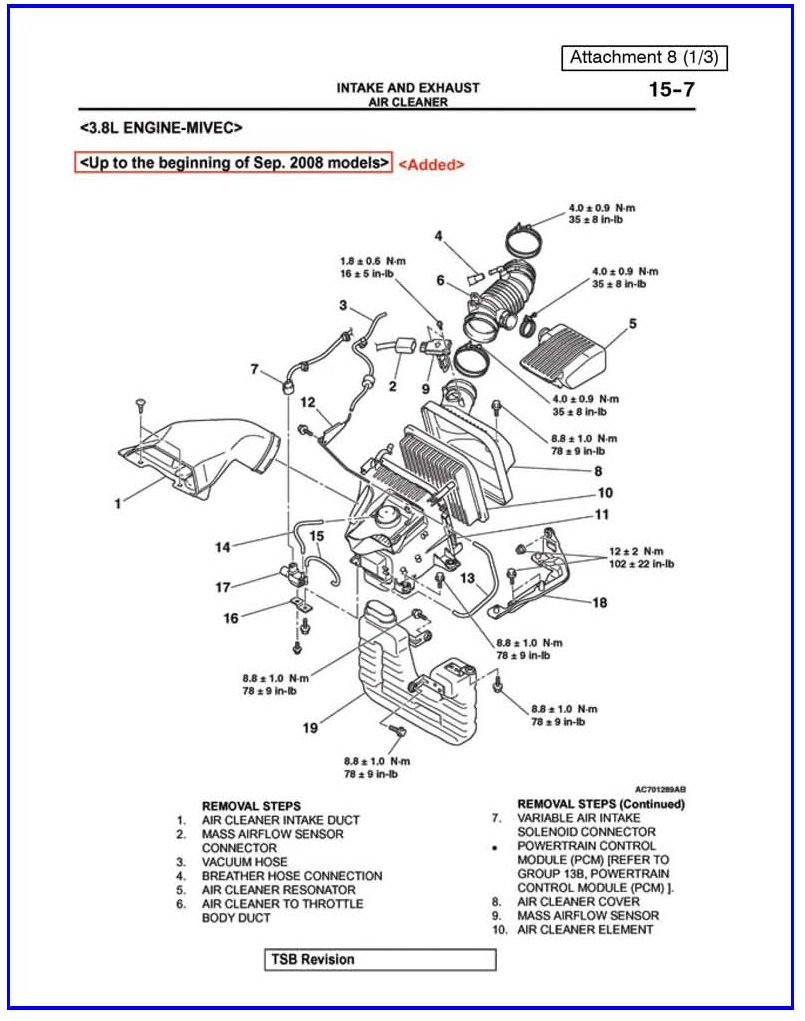

Revised Service Manual Page 15-7

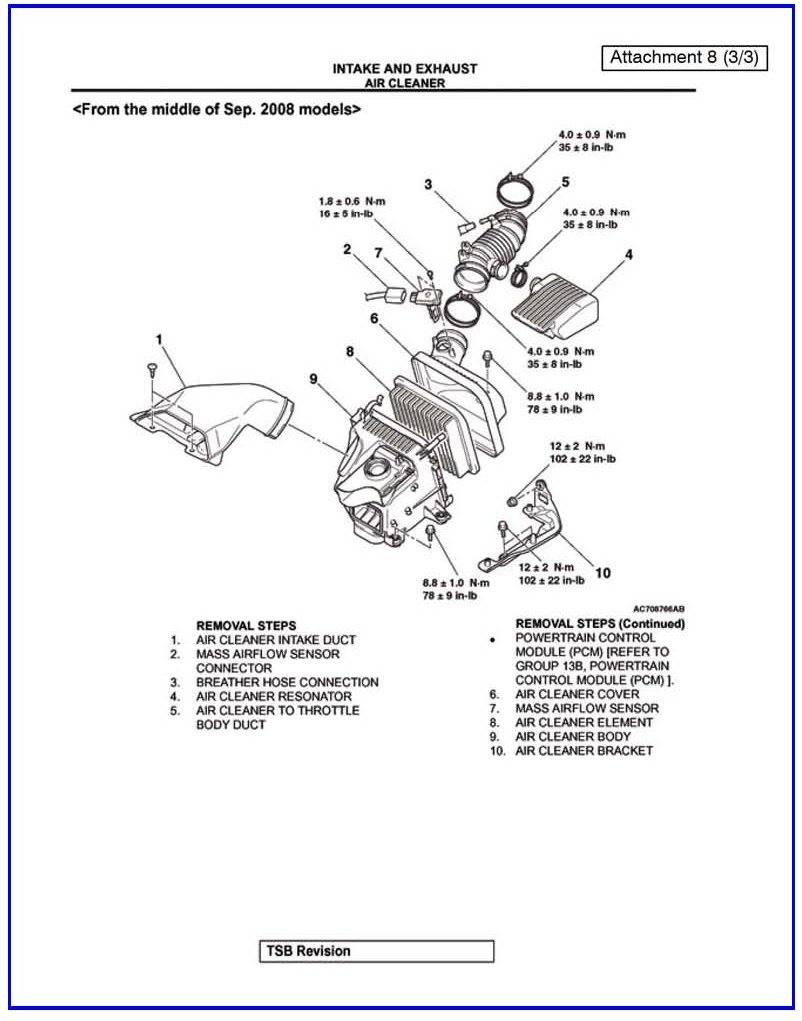

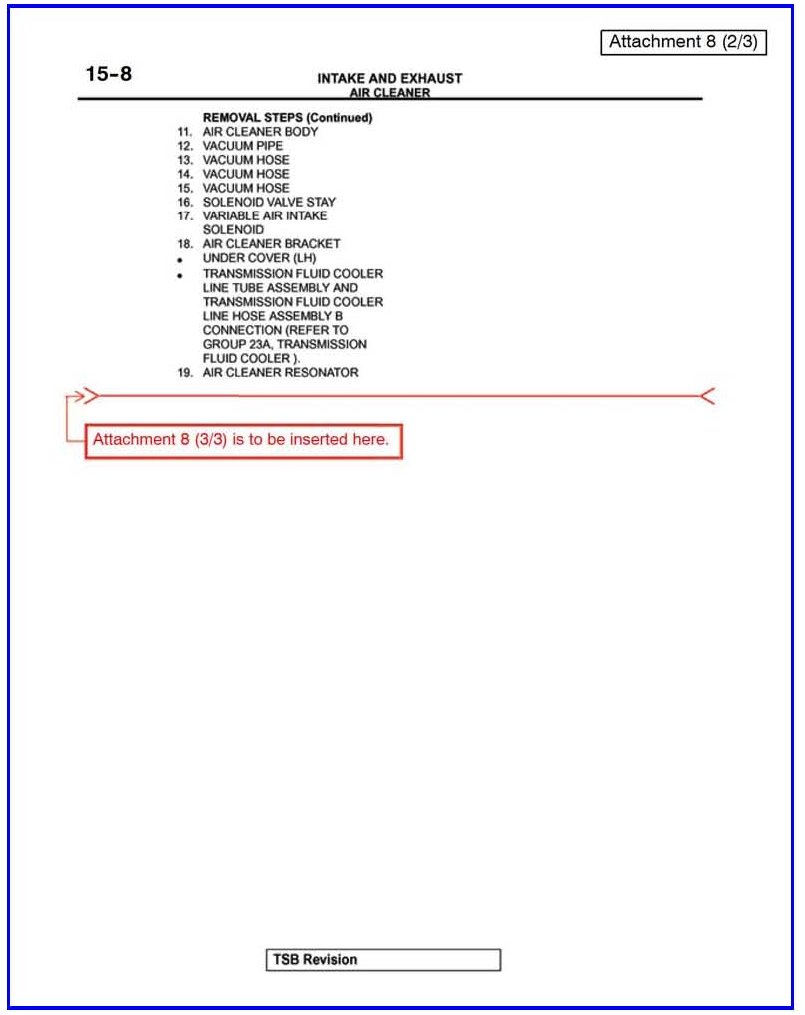

Revised Service Manual Page 15-8

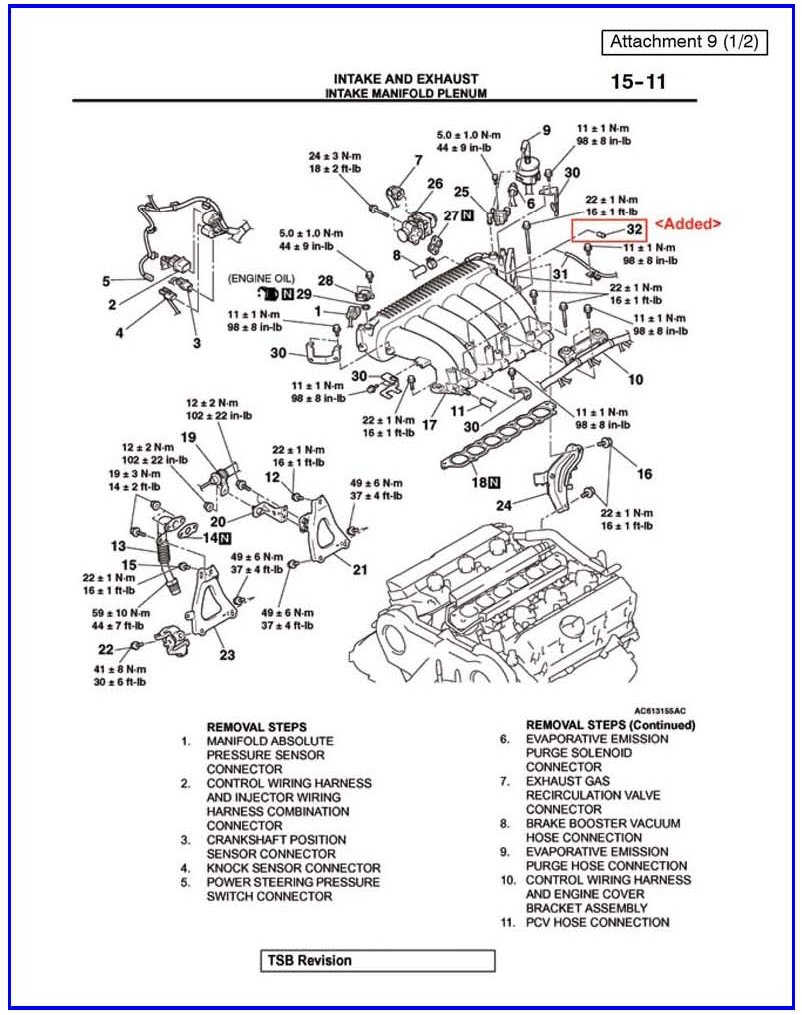

Revised Service Manual Page 15-11

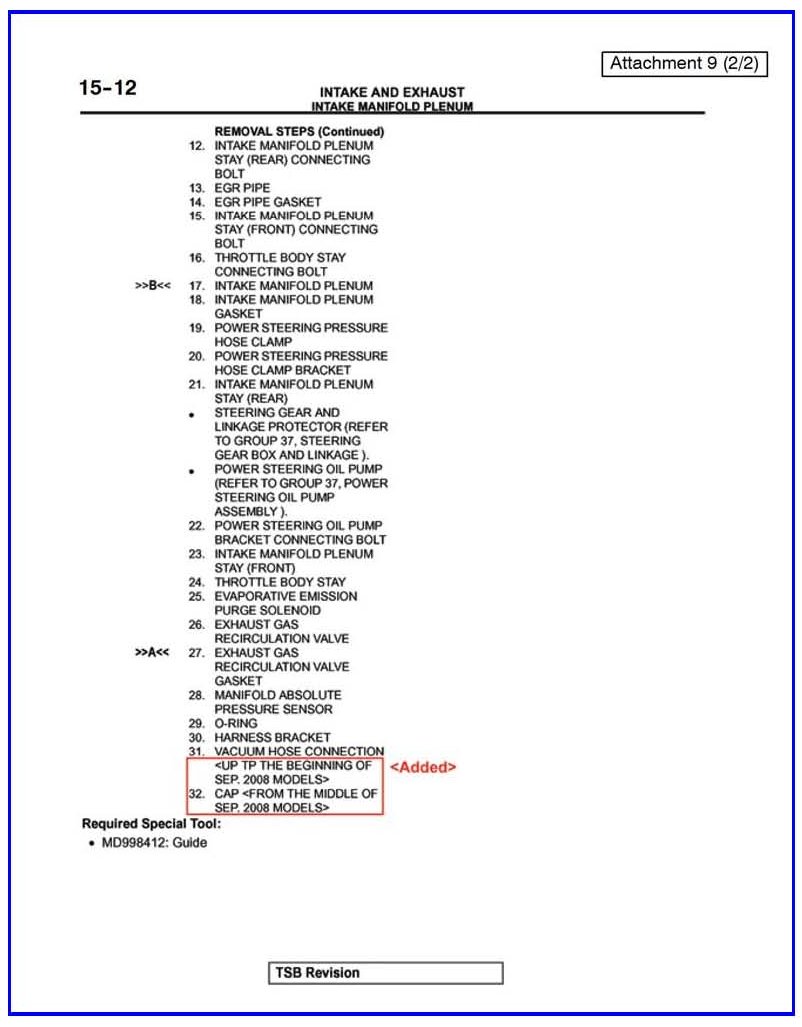

Revised Service Manual Page 15-12

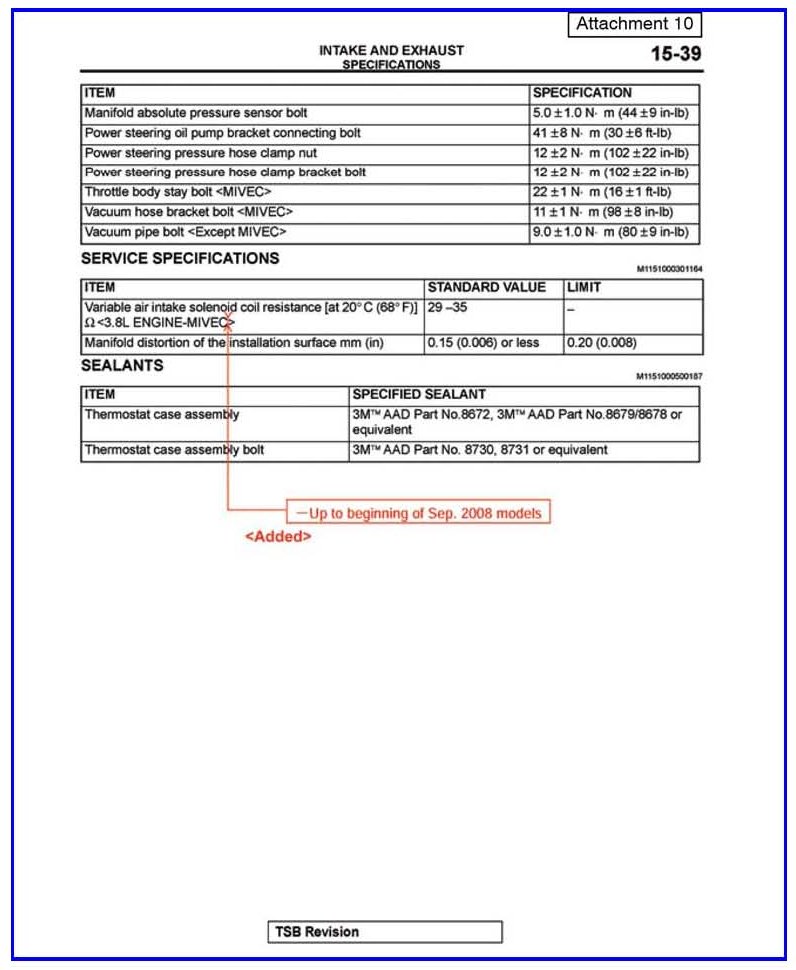

Revised Service Manual Page 15-39
