Non-MIVEC

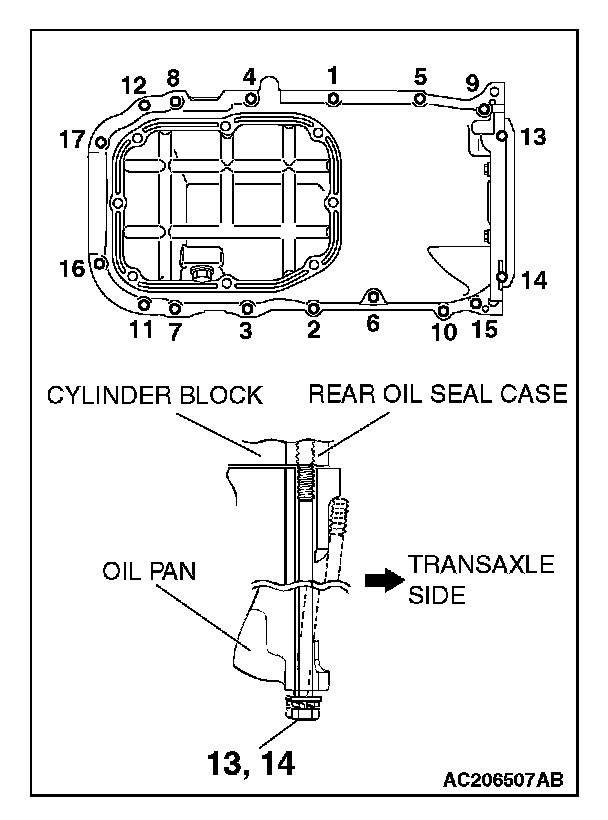

UPPER OIL PAN





Tighten the bolts in order of the numbers shown in the illustration.
Oil pan, upper bolt 9.0 ± 3.0 Nm (80 ± 26 in-lb)

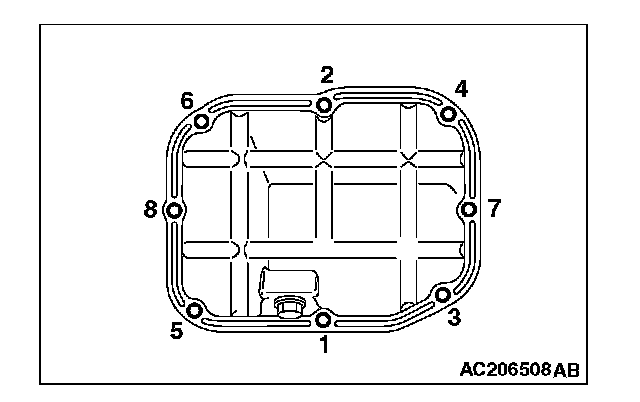

LOWER OIL PAN





Tighten the bolts in order of the numbers shown in the illustration.
Oil pan, lower bolt 11 ± 1 Nm (98 ± 8 in-lb)
