Automatic Transmission/Transaxle
>>
Drive Shaft Oil Seal
>>
F5A5A
F5A5A

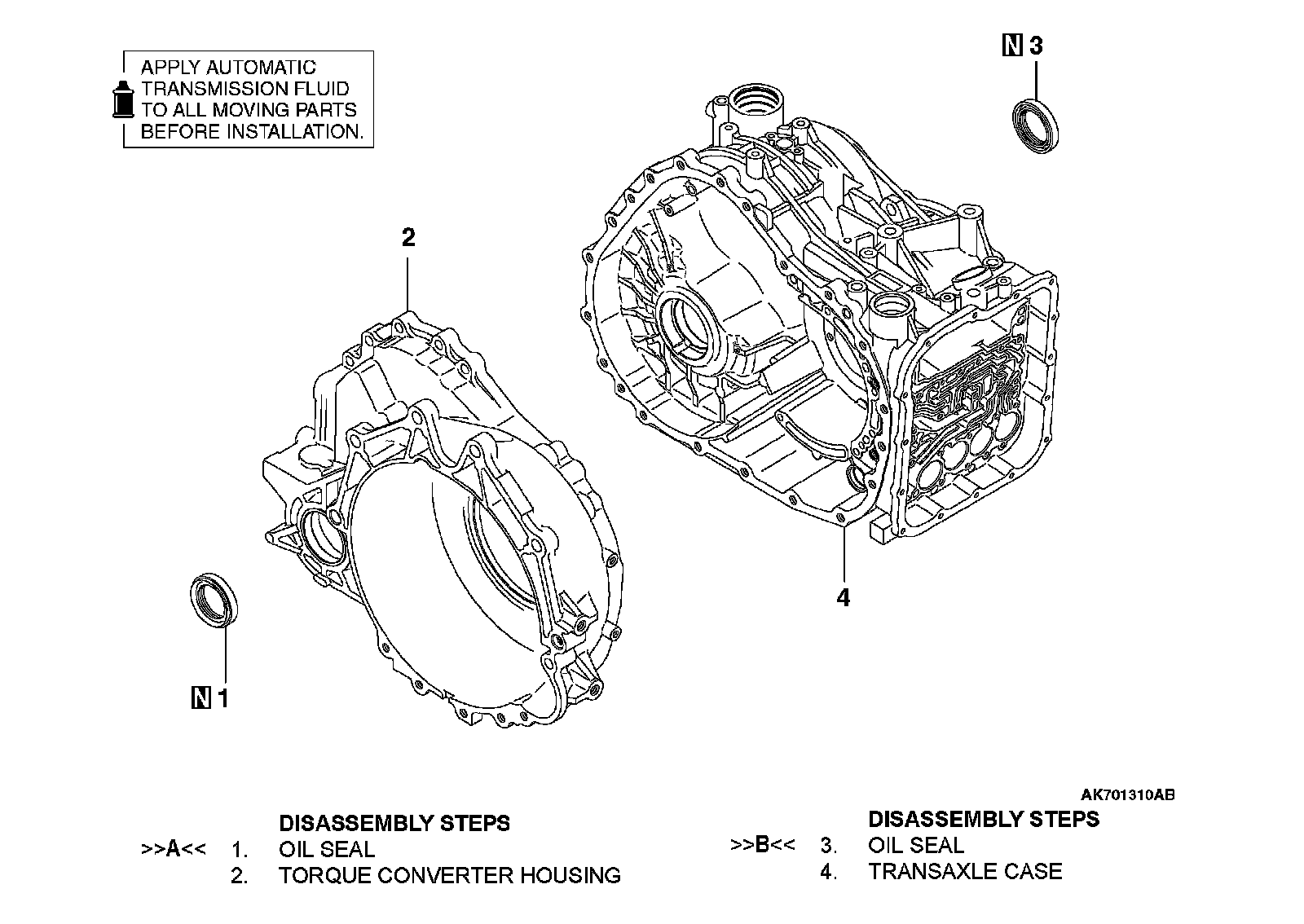

DRIVE SHAFT OIL SEAL
DISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-4:
