Automatic Transmission/Transaxle
>>
Drive Shaft Oil Seal
>>
F4A4B
F4A4B

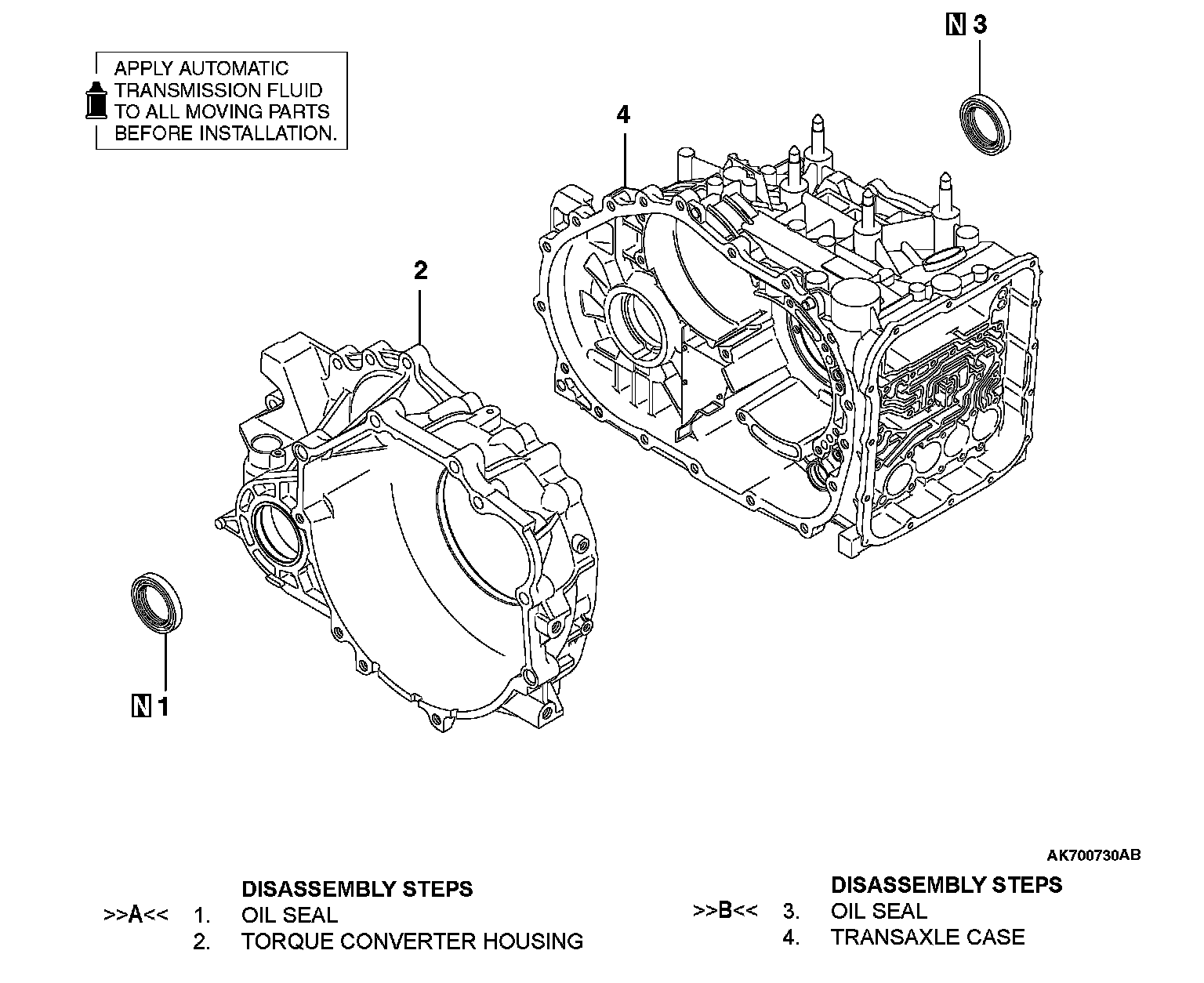

DRIVE SHAFT OIL SEAL
DISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-4:
