Home >> Mitsubishi >> 2007 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

CENTRALIZED RELAY

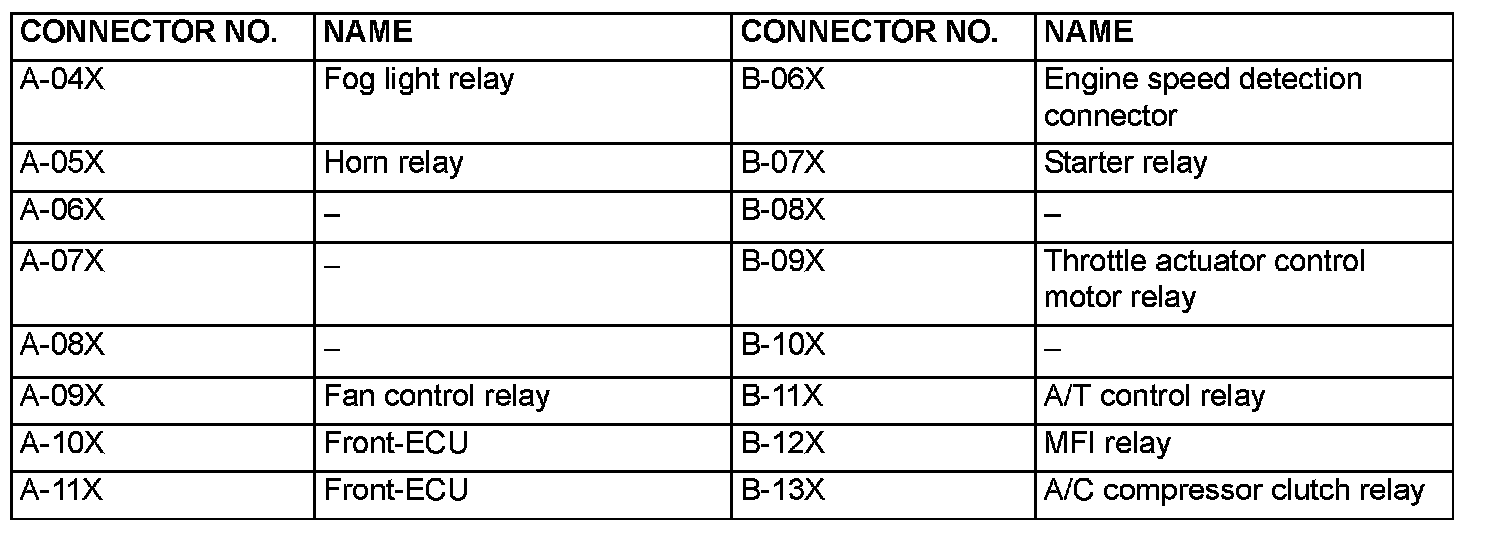

Application Table:

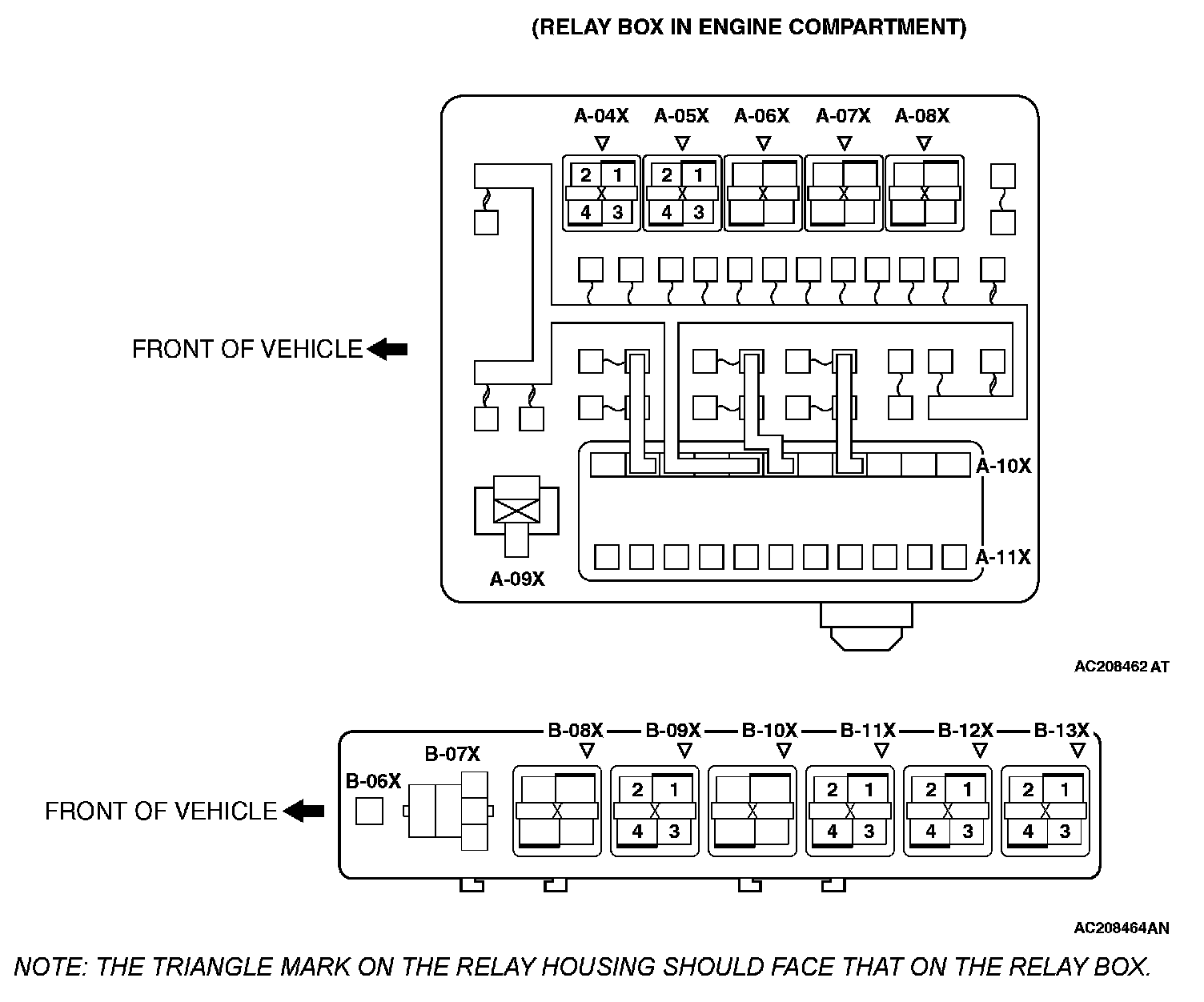

Location View:
