MIVEC

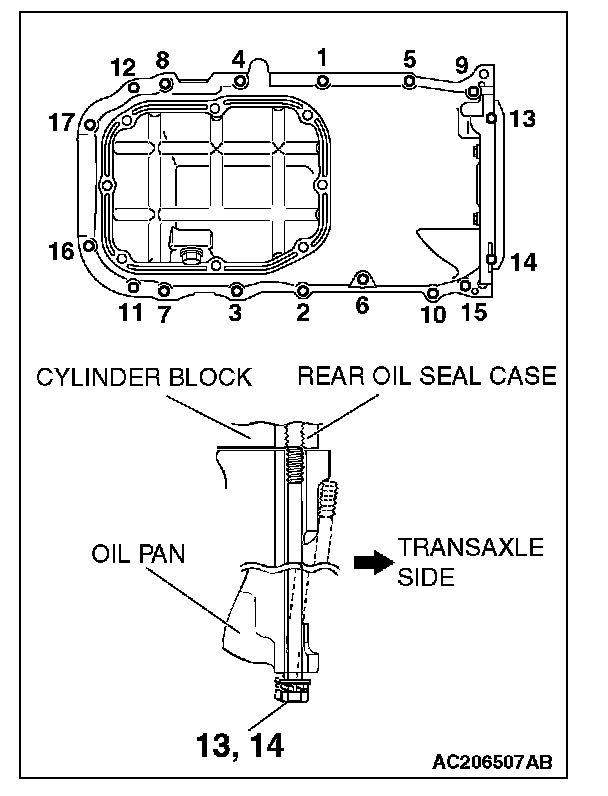

Upper Oil Pan Bolts 8.5 ± 3.5 Nm (76 ± 31 in-lb)





CAUTION: The bolt holes for bolts 13 and 14 in the illustration are cut away on the transaxle side. Be careful not to insert these bolts at an angle.

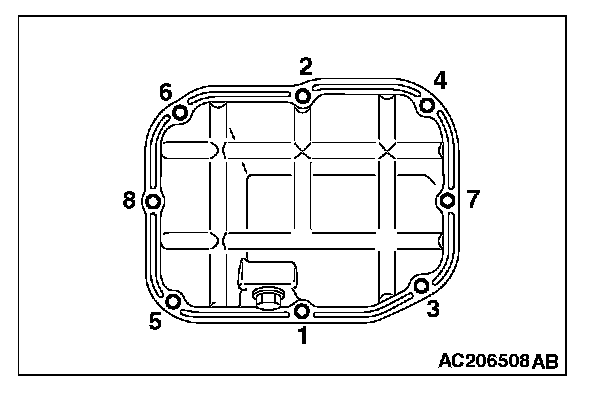

Lower oil pan bolts 11 ± 1 Nm (97 ± 9 in-lb)
