Seat Temperature Relay: Testing and Inspection

HEATED SEAT RELAY CONTINUITY CHECK






1. Remove the instrument lower cover.

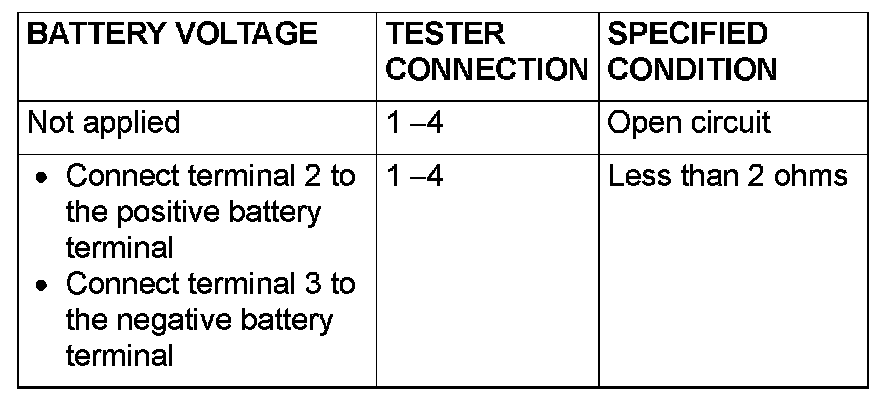

Heated Seat Relay Continuity Check:

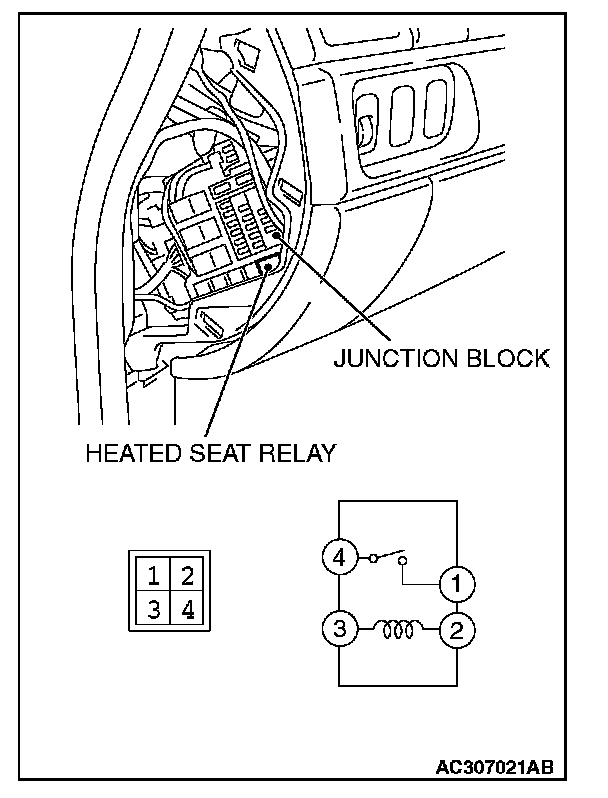

2. Remove the junction block mounting and slide the junction block to check the heated seat.
