Removal and Replacement

EGR VALVE GASKET

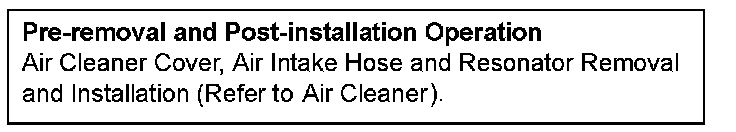

Pre-removal And Post-installation Operation:

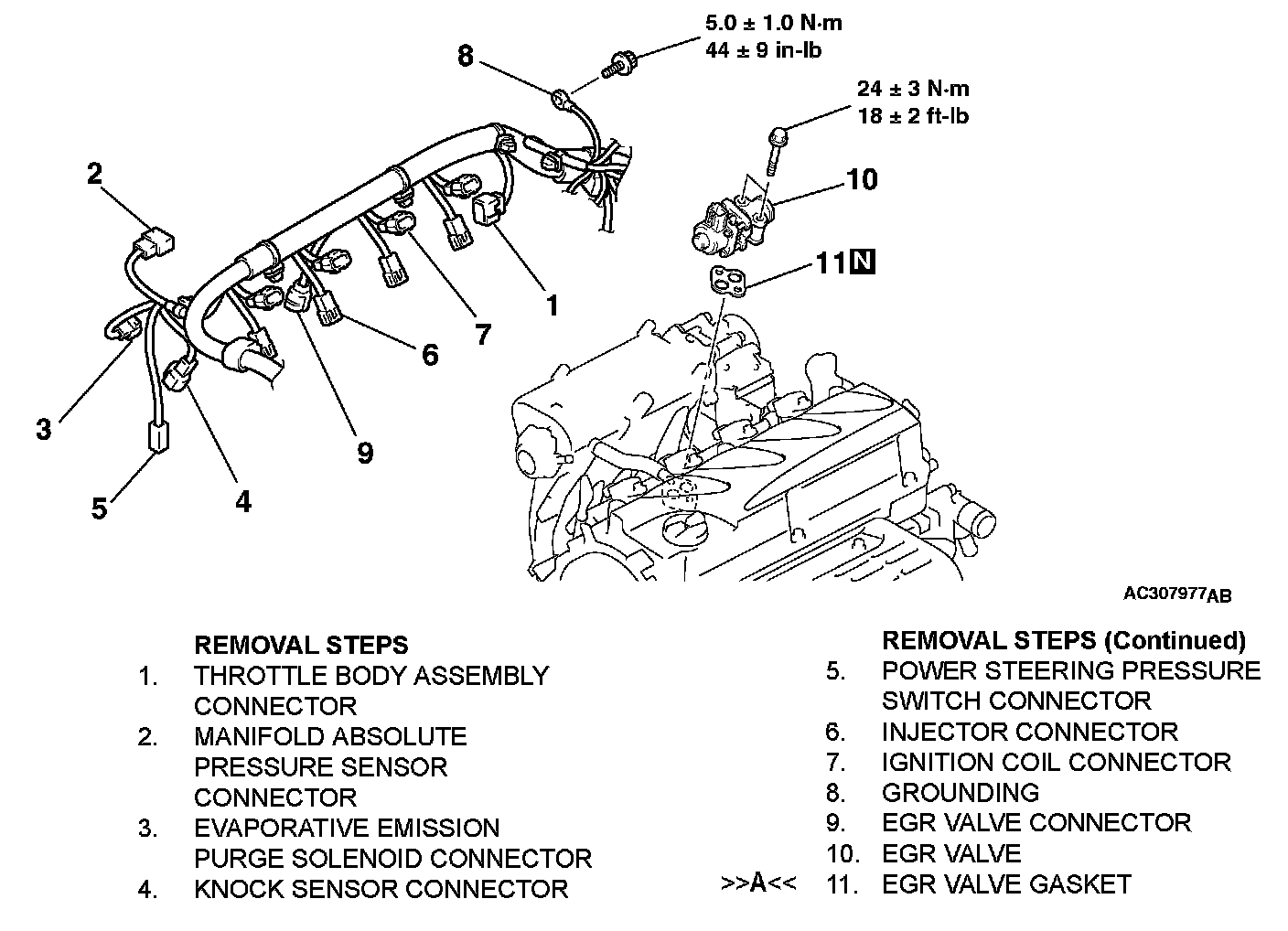

Removal Steps 1-11:

REMOVAL AND INSTALLATION <2.4L ENGINE>

INSTALLATION SERVICE POINT




>>A<< EGR VALVE GASKET INSTALLATION
Install the EGR valve gasket as shown in the illustration.
