Overhaul

DISASSEMBLY AND ASSEMBLY

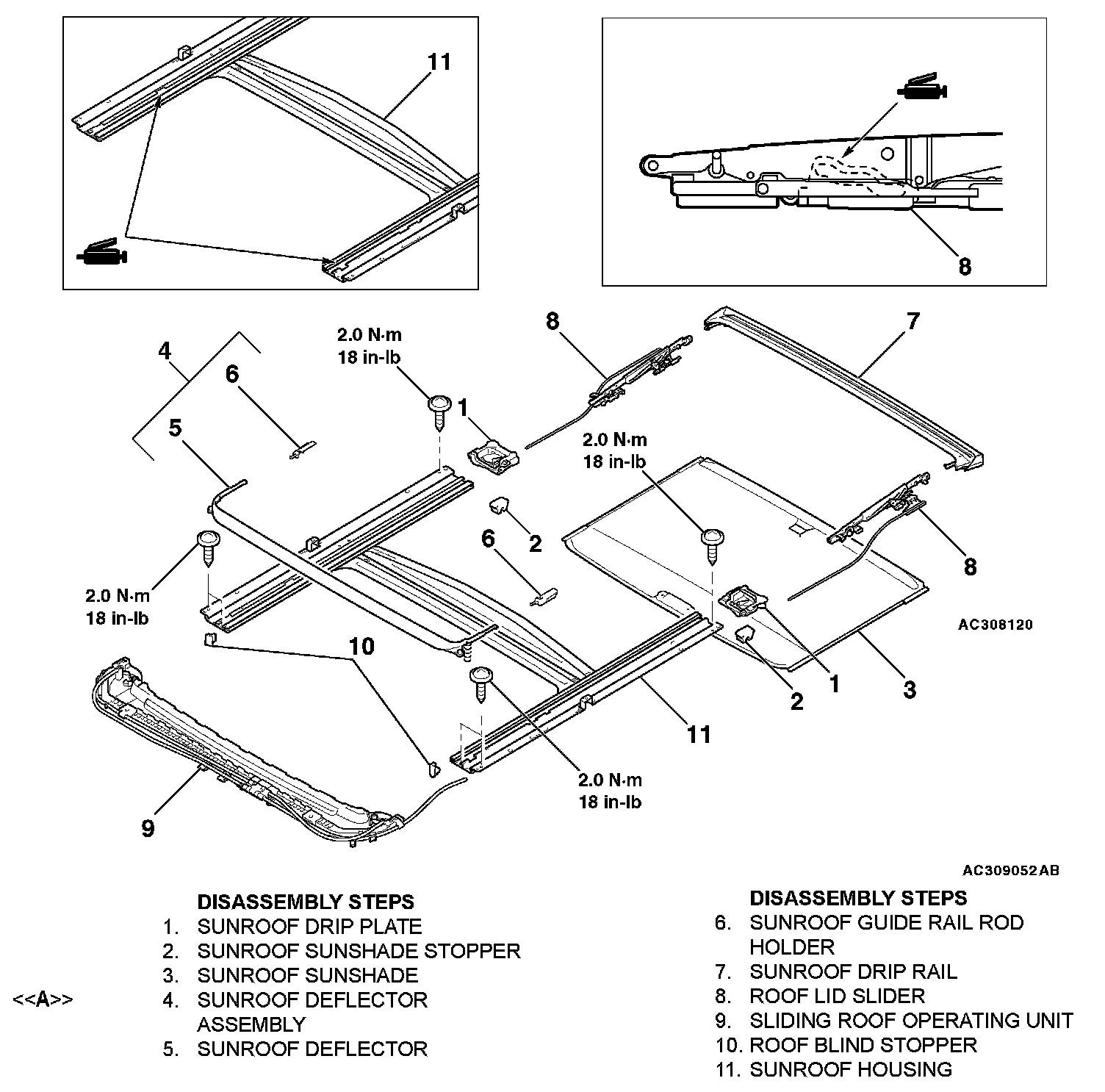

Disassembly Steps 1-11:

DISASSEMBLY SERVICE POINT

[[A]] SUNROOF DEFLECTOR ASSEMBLY REMOVAL

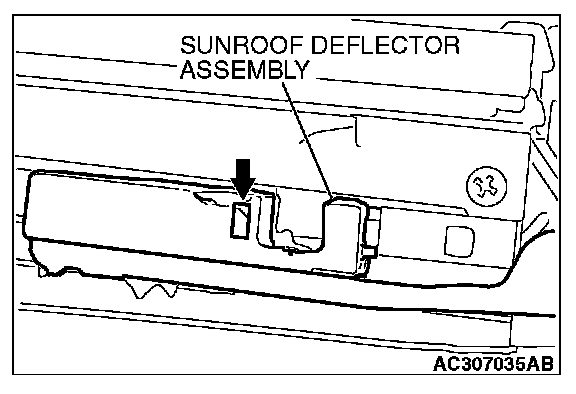

Slide the sunroof deflector assembly to the front of the vehicle by holding the arrow area shown in the illustration with a flat-tipped screwdriver, and remove it.
