Amplifier: Service and Repair

AMPLIFIER

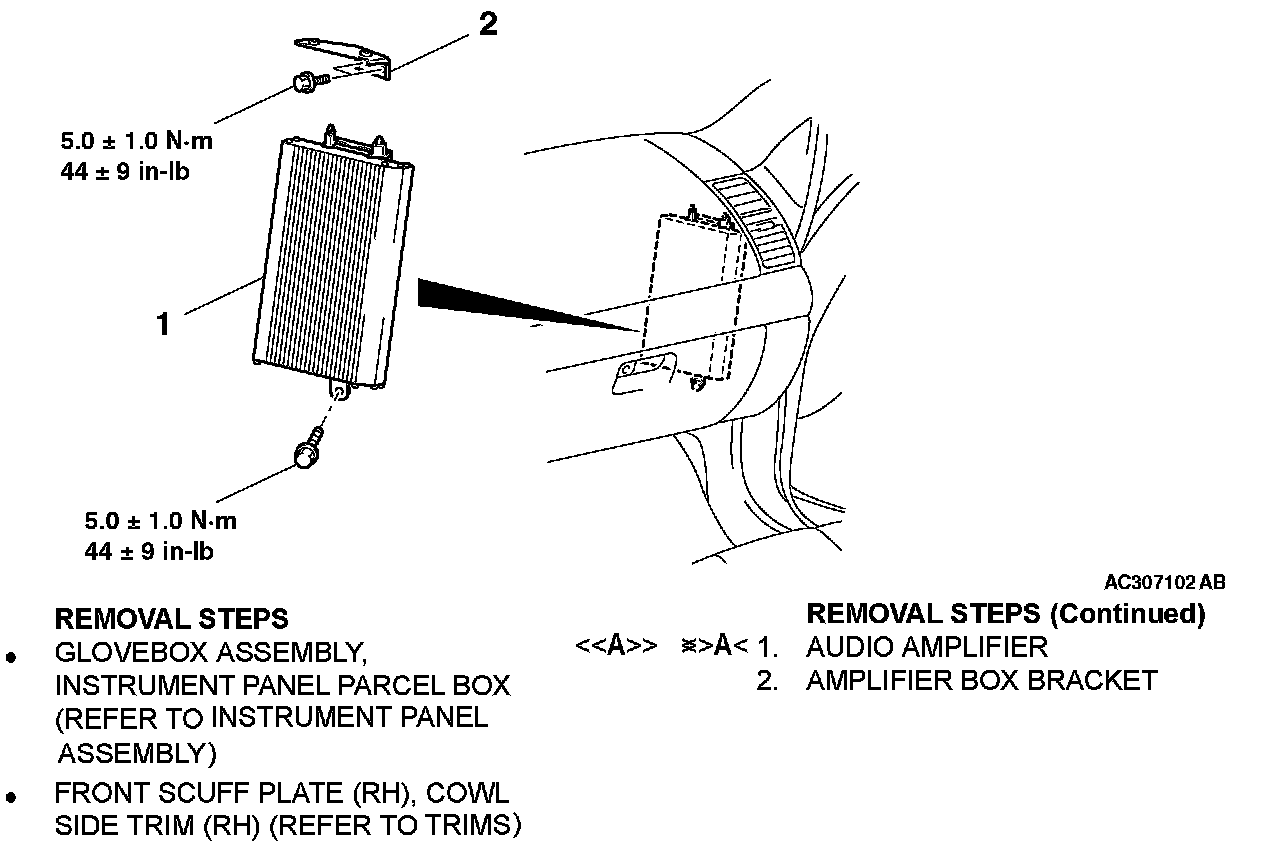

Removal Steps 1-2:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

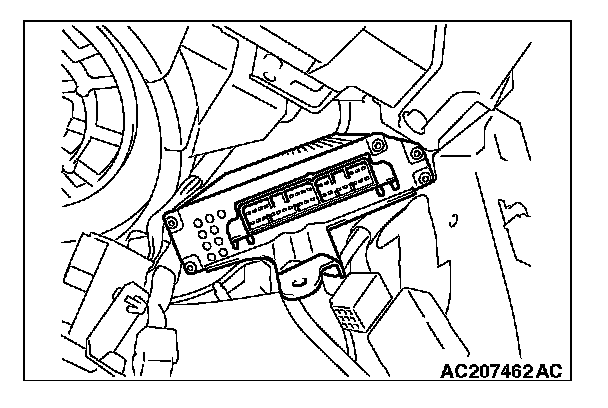

<> AUDIO AMPLIFIER REMOVAL
Move the audio amplifier wiring harness to one side, and then maneuver out the audio amplifier.

INSTALLATION SERVICE POINT

>>A<< AUDIO AMPLIFIER INSTALLATION
Install while aligning with the amplifier mounting hole.
