Air Door Actuator / Motor: Service and Repair

MOTORS AND TRANSISTOR

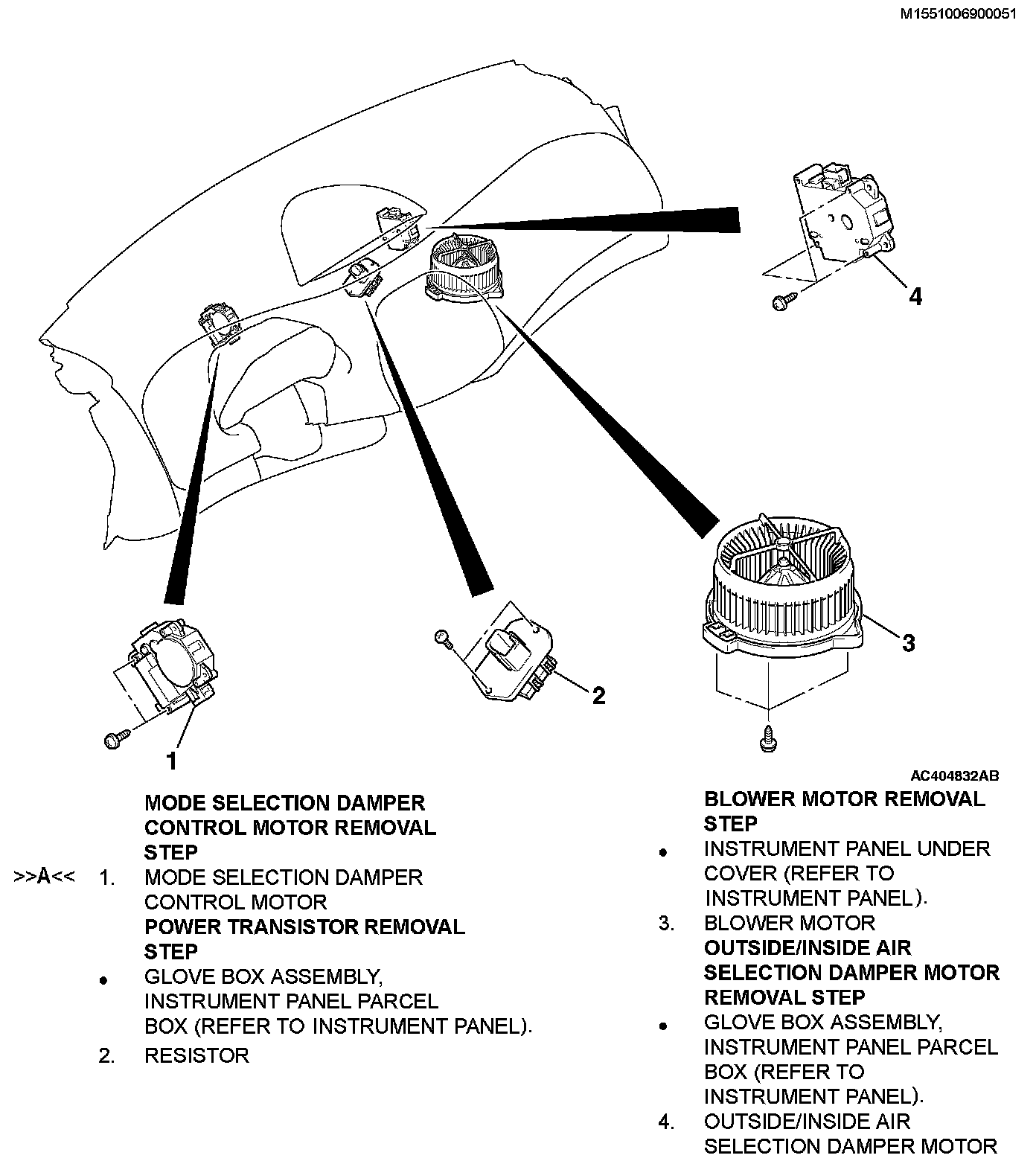

Removal Steps 1 - 4:

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

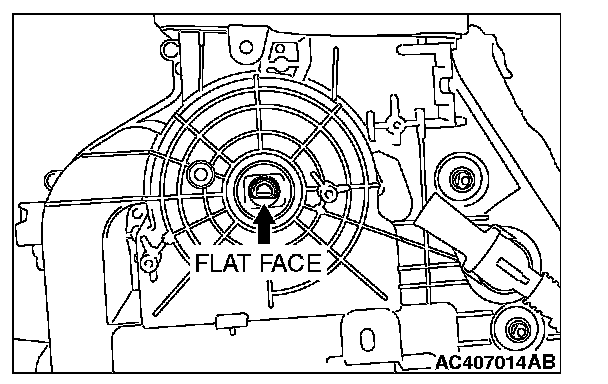

>>A<< MODE SELECTION DAMPER CONTROL MOTOR INSTALLATION
Place the flat face as shown downward and install.
