Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Motor Relay >> Testing and Inspection

Radiator Cooling Fan Motor Relay: Testing and Inspection

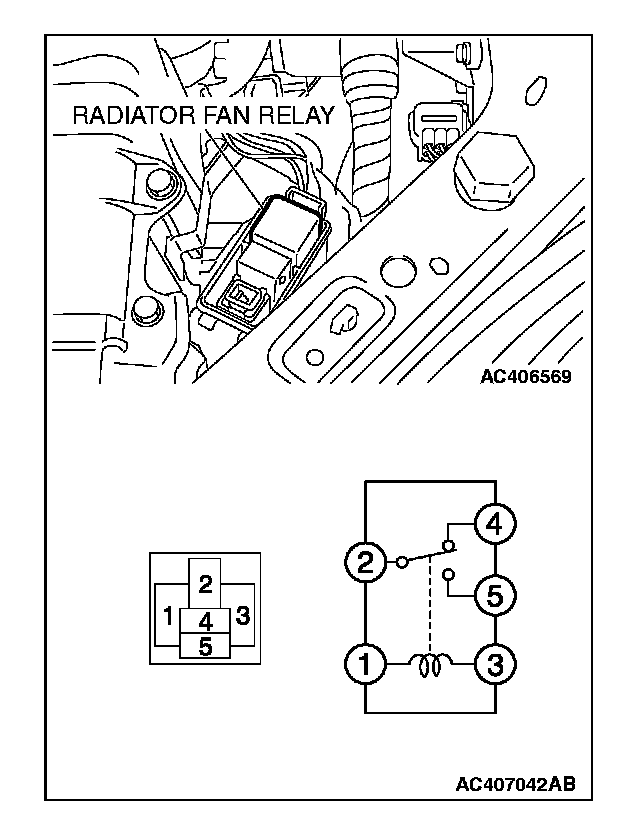

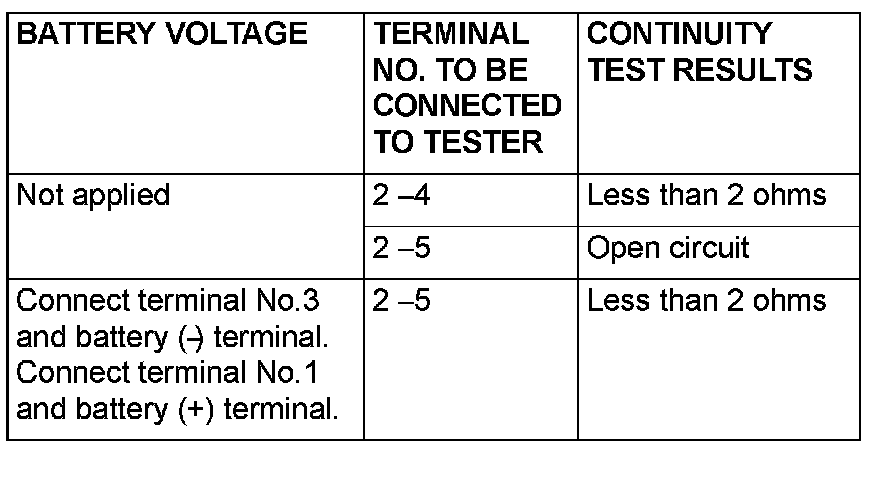

RADIATOR FAN RELAY CHECK <2.4L ENGINE>:
