Mitsubishi
>>
2007
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
F5A5A
>>
Underdrive Clutch and Input Shaft

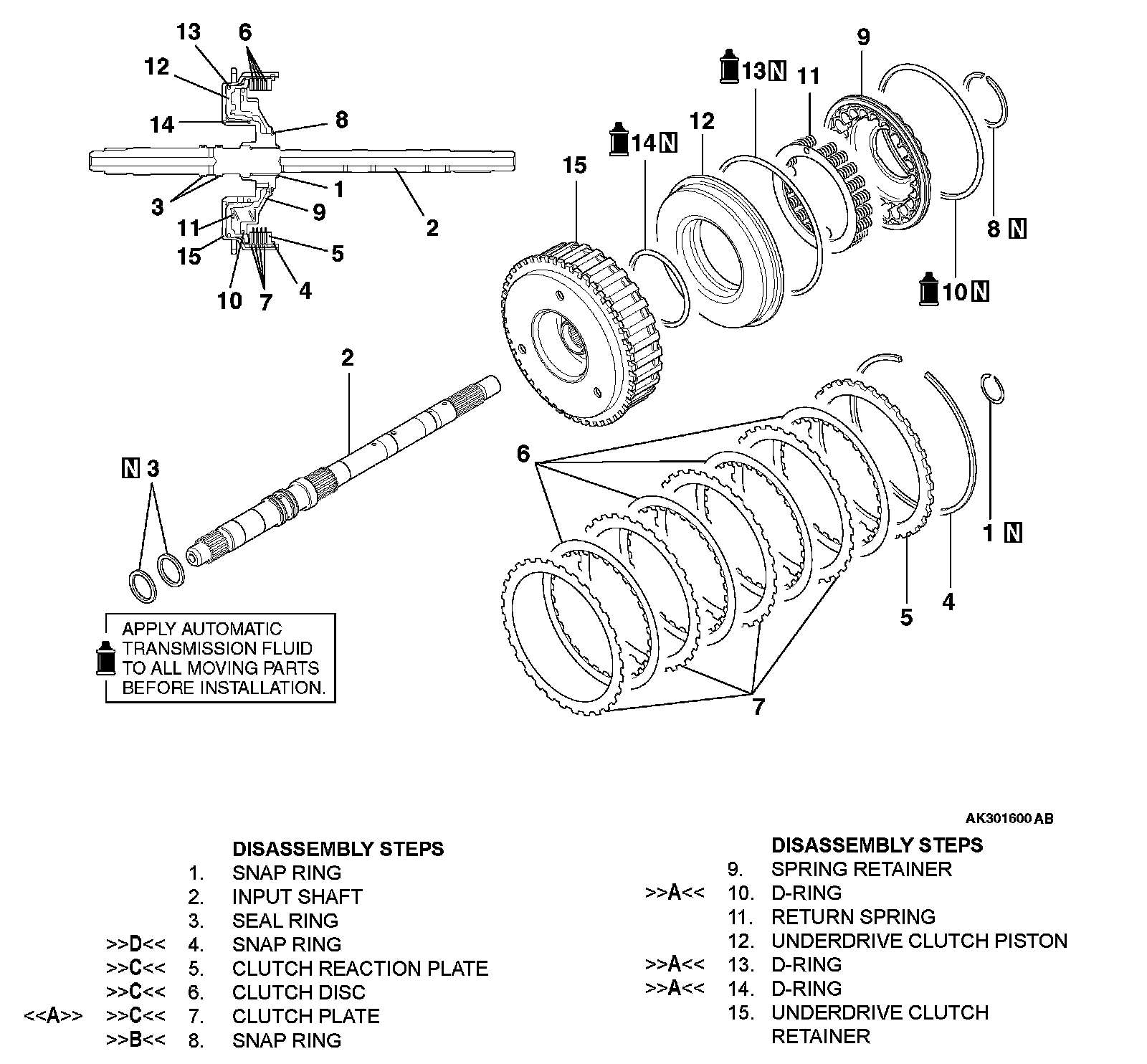

Underdrive Clutch and Input Shaft
Disassembly Steps 1-15:
