Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Power Trunk / Liftgate Lock Switch >> Testing and Inspection

Power Trunk / Liftgate Lock Switch: Testing and Inspection

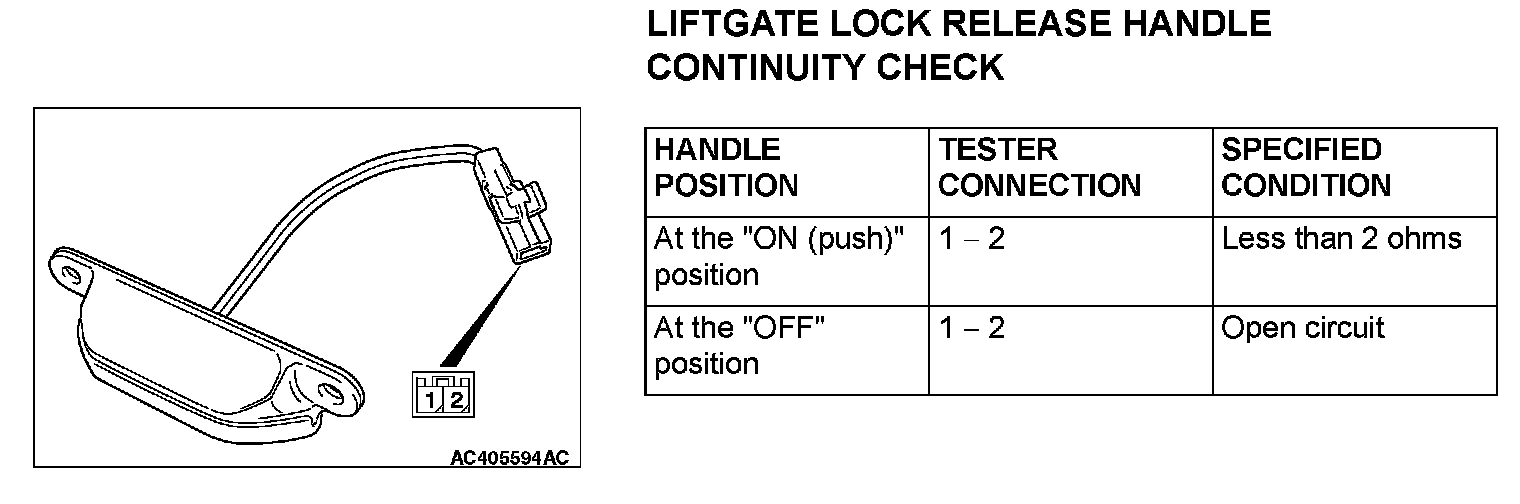

Liftgate Lock Release Handle Continuity Check:

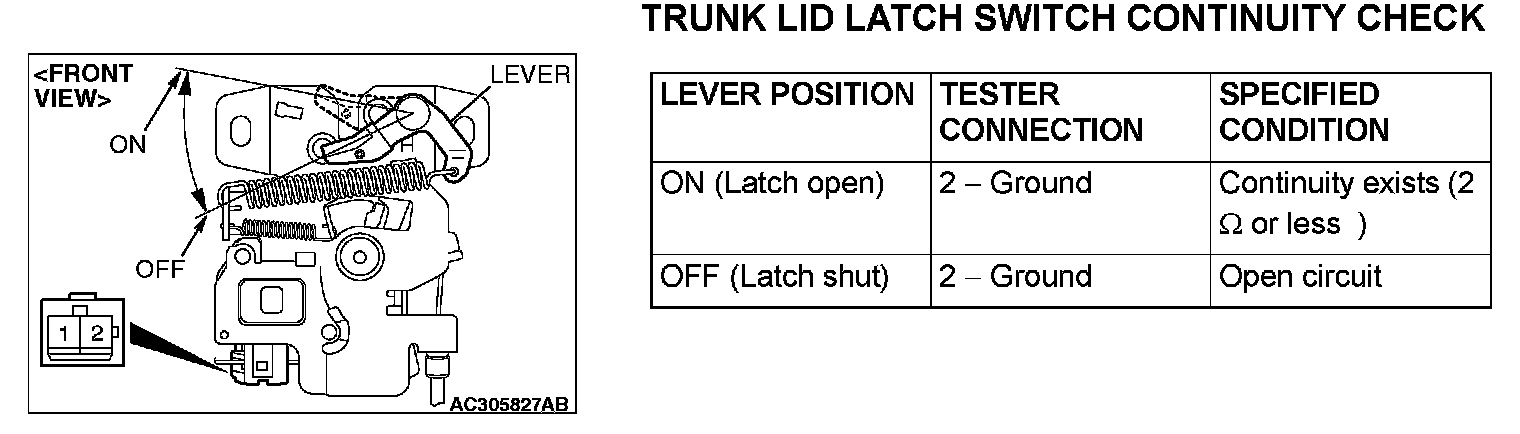

Trunk Lid Latch Switch Continuity Check:
