General Circuit Diagram
General Circuit Diagram

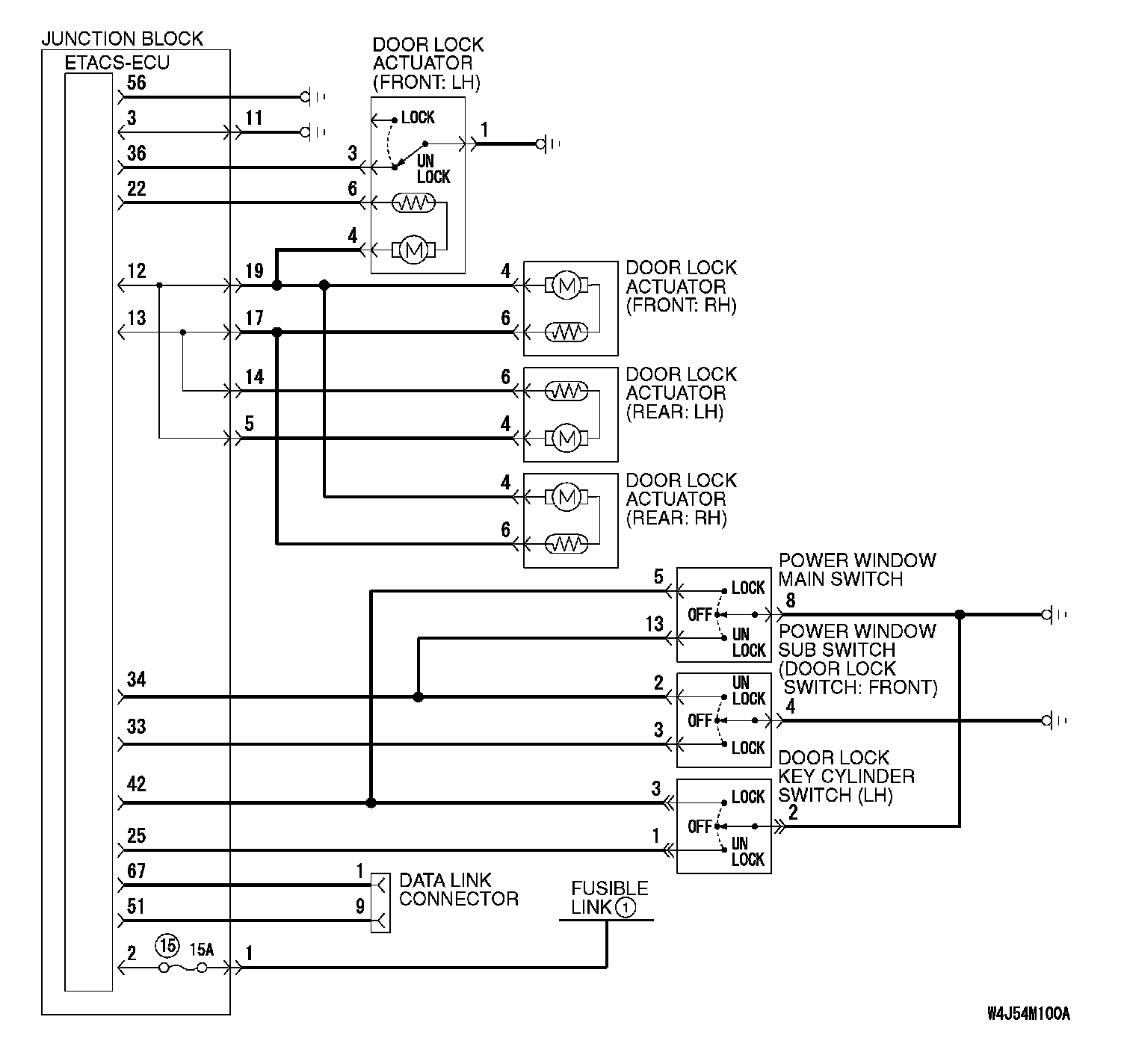

General Circuit Diagram For The Central Door Locking System:
