Home >> Mitsubishi >> 2006 >> Lancer L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> E Connectors - Door

E Connectors - Door

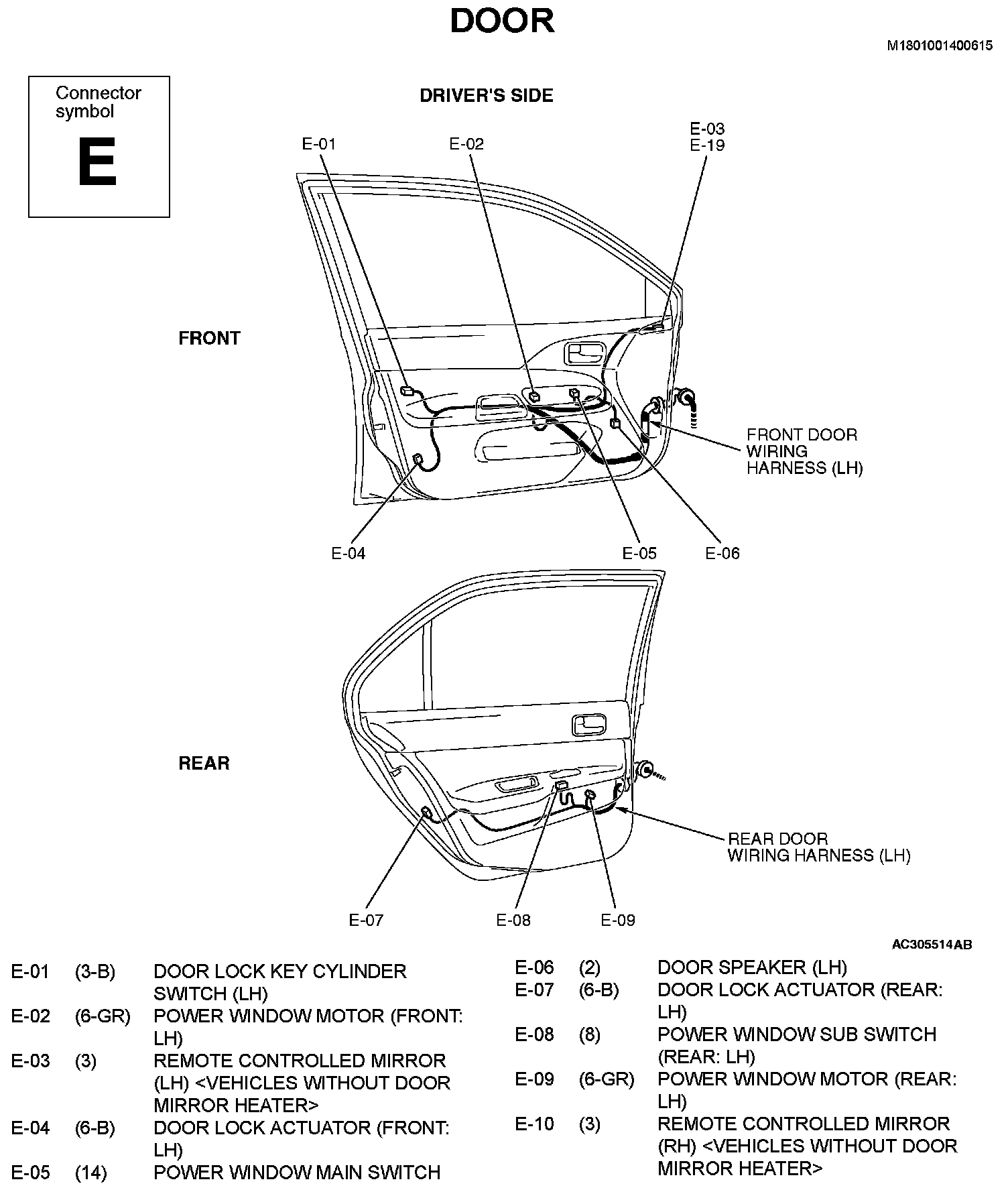

E-01 To E-21 Part 1:

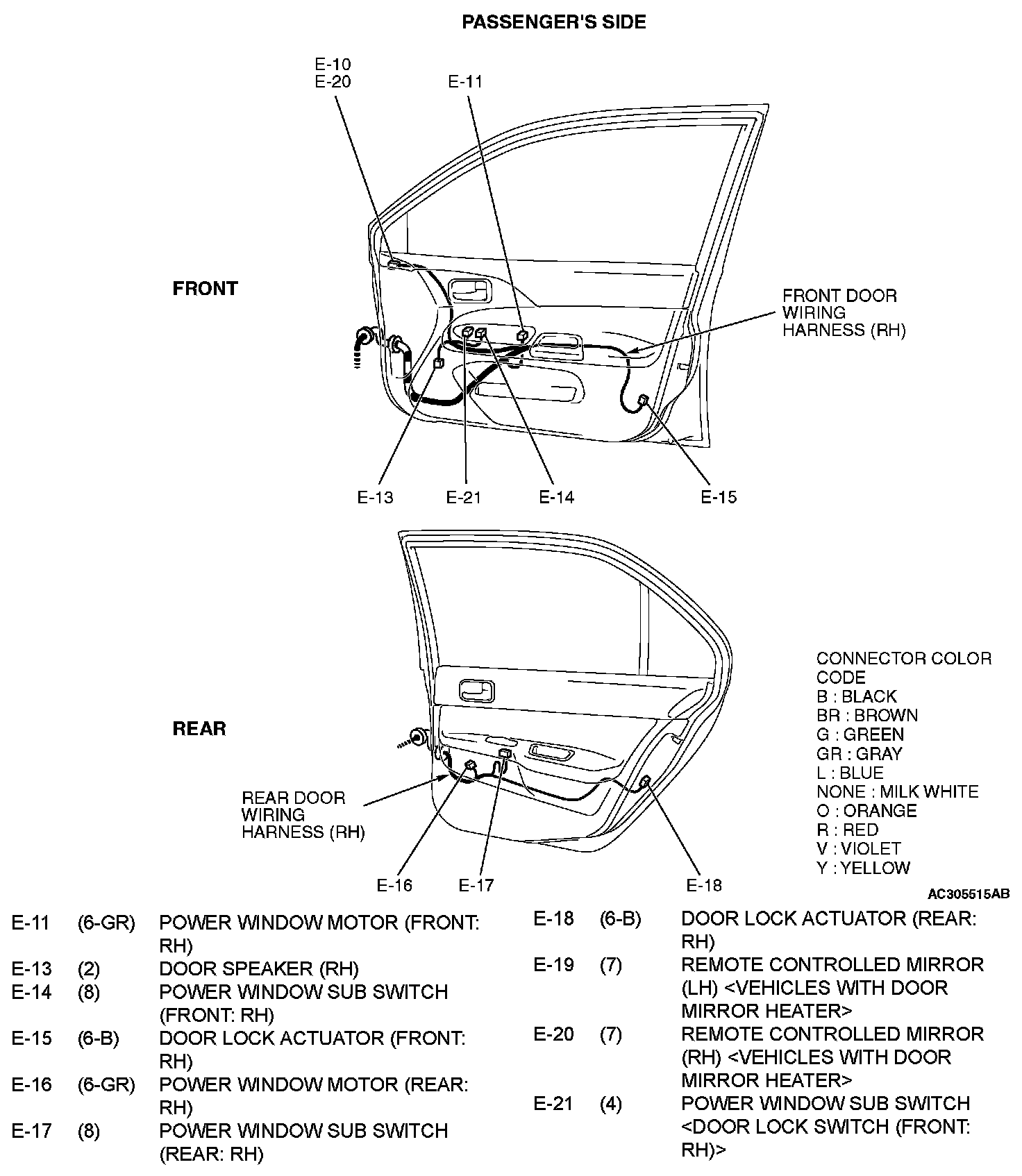

E-01 To E-21 Part 2:
