Removal and Replacement

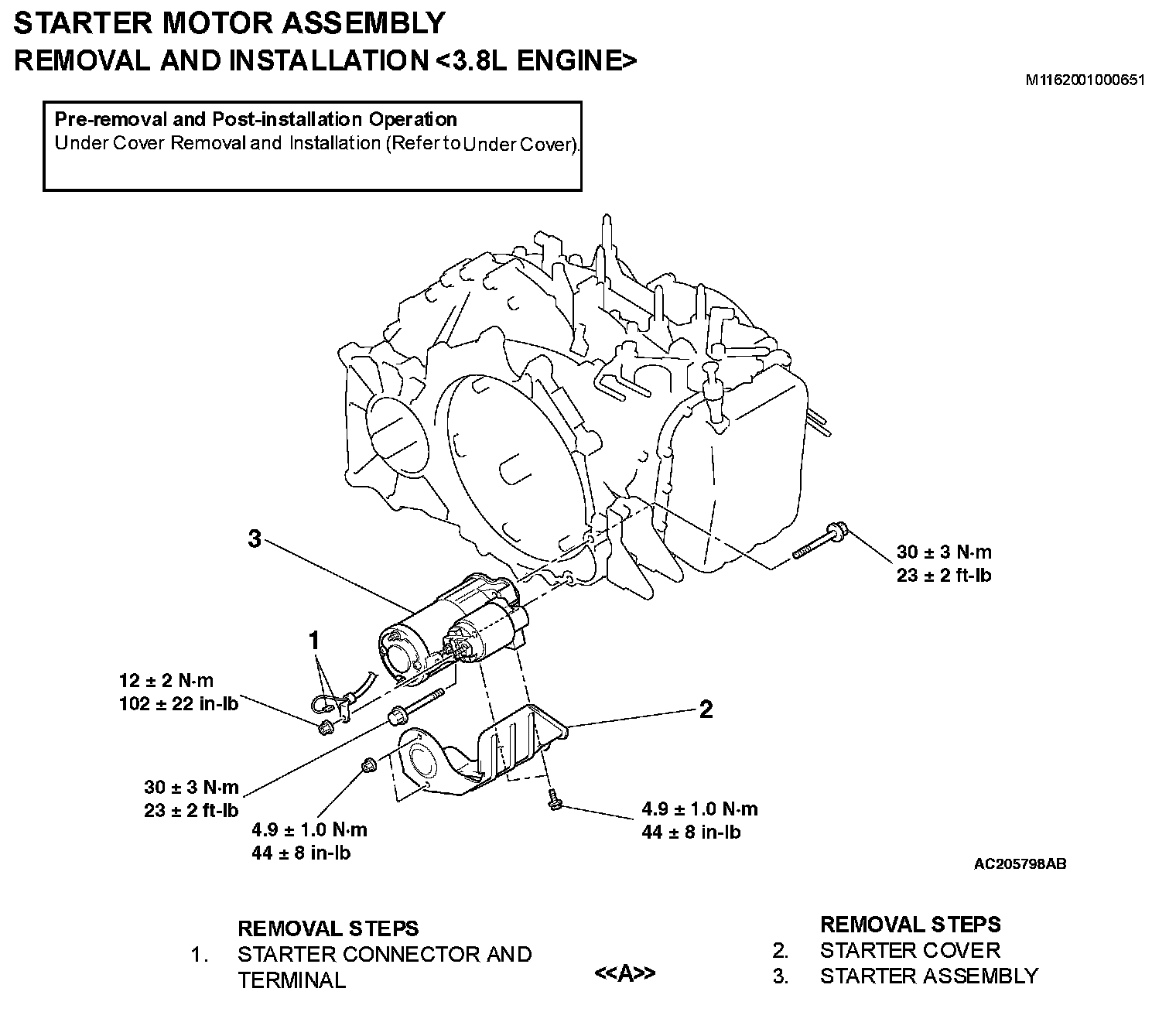

STARTER MOTOR ASSEMBLY




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from under the vehicle.
