Home >> Mitsubishi >> 2006 >> Galant V6-3.8L (6G75) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

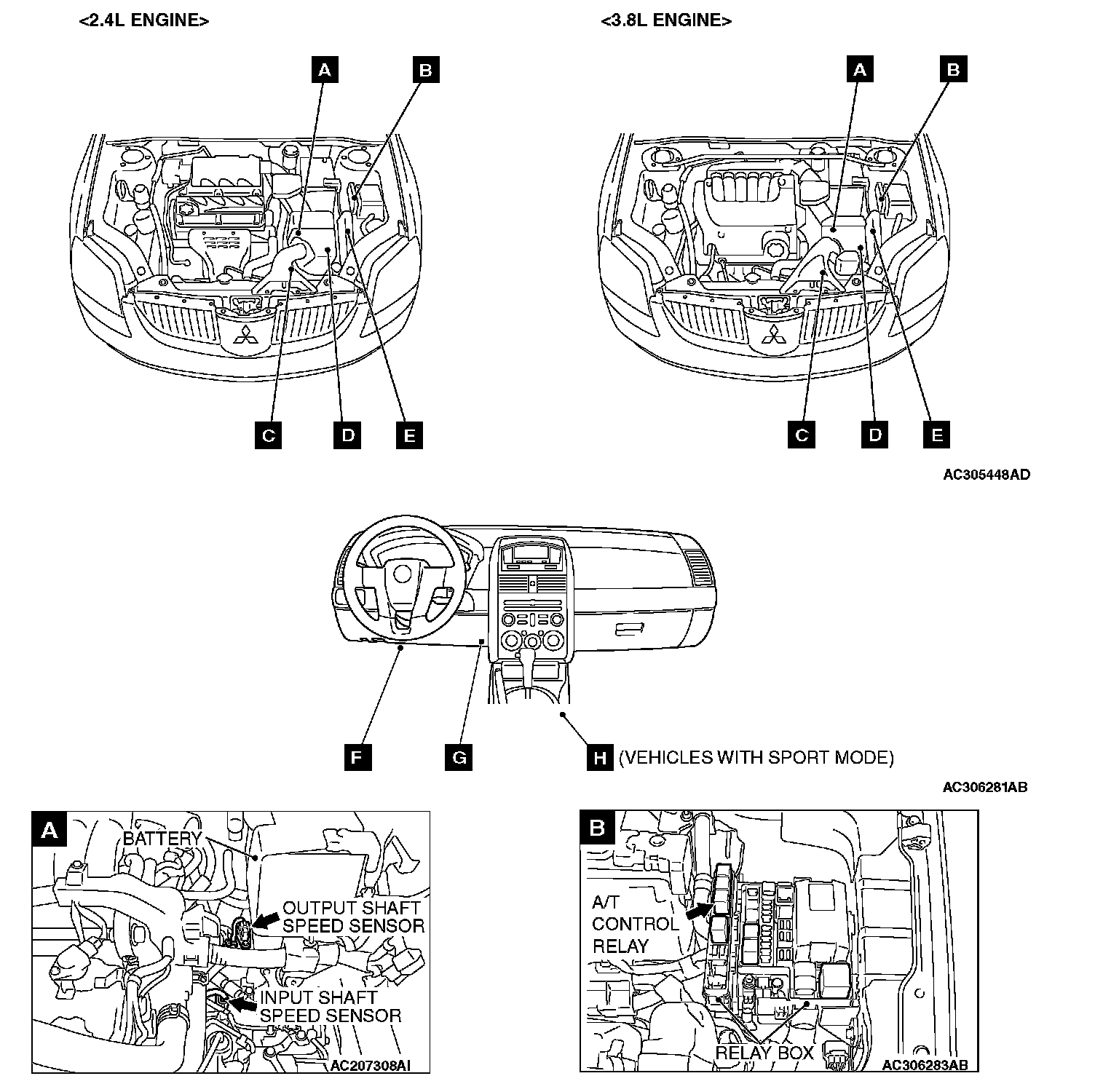

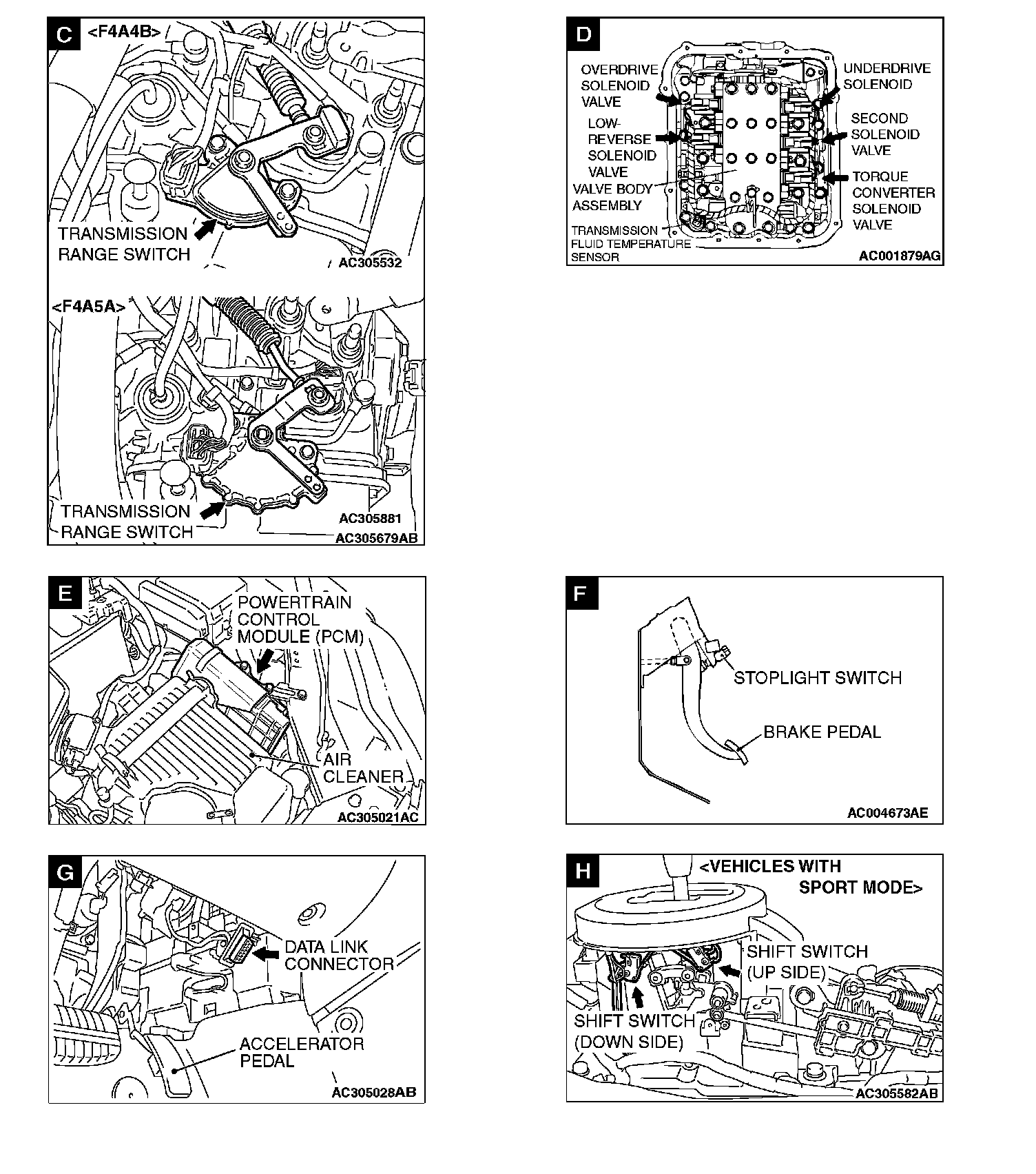

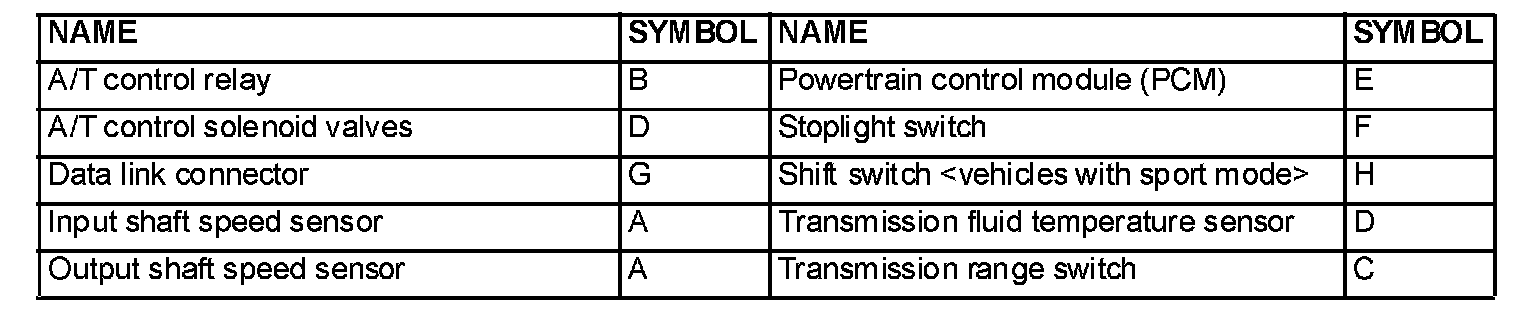

Overall View:

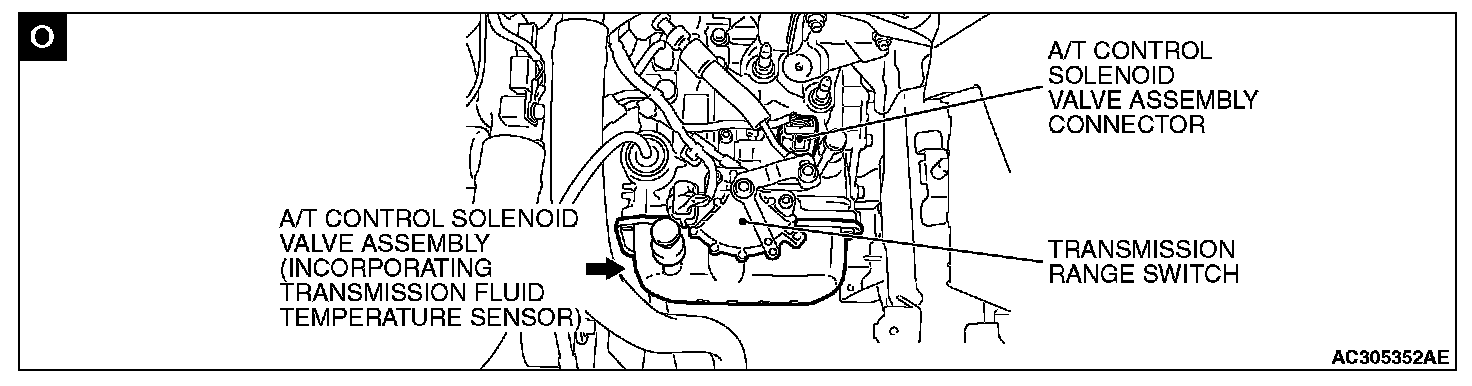

View O:
