Turn Signal Lamp

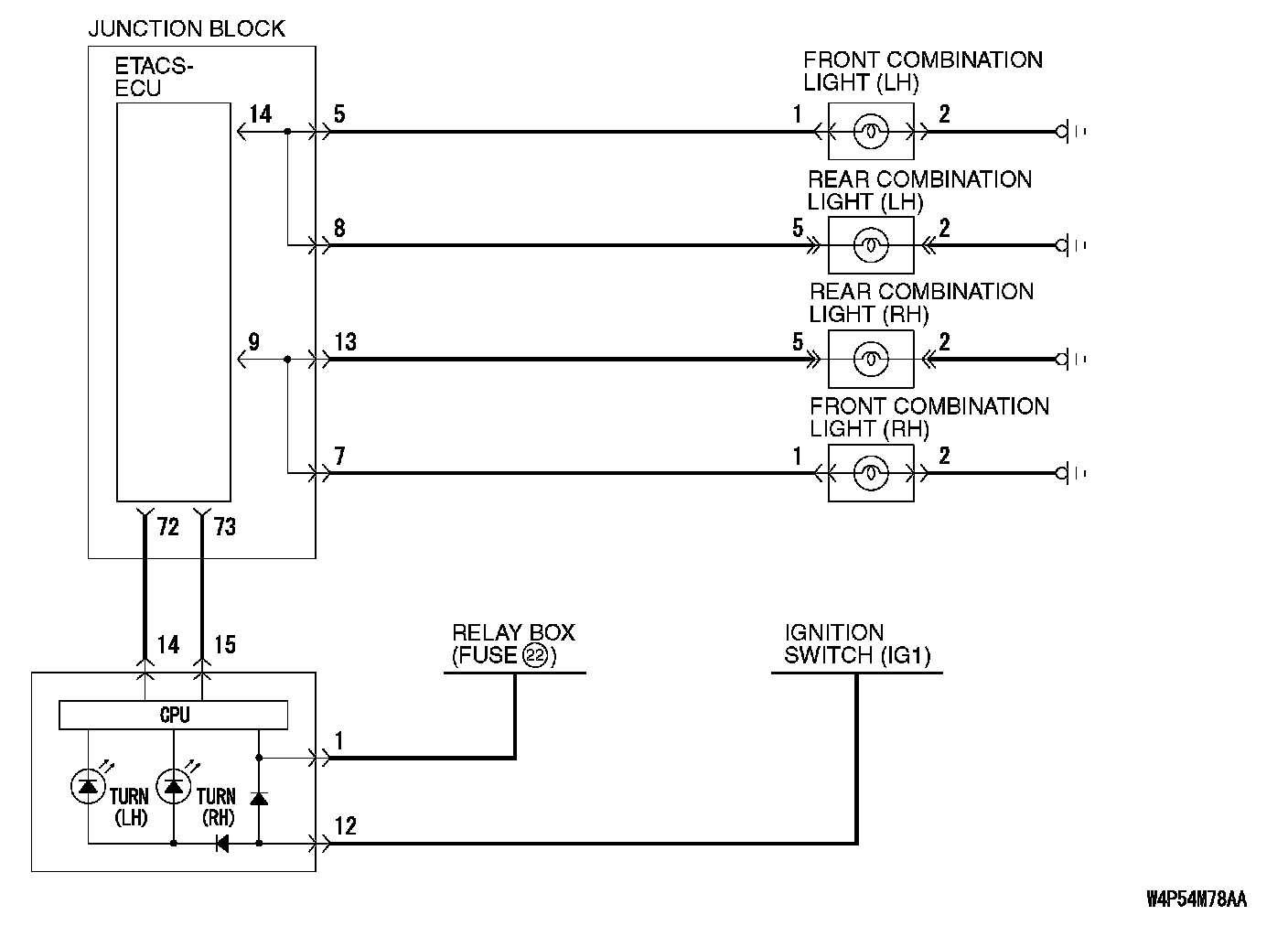

General Circuit Diagram For The Turn-signal Light And Hazard Light Part 1:

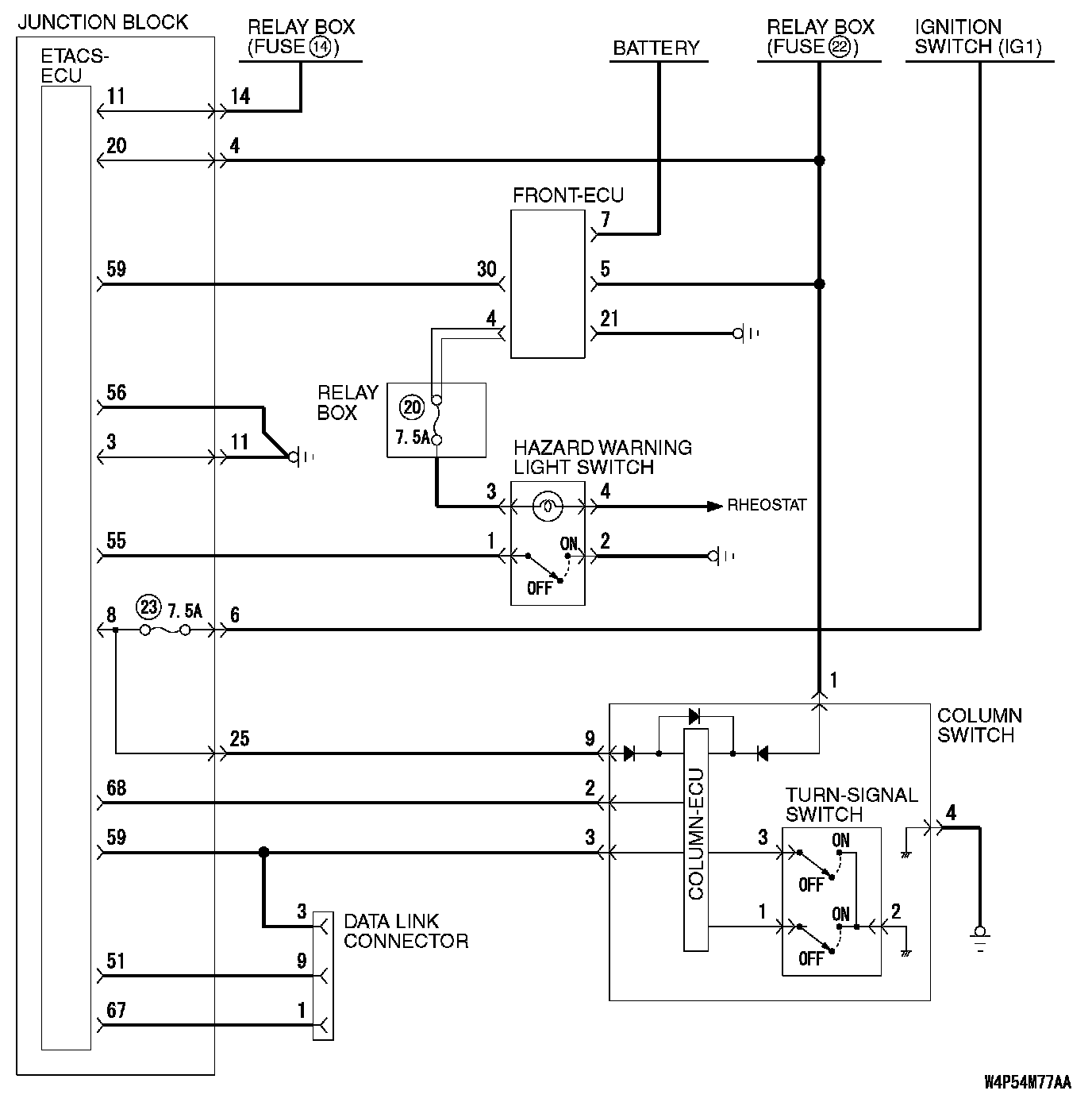

General Circuit Diagram For The Turn-signal Light And Hazard Light Part 2:
