Mitsubishi
>>
2006
>>
Galant V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Circuit Diagrams
Circuit Diagrams

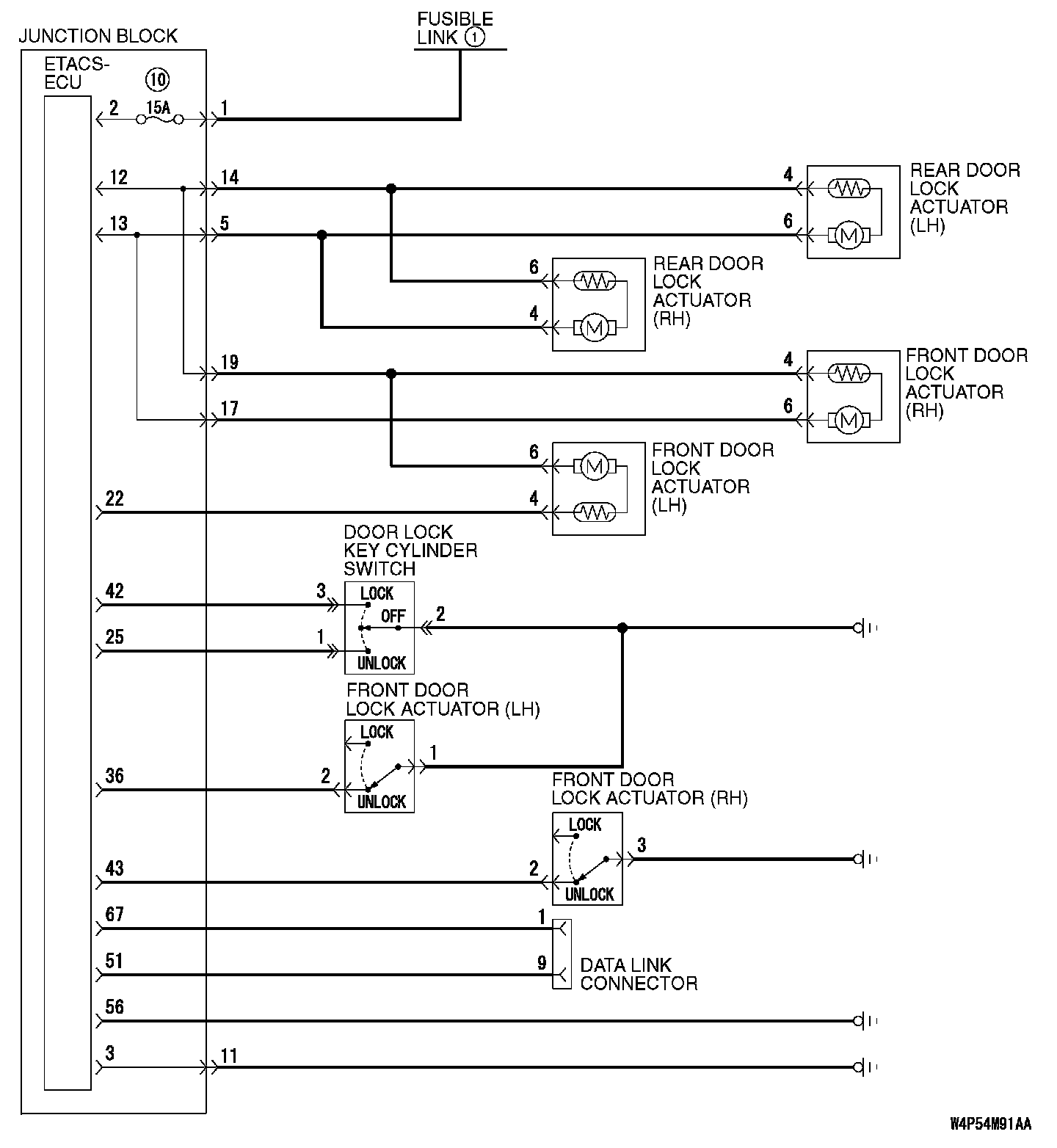

General Circuit Diagram For The Central Door Locking System Part 1:

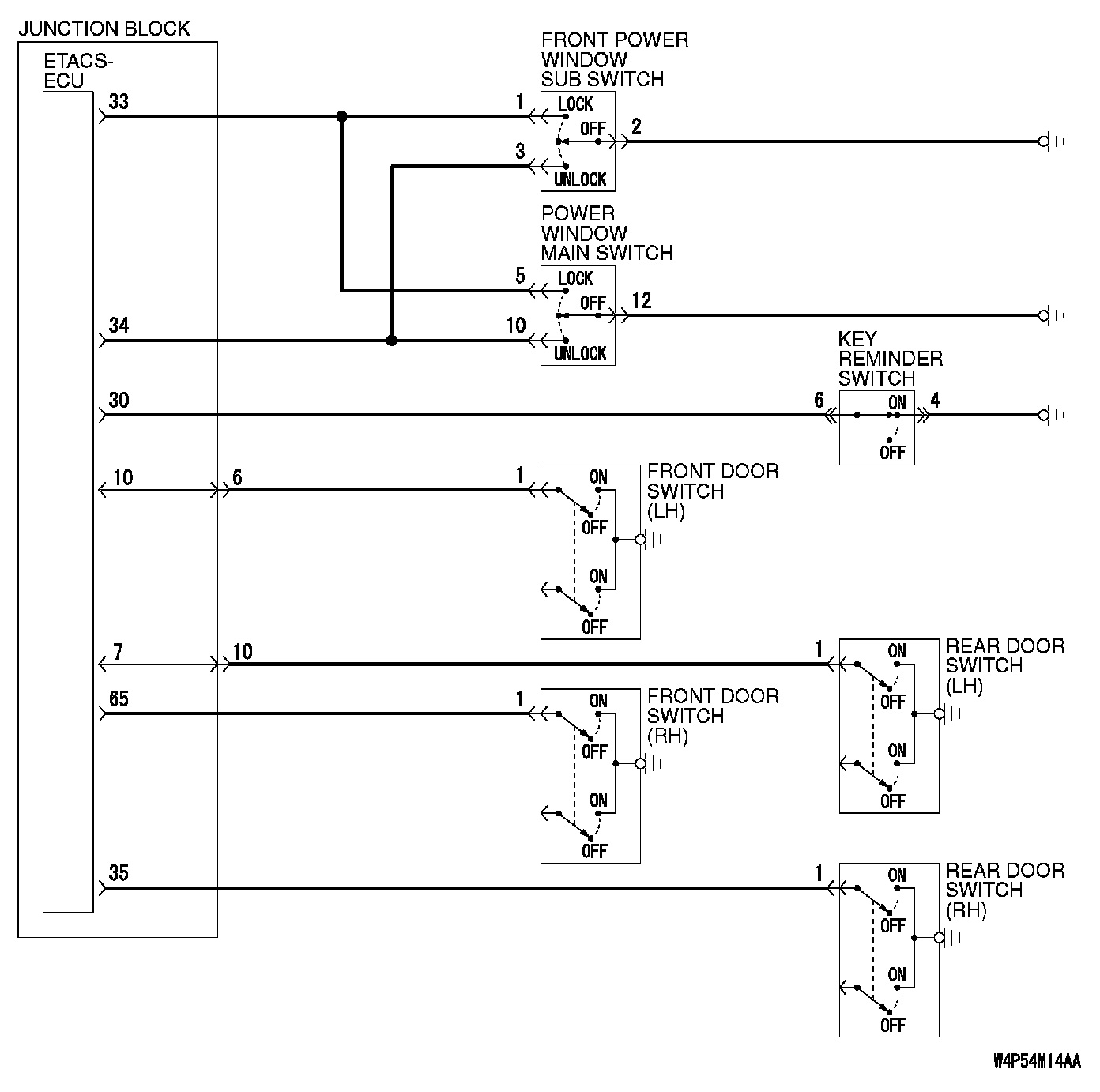

General Circuit Diagram For The Central Door Locking System Part 2:
