Fog/Driving Lamp
>>
Circuit Diagram
Circuit Diagram

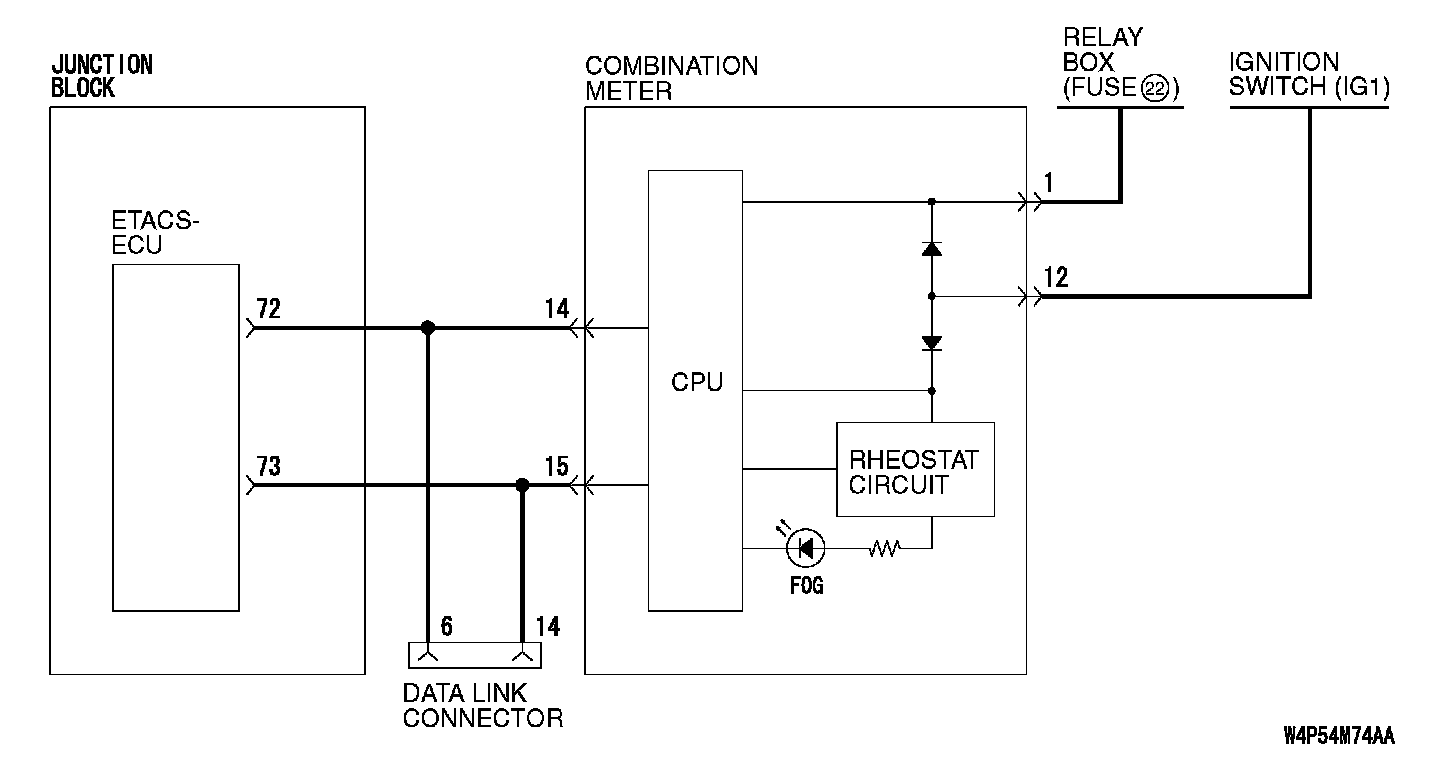

General Circuit Diagram Or The Fog Lights Part 1:

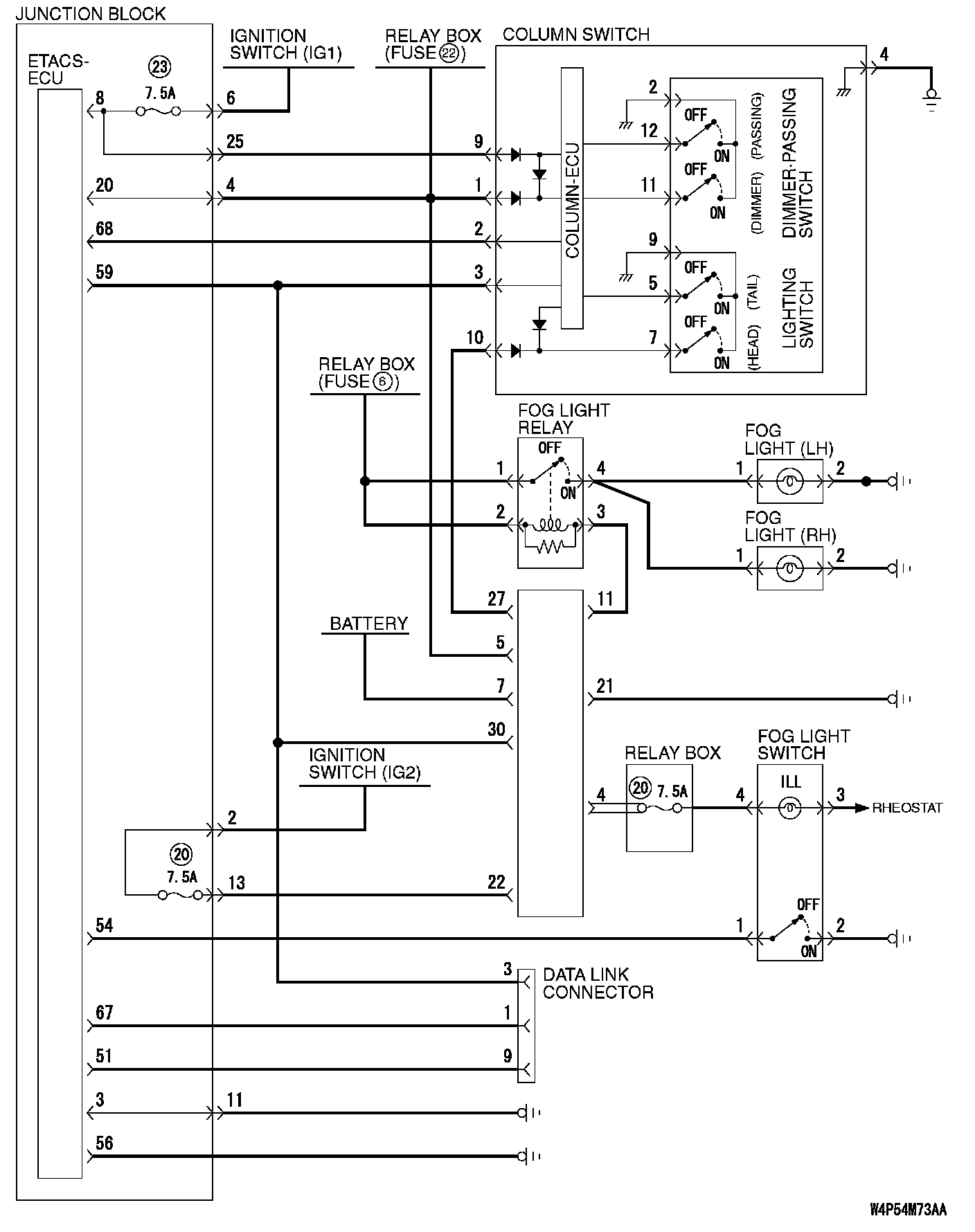

General Circuit Diagram Or The Fog Lights Part 2:
