Suspension Strut / Shock Absorber
>>
Rear
Rear

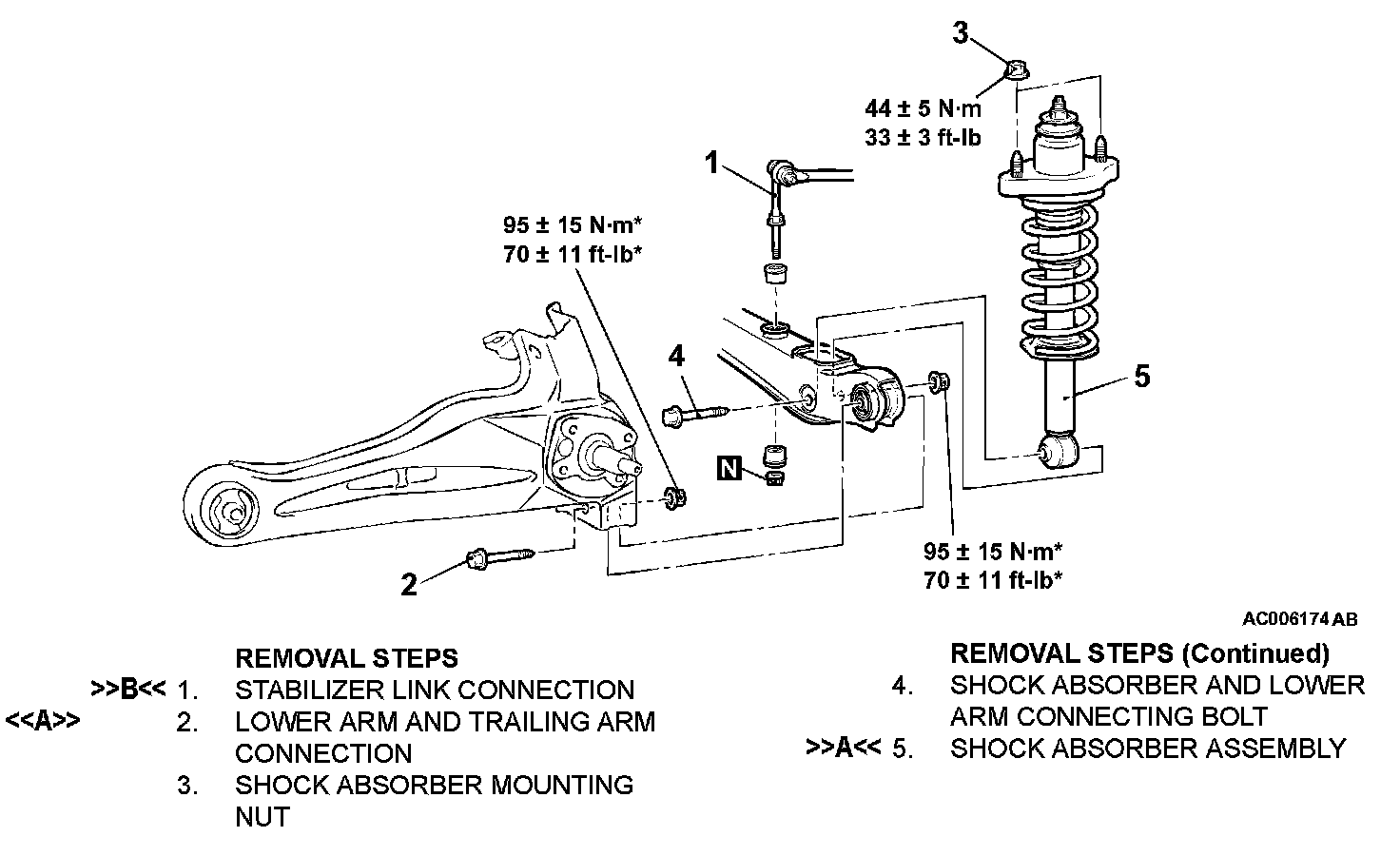

SHOCK ABSORBER ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
