Mitsubishi
>>
2005
>>
Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
Exhaust Gas Recirculation

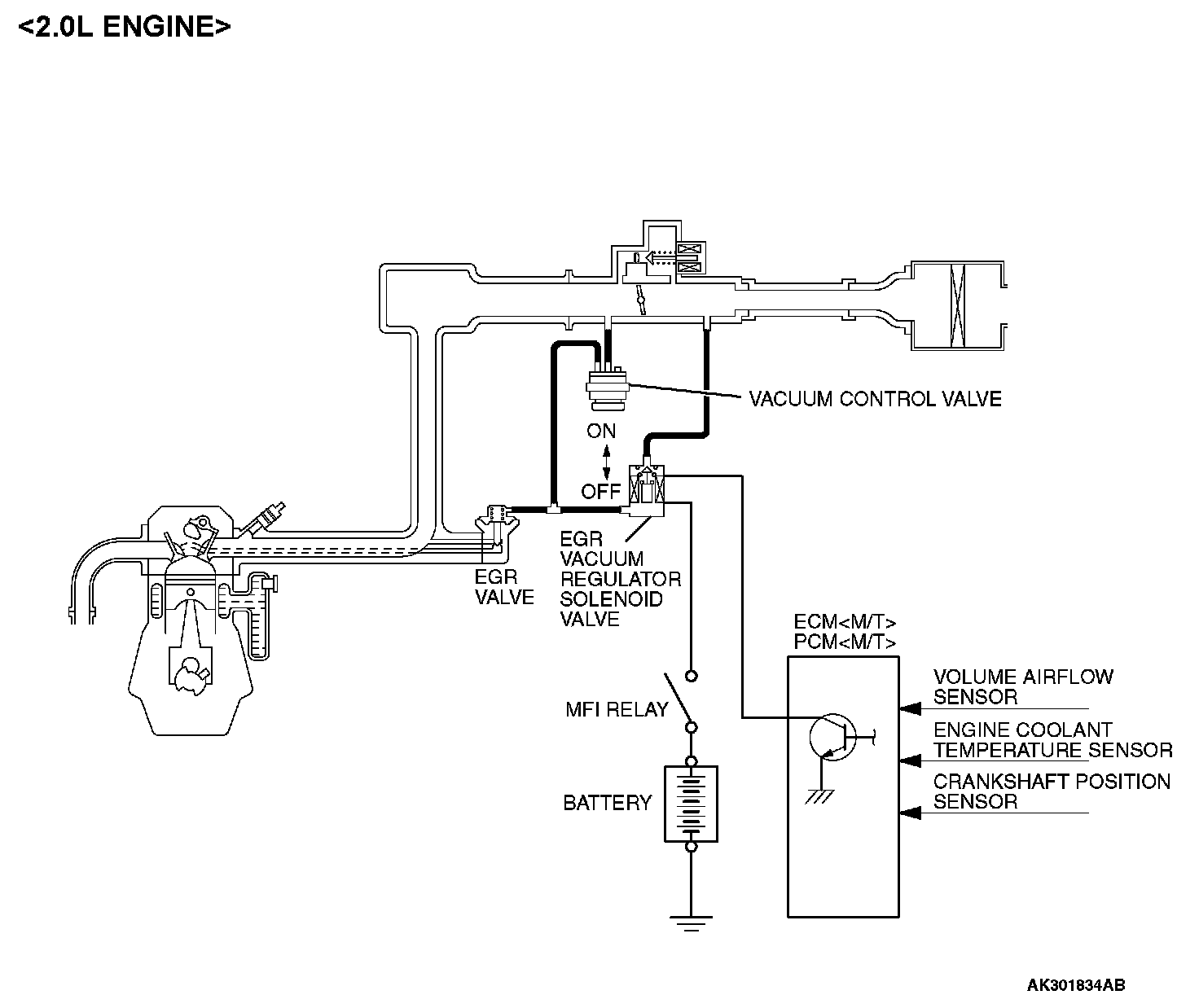

System Diagram For <2.0L Engine>:
