Piston and Connecting Rod
Piston and Connecting Rod

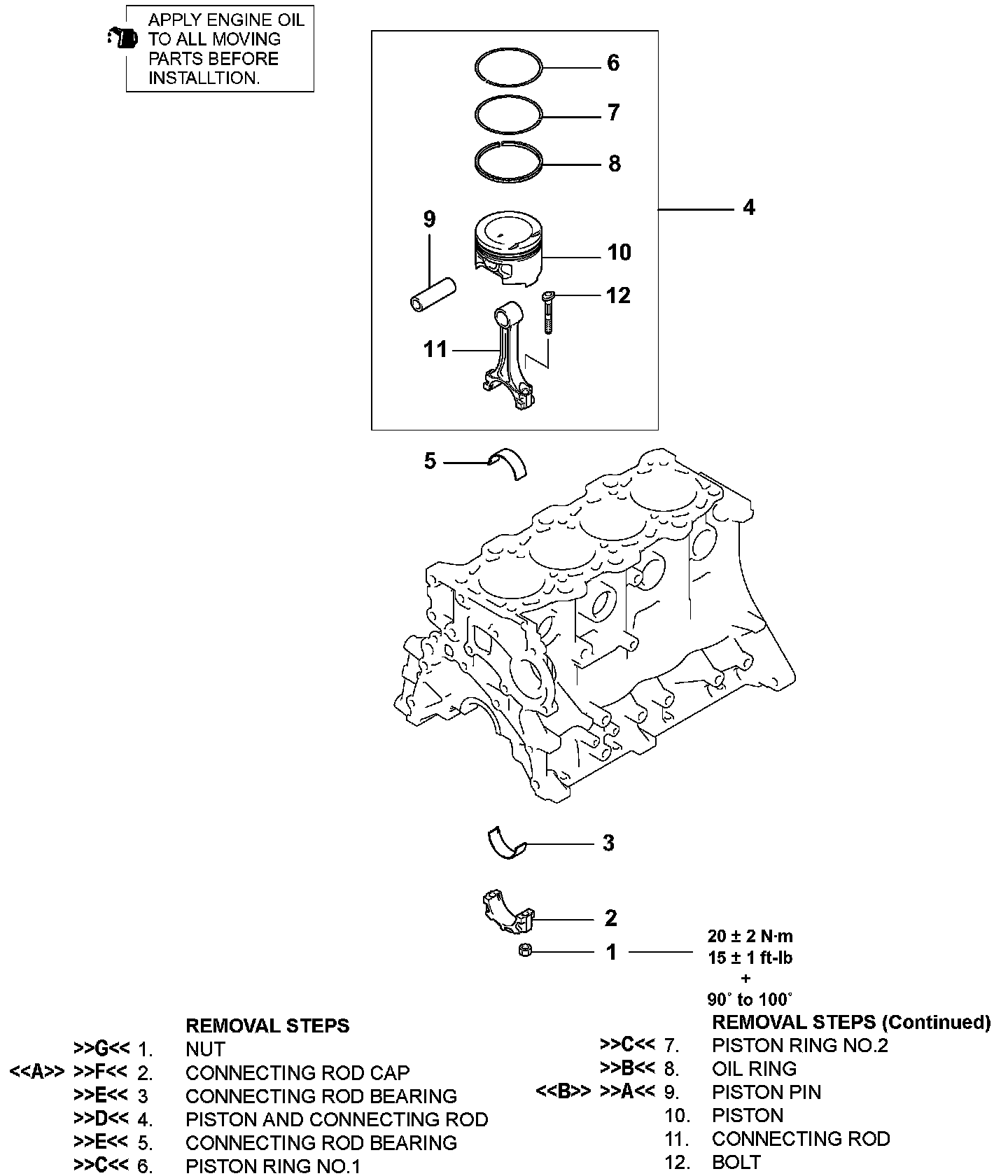

PISTON
AND
CONNECTING ROD
REPLACEMENT W/ RELATED COMPONENTS
