Back Window Glass: Service and Repair

REAR WINDOW GLASS

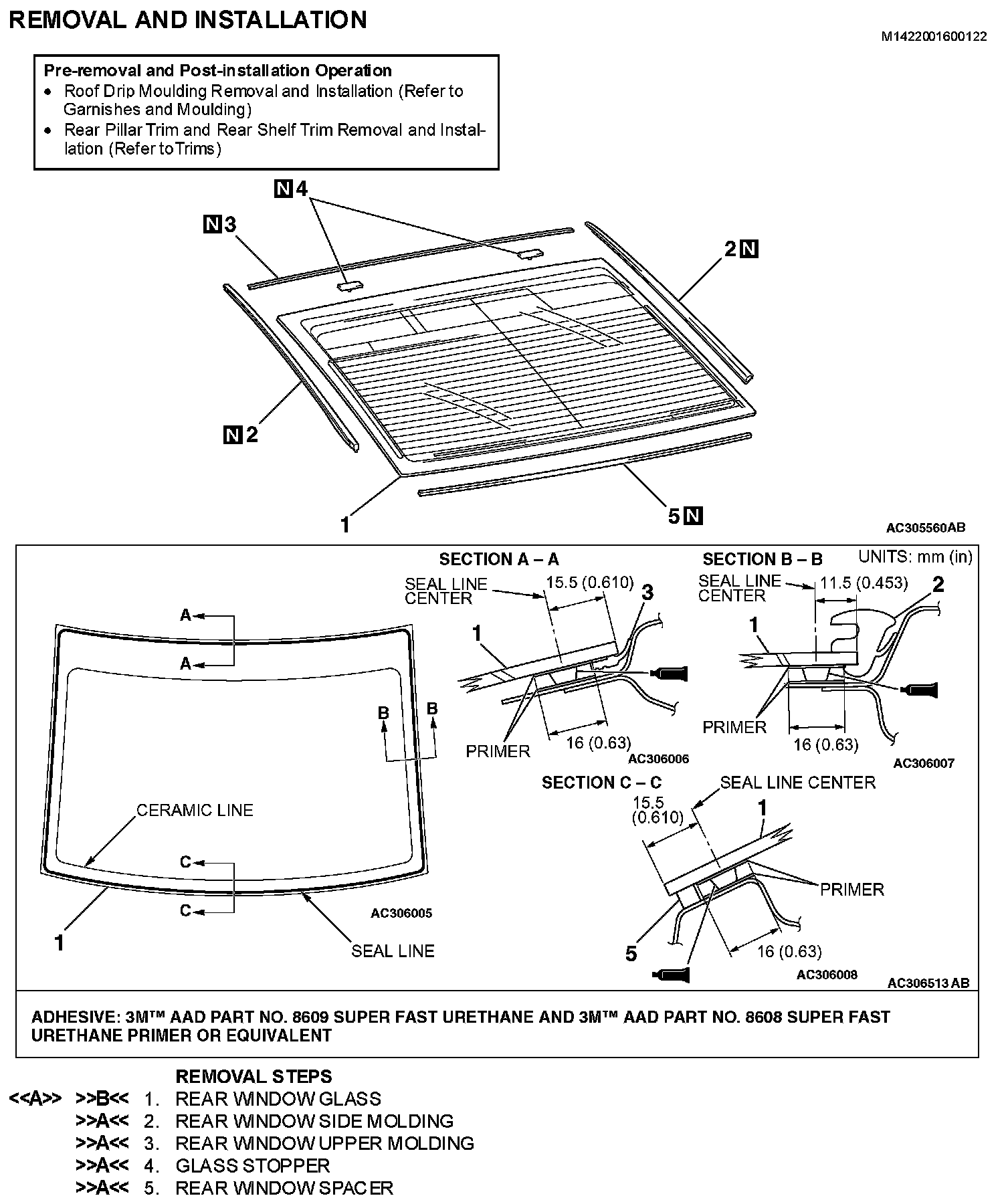

REMOVAL AND INSTALLATION

Required Special Tool:
- MB990480: Glass Holder

REMOVAL SERVICE POINT

[[A]] REAR WINDOW GLASS REMOVAL
Remove the rear window glass using the same procedure as for the windshield.

INSTALLATION SERVICE POINTS

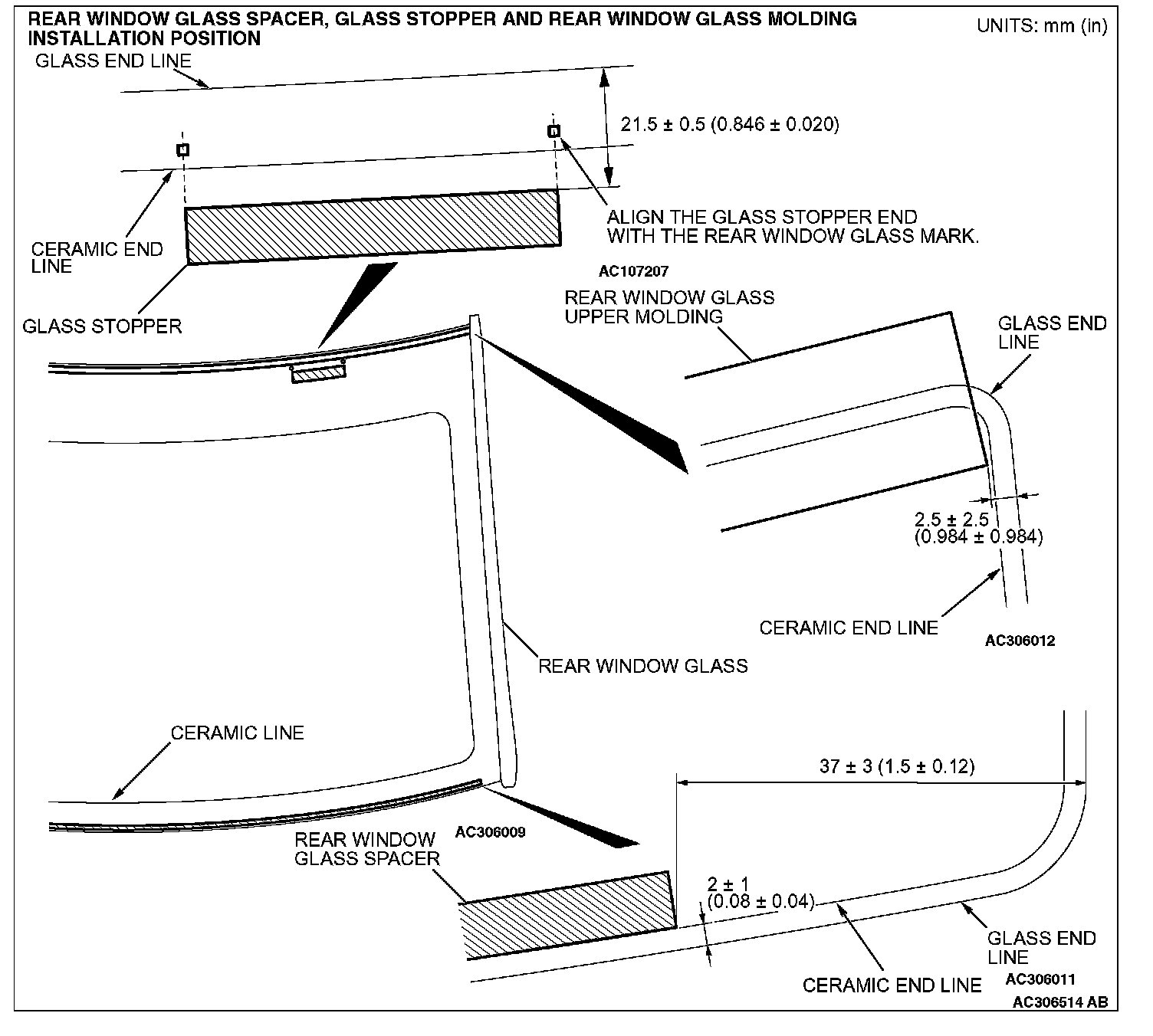

]]A[[ REAR WINDOW SPACER/GLASS STOPPER/REAR WINDOW UPPER MOLDING/REAR WINDOW SIDE MOLDING INSTALLATION

CAUTION: Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.




1. Use 3M(TM) AAD Part number 8906 or equivalent. to degrease the inside and outside edges of the rear window glass and the surface of the body flange.
2. Install the rear window spacer and glass stopper to the specified positions so that there are no adrift or bent surfaces inside the rear window glass.
3. Install the rear window upper molding and side molding to the rear window glass.

]]B[[ REAR WINDOW GLASS INSTALLATION
Install the rear window glass in the same way as for the windshield installation.
