Lighting - Dome Lamp Mounting Revision
No.: TSB-05-54-004DATE: May, 2005
MODEL: 2005 Galant
SUBJECT:
DOME LIGHT MOUNTING - SERVICE MANUAL REVISION
PURPOSE
On sunroof-equipped vehicles produced after 3/9/05, the dome light is secured by two mounting screws that attach to the roof.
Vehicles built before 3/9/05 do not have these mounting screws attached to the roof.
NOTE:
On vehicles built before 3/9/05, to correct a headliner sagging condition, install Dual-Lock fastener as described in TSB-04-52-002.
AFFECTED VEHICLES
2005 Galant models equipped with sunroof
AFFECTED SERVICE MANUAL

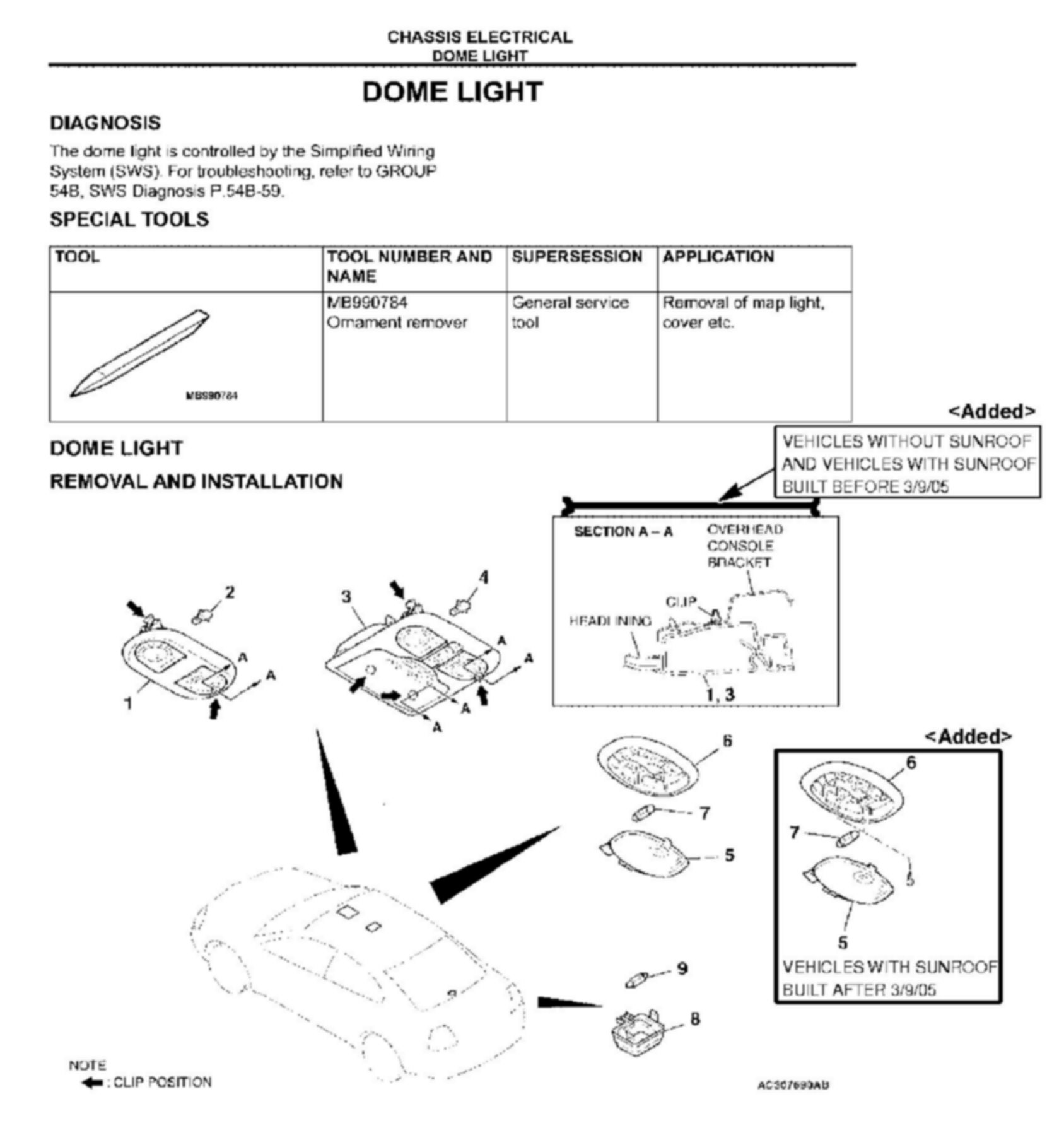

2005 Galant, Volume 3, page 54A-120
Chassis Electrical Dome Light
