Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fusible Link, Fuse and IOD or Storage Connector
Fusible Link, Fuse and IOD or Storage Connector

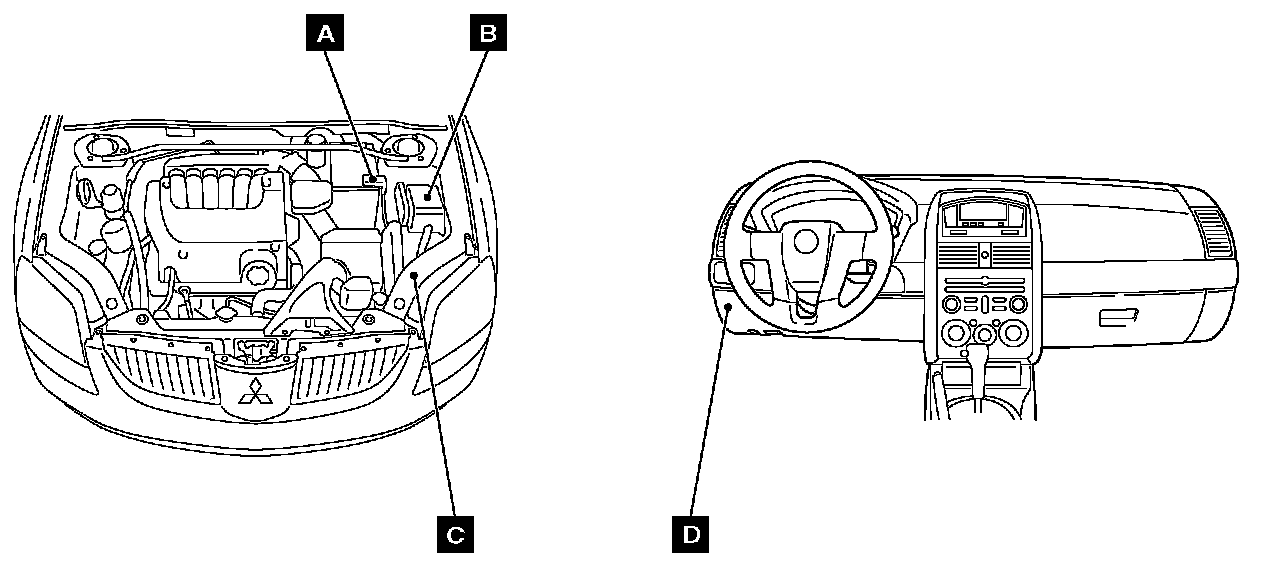

Overall View:

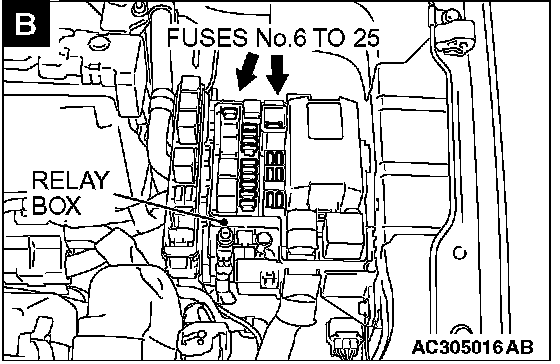

View B:

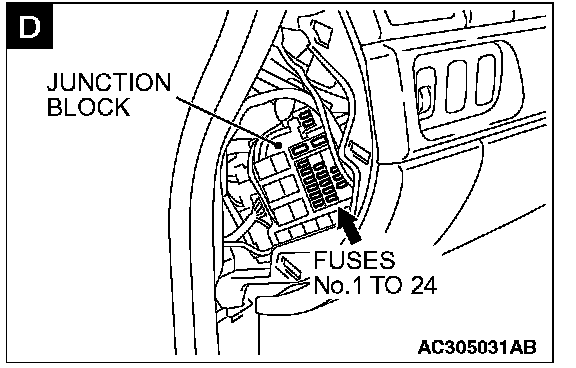

View D:
Overall View:

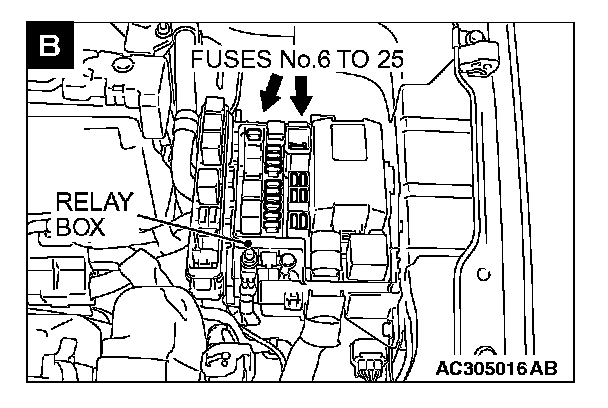

View B:
View D:
