Outside Temperature Display Sensor: Testing and Inspection

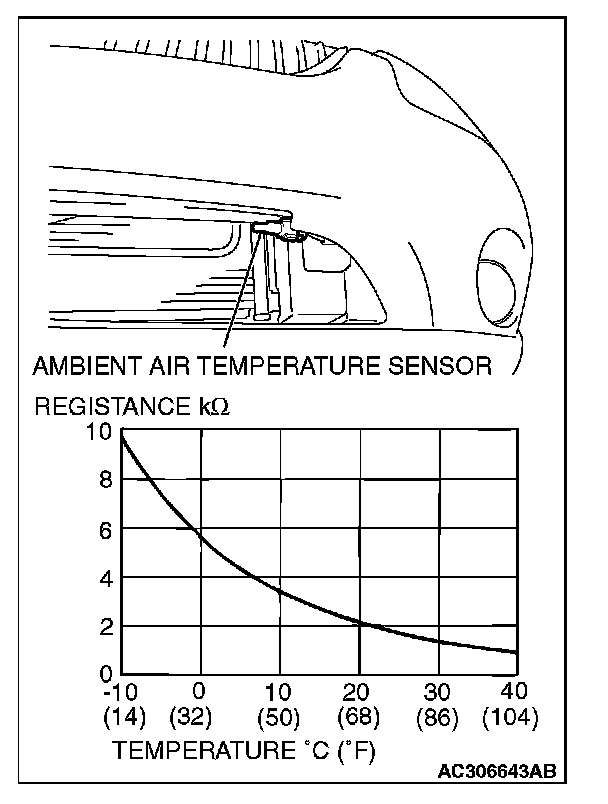

AMBIENT AIR TEMPERATURE SENSOR CHECK




The ambient air temperature sensor should be checked in situ. Once the sensor is removed, it is rendered unserviceable. Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown.

NOTE: The temperature should be within the shown range.
