Pinout Values and Diagnostic Parameters

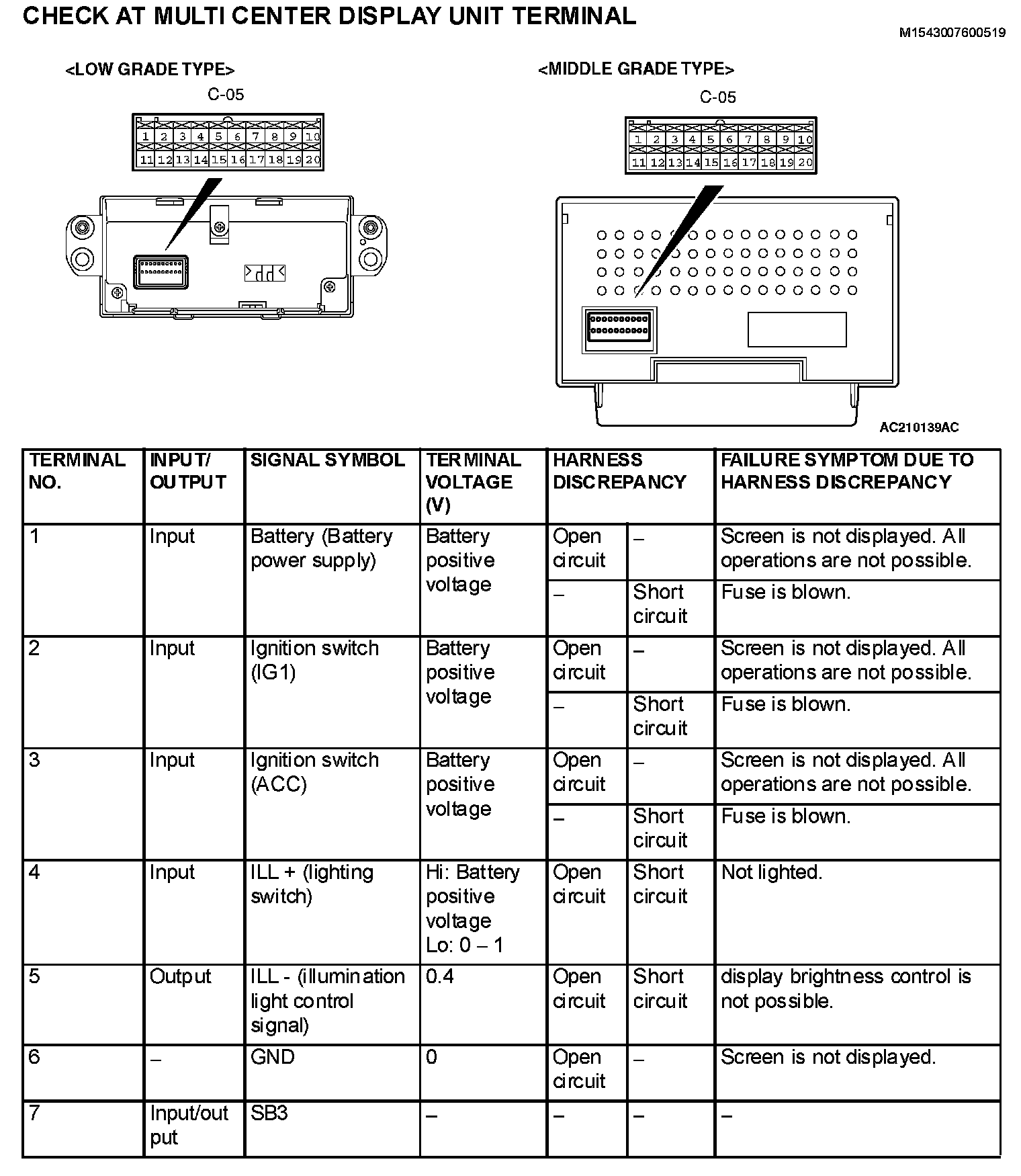

Check At Multi Center Display Unit Terminal Part 1:

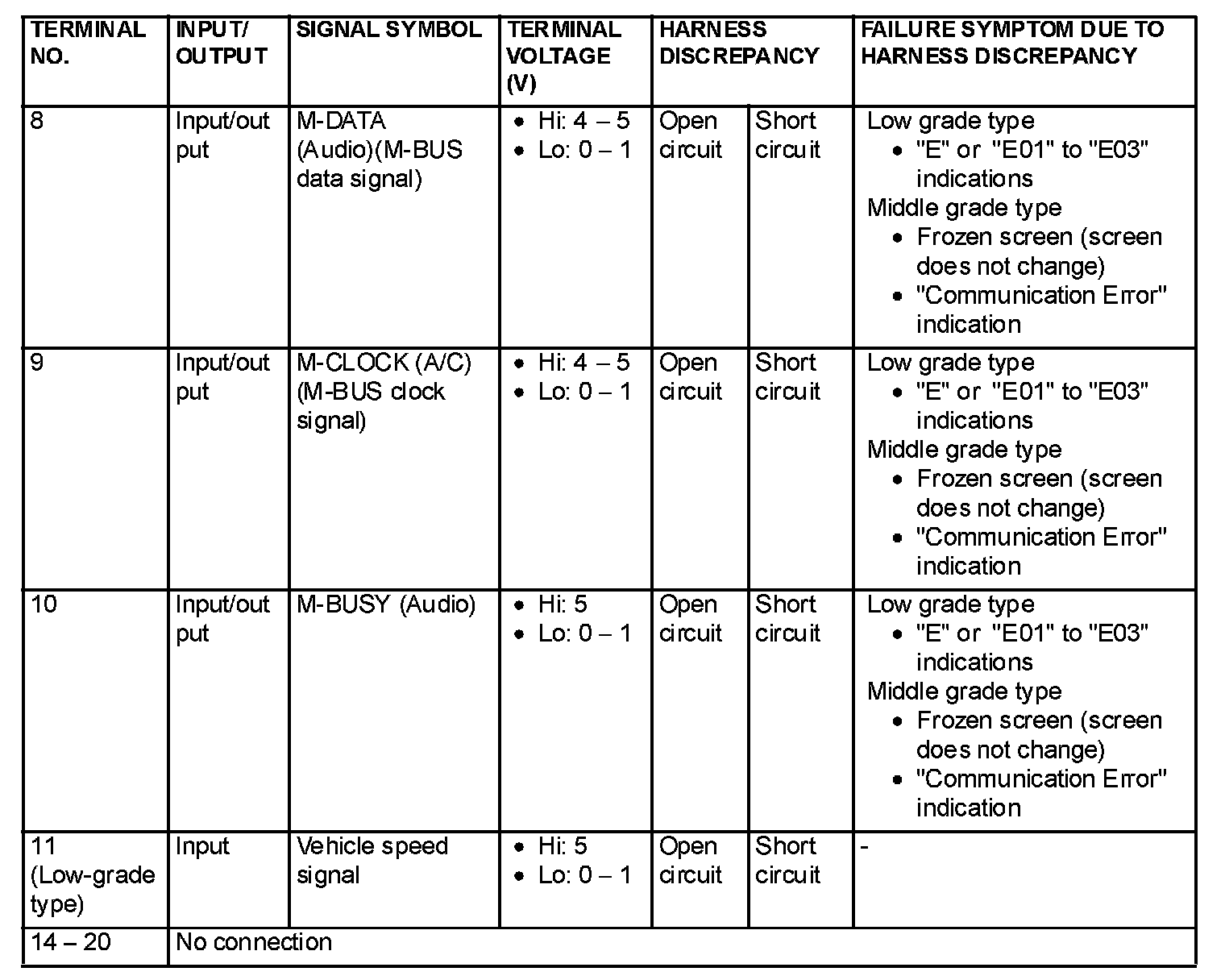

Check At Multi Center Display Unit Terminal Part 2:
