Transmission Control Systems

The content of this article reflects the changes identified in TSB-08-13-001.

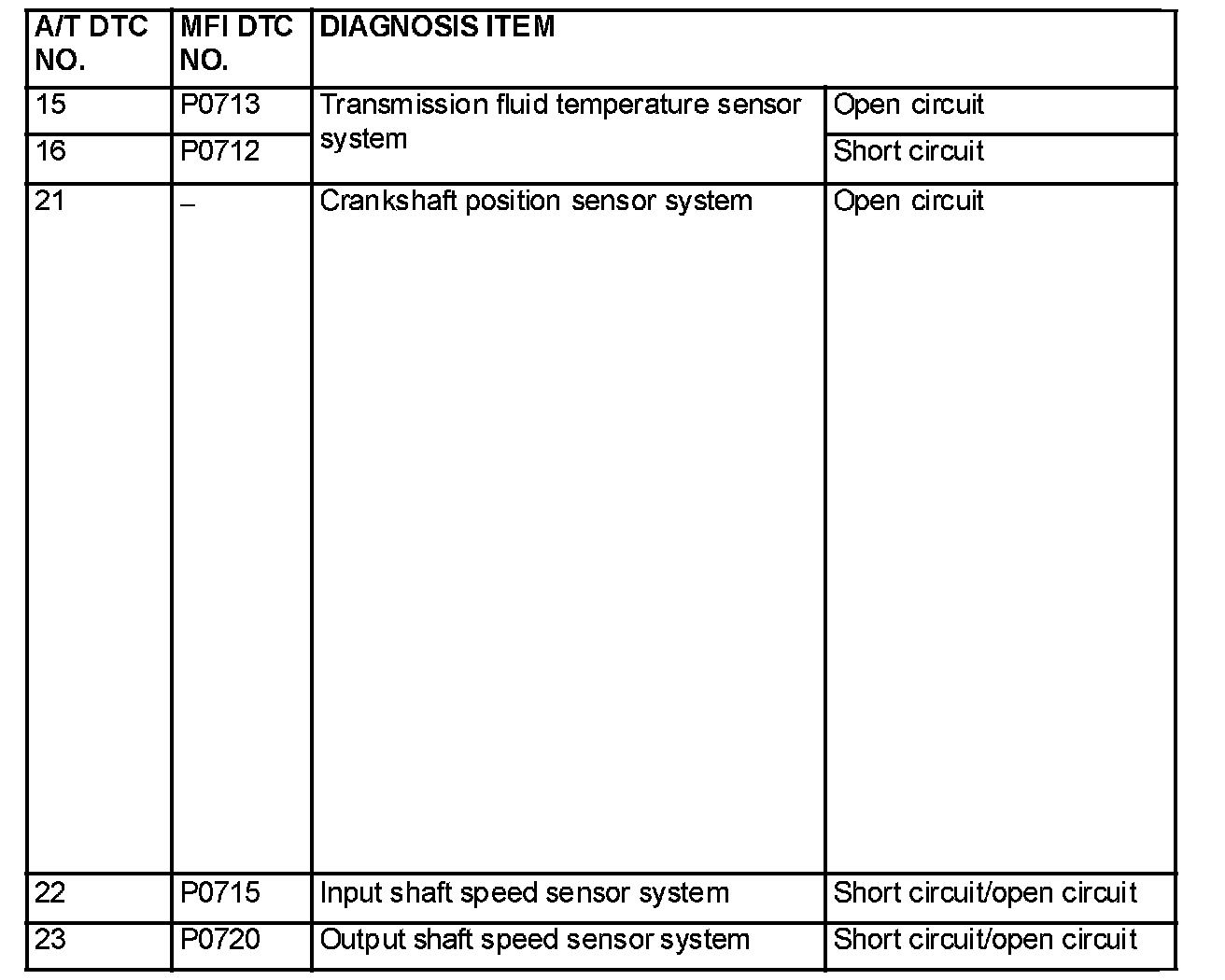

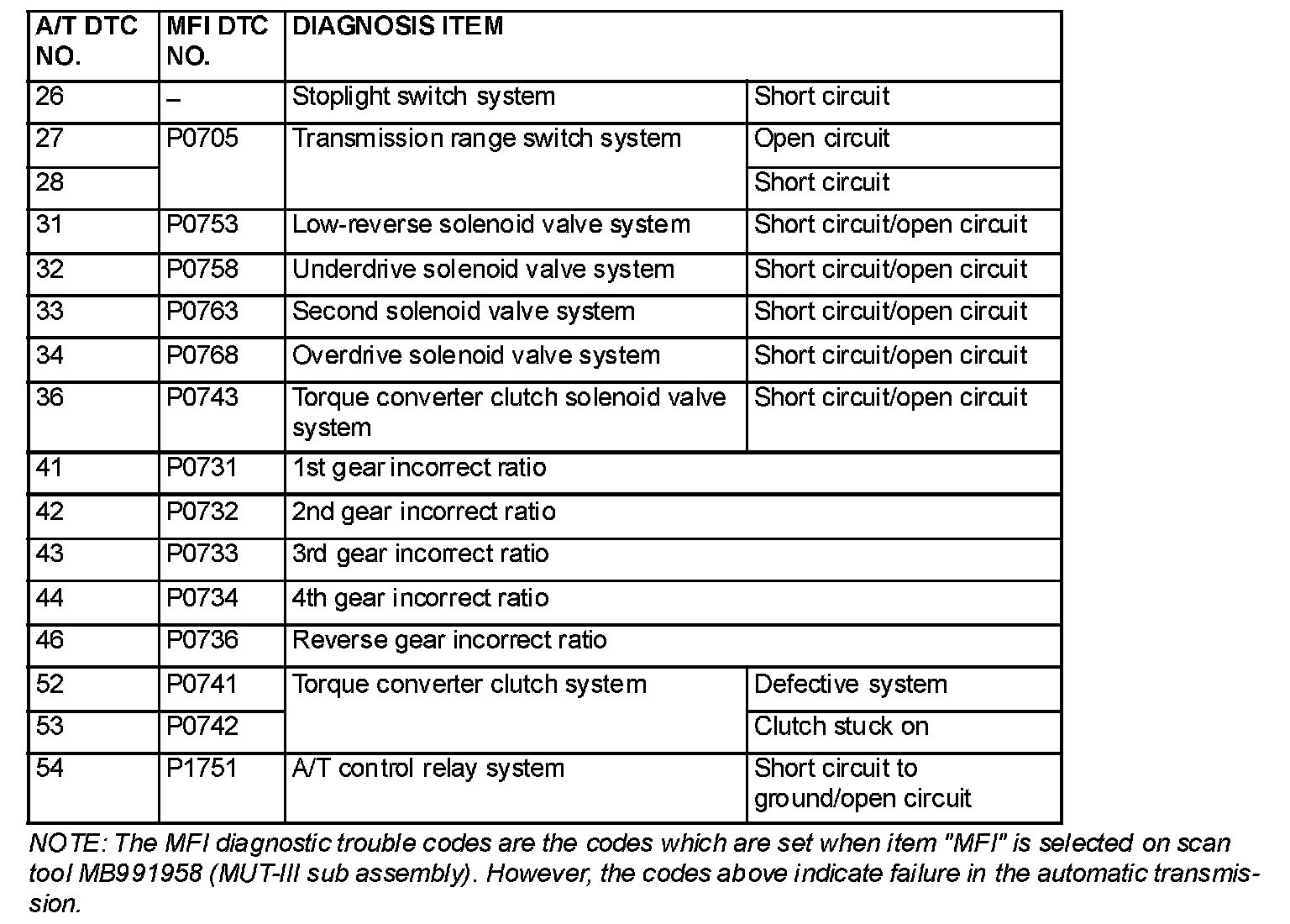

DIAGNOSTIC TROUBLE CODE CHART

DTC's relating to CAN-BUS (U0121-U1110):

CAUTION: During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.
