Home
>>
Mitsubishi
>>
2005
>>
Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Suspension Strut / Shock Absorber
>>
Removal and Installation
Removal and Installation

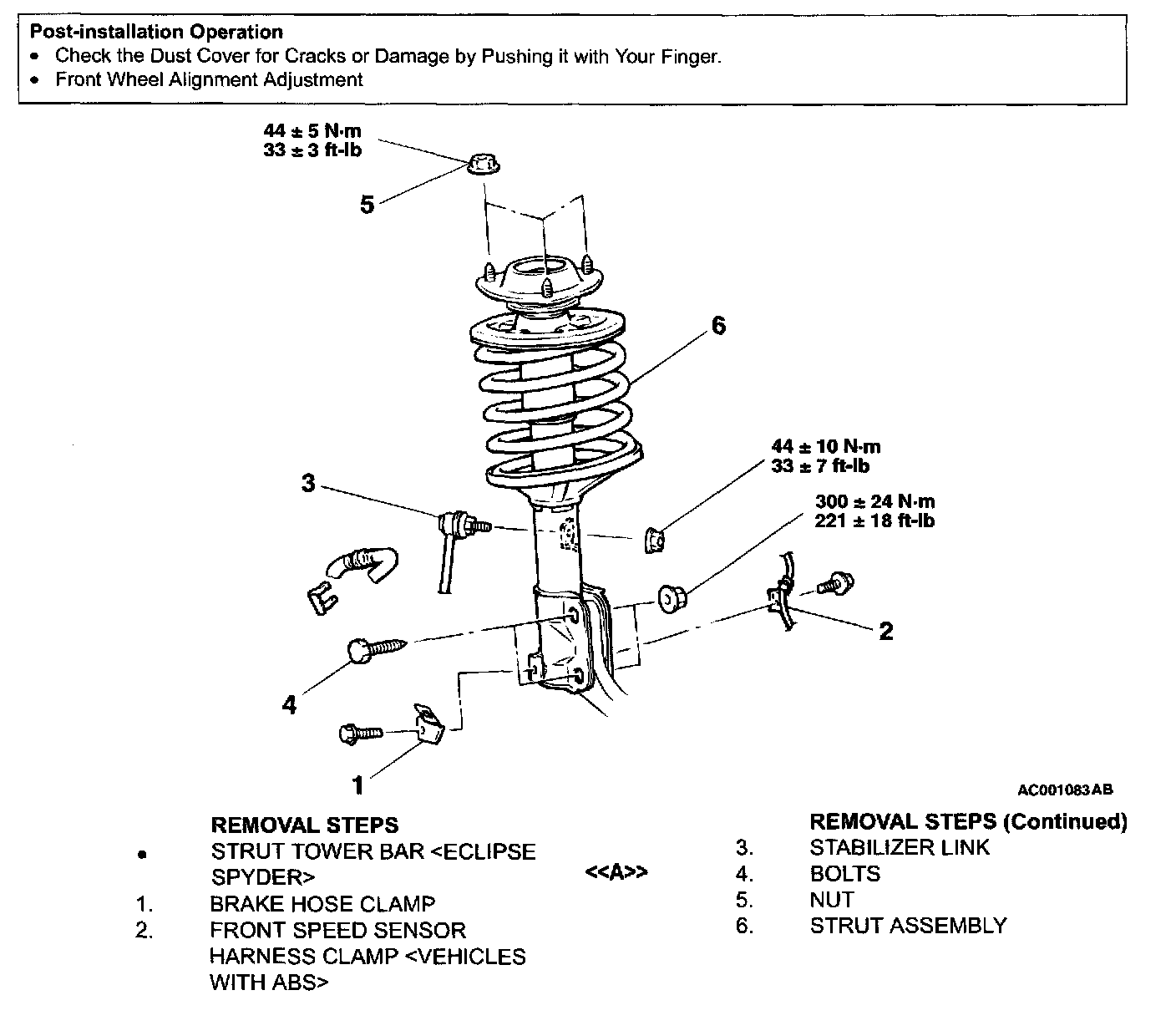

STRUT ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
