Mitsubishi
>>
2005
>>
Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Clutch Housing
Clutch Housing

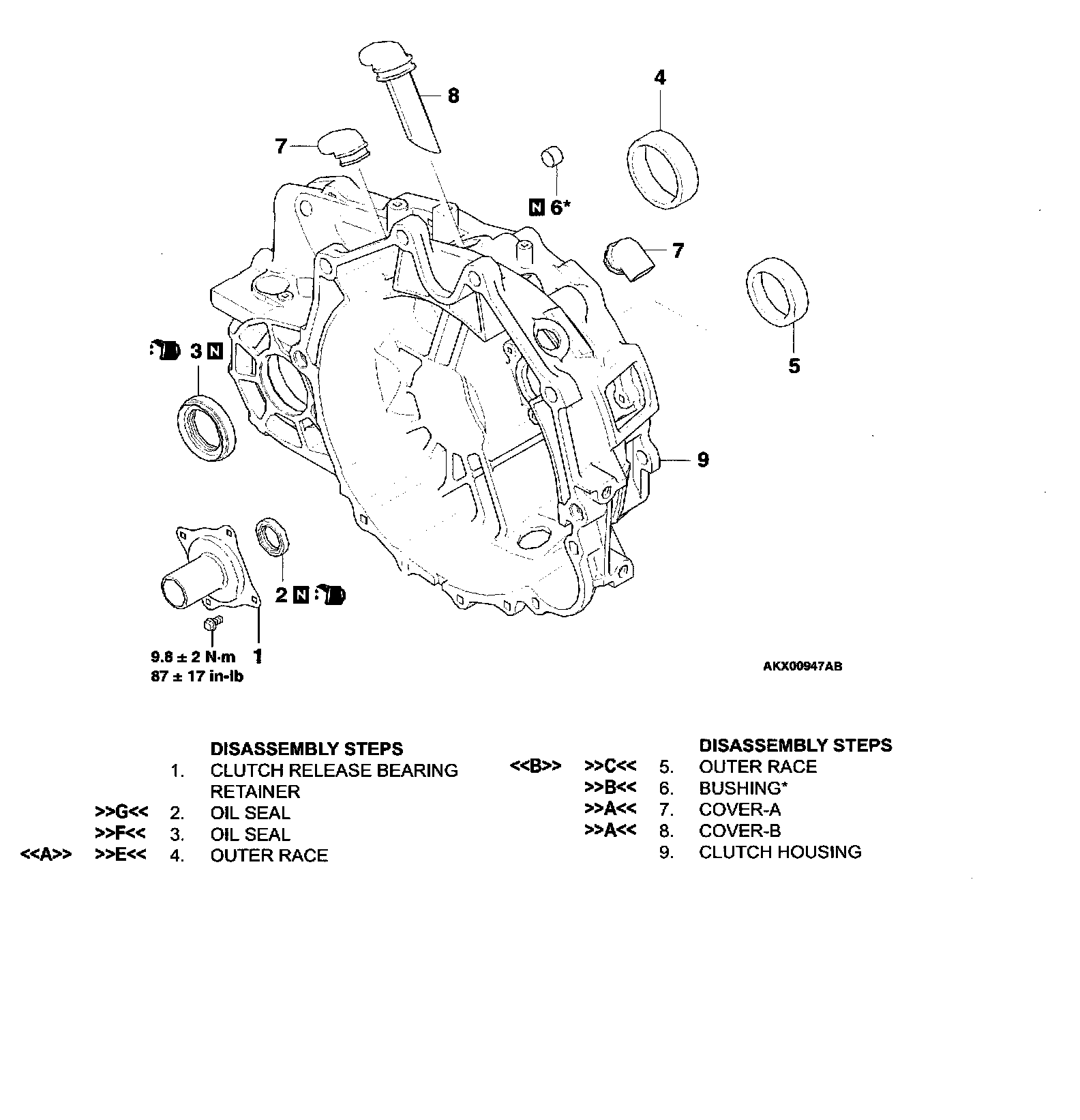

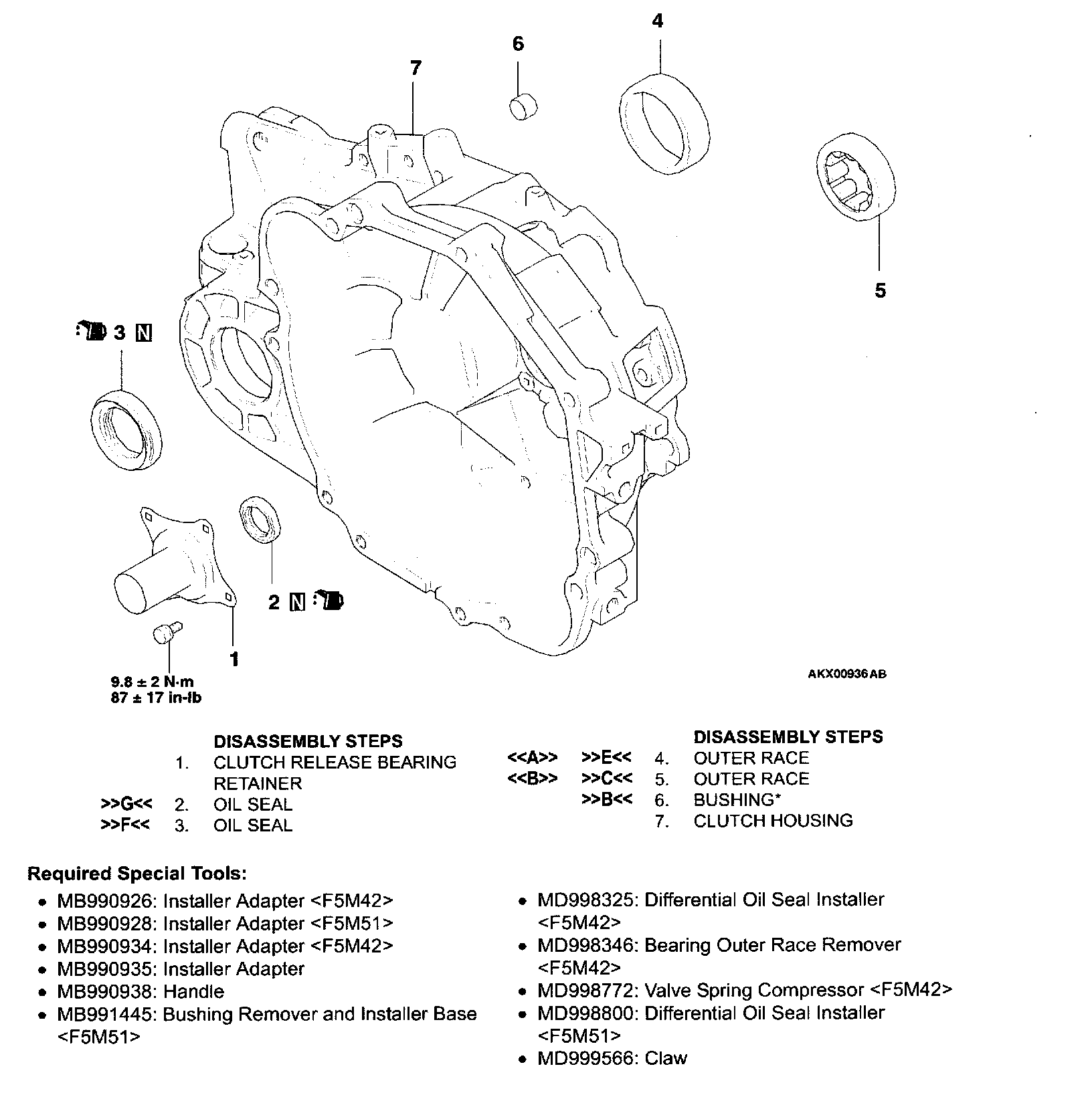

CLUTCH HOUSING OVERHAUL W/ RELATED COMPONENTS
