Clutch, M/T
>>
Clutch Pedal Assembly

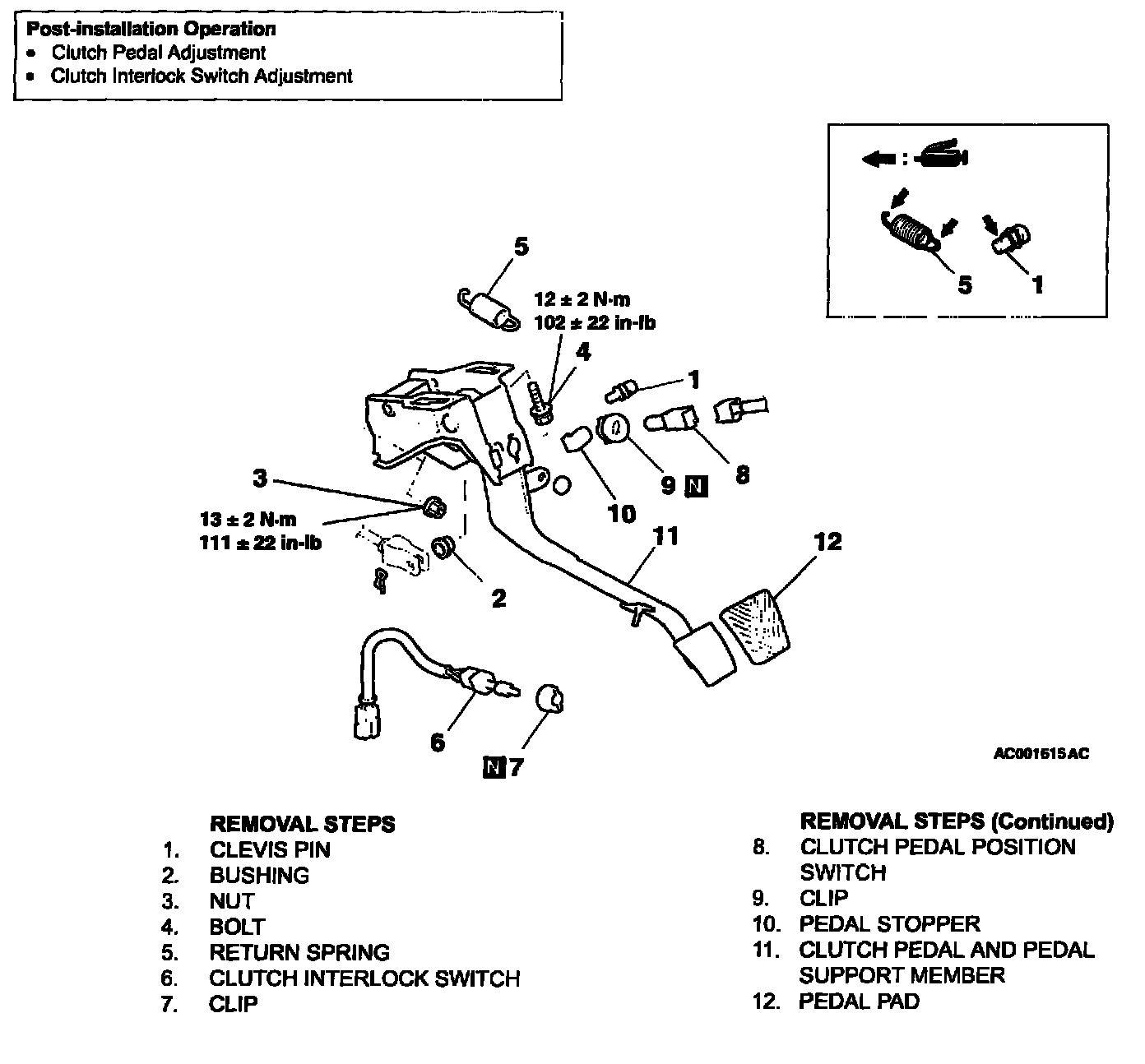

Clutch Pedal Assembly
CLUTCH PEDAL REPLACEMENT W/ RELATED COMPONENTS
