Home
>>
Mitsubishi
>>
2004
>>
Lancer L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

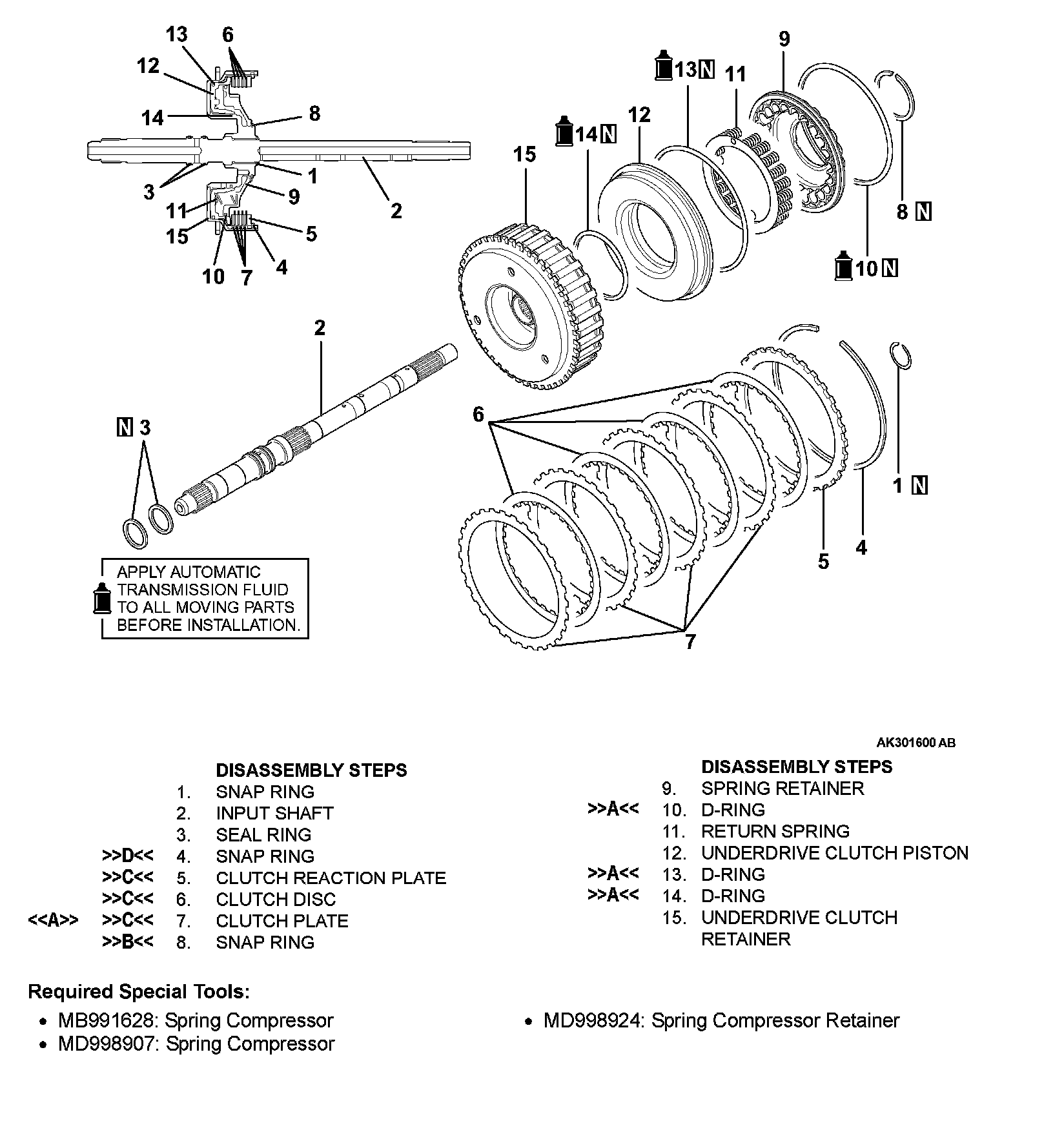

Underdrive Clutch and Input Shaft
Underdrive Clutch and Input Shaft
