Front Seat Belt

FRONT SEAT BELT

REMOVAL AND INSTALLATION

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS - Seat Belt with Pretensioner.

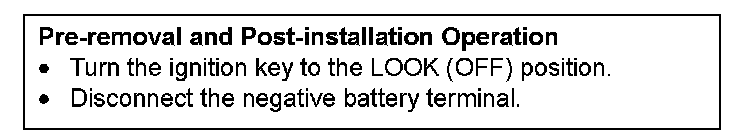

Pre-removal & Post-installation Operation:

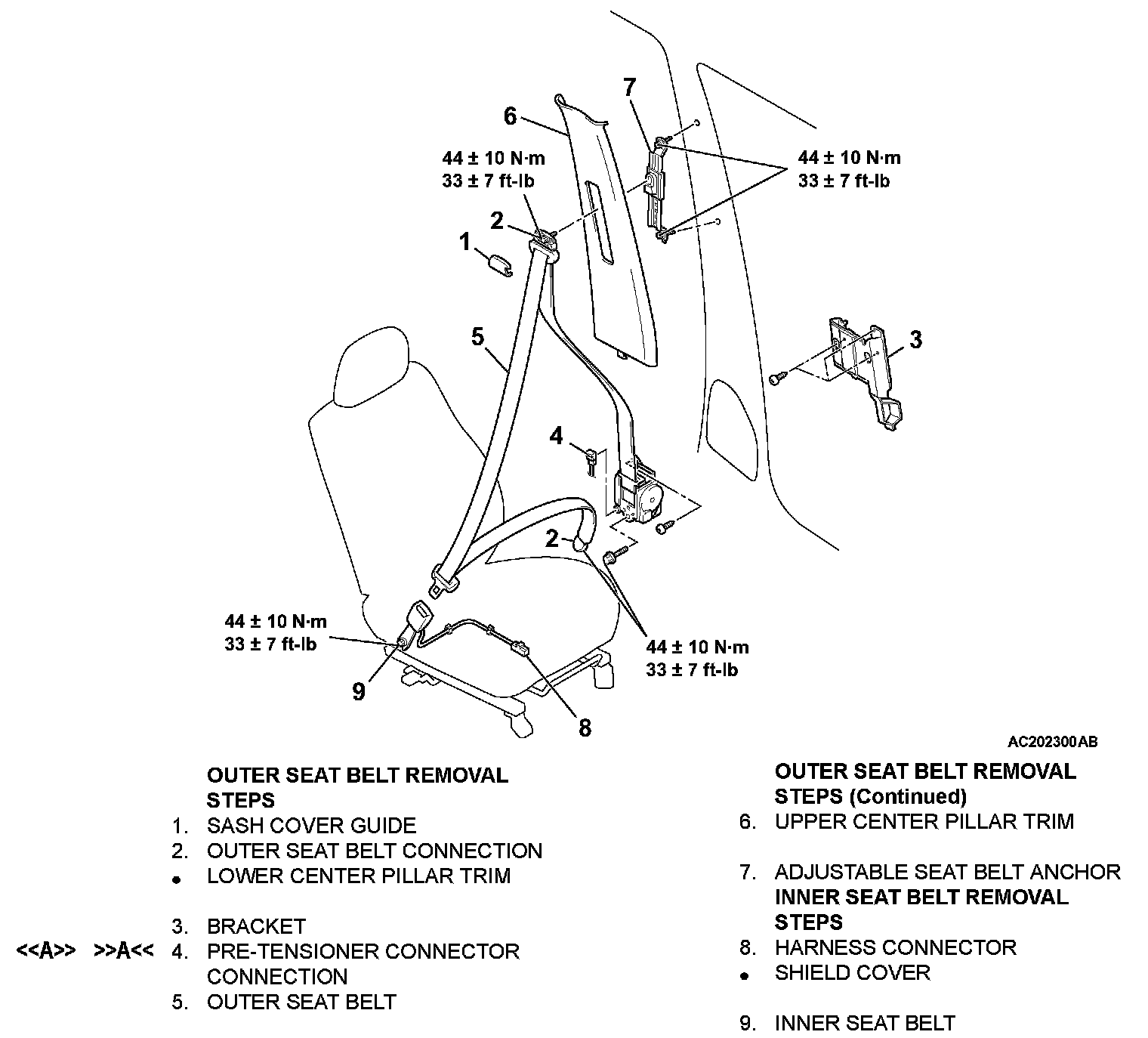

Removal Steps 1-9:

REMOVAL SERVICE POINTS

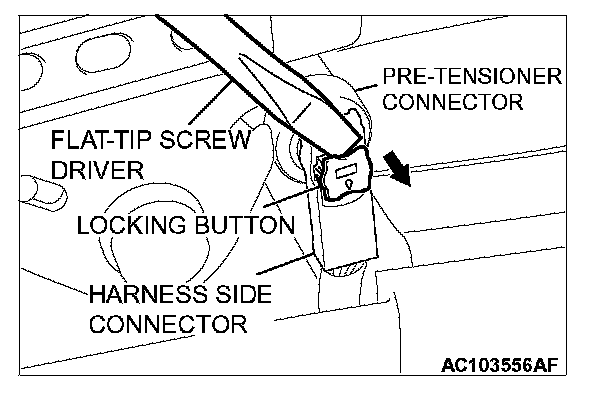

[[A]] PRE-TENSIONER CONNECTOR REMOVAL






Use a flat-tipped screwdriver to pull forward the locking button of the harness connector and unlock.

INSTALLATION SERVICE POINTS

]]A[[ PRE-TENSIONER HARNESS CONNECTOR INSTALLATION
Securely lock the locking button of the harness side connectors.
