Power Steering Pump: Service and Repair

POWER STEERING OIL PUMP ASSEMBLY
REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

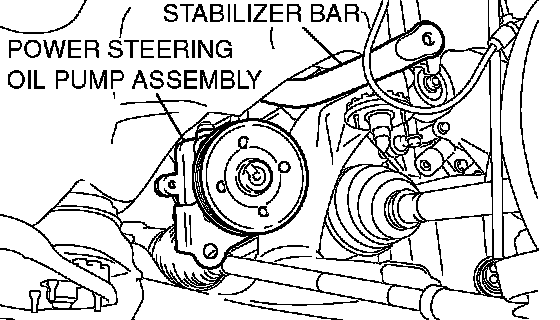

[[A]] POWER STEERING OIL PUMP ASSEMBLY REMOVAL





Turn up the stabilizer disconnected from the stabilizer link fully, and remove the power steering oil pump assembly after turning the steering wheel fully to left.

INSTALLATION SERVICE POINT

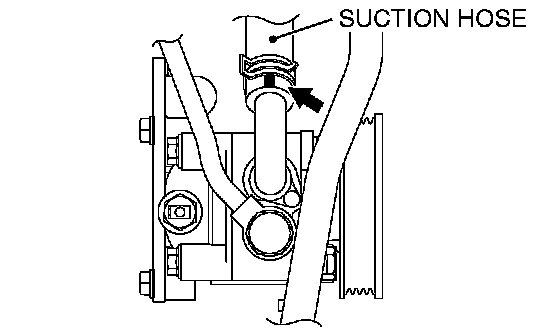

]]A[[ SUCTION HOSE INSTALLATION





Install the suction hose so that the marking is positioned as shown in the illustration.

INSPECTION
^ Check the drive belt for cracks.
^ Check the pulley for uneven rotation.
