Removal and Installation

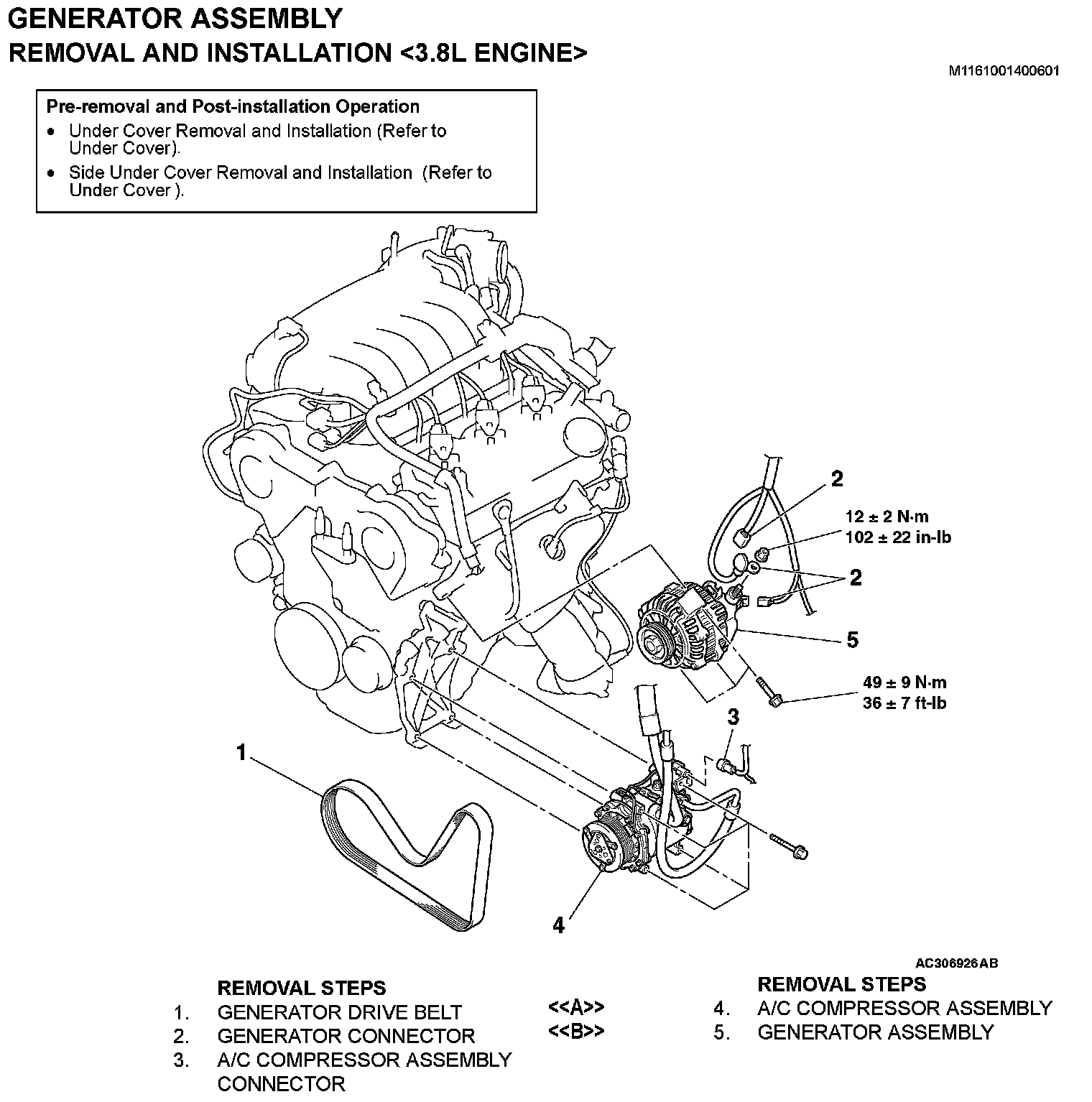

GENERATOR ASSEMBLY
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> A/C COMPRESSOR ASSEMBLY REMOVAL
Remove the compressor from the compressor bracket with the hose still attached.
NOTE: Place the removed A/C compressor where it will not be a hindrance when removing and installing the generator, and secure it with a cord or wire.
<> GENERATOR ASSEMBLY REMOVAL
Move the A/C compressor assembly to one side, and then remove the generator assembly from under the vehicle.
