Removal and Installation

THROTTLE BODY ASSEMBLY

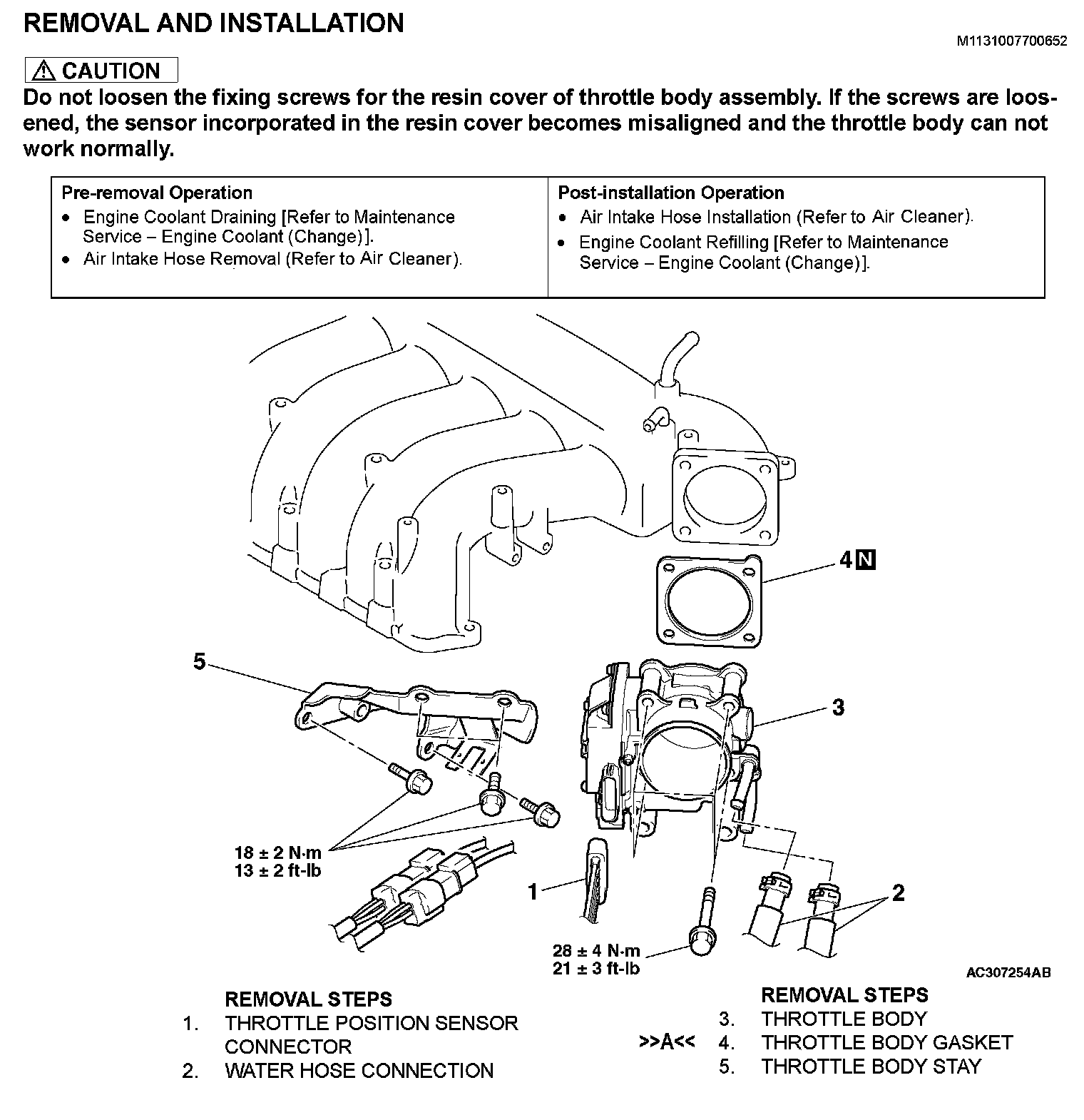

REMOVAL AND INSTALLATION

CAUTION: Do not loosen the fixing screws for the resin cover of throttle body assembly If the screws are loosened, the sensor incorporated in the resin cover becomes misaligned and the throttle body can not work normally.

INSTALLATION SERVICE POINT

>>A<

CAUTION: Poor idling etc may result if the throttle body gasket is installed incorrectly.

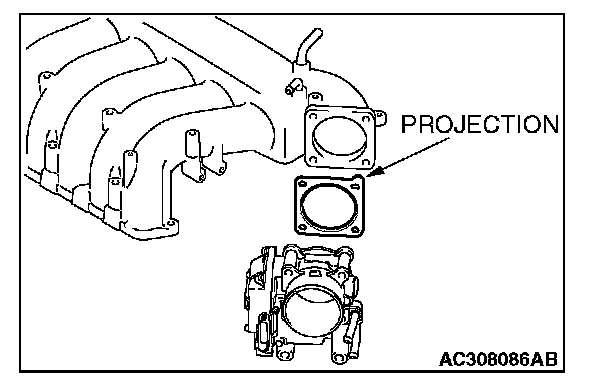

Install the gasket as its protrusion is in the direction shown.
