Component Locations

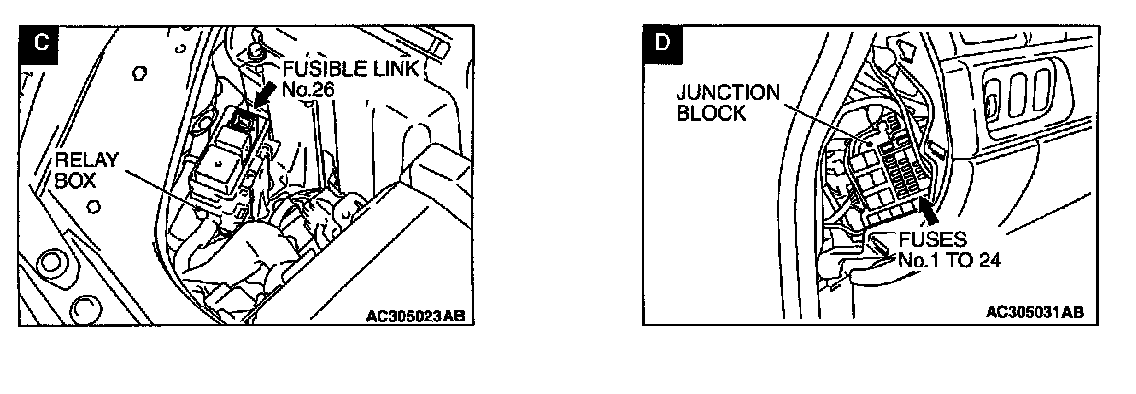

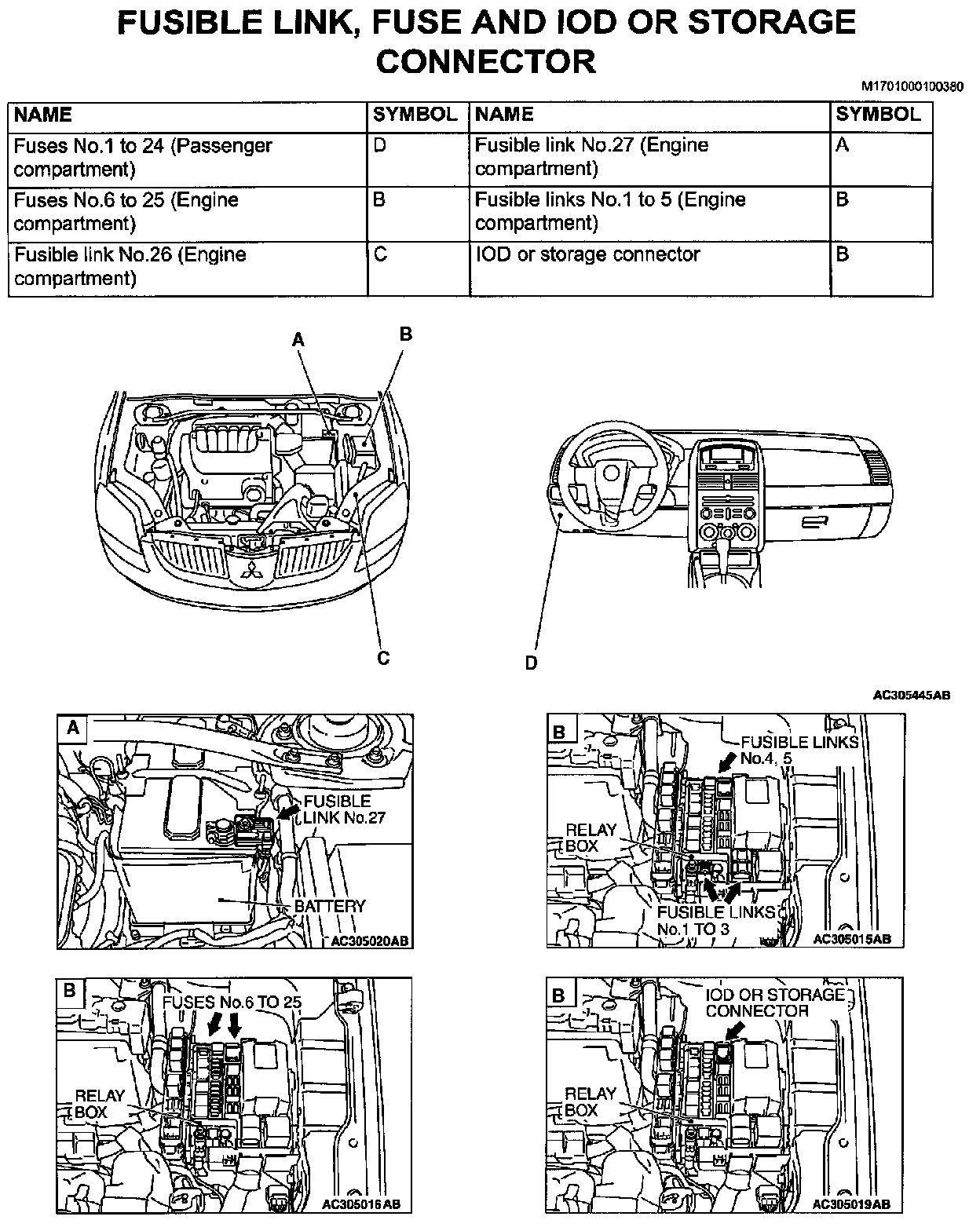

Locations (1 Of 2):

Locations (2 Of 2):

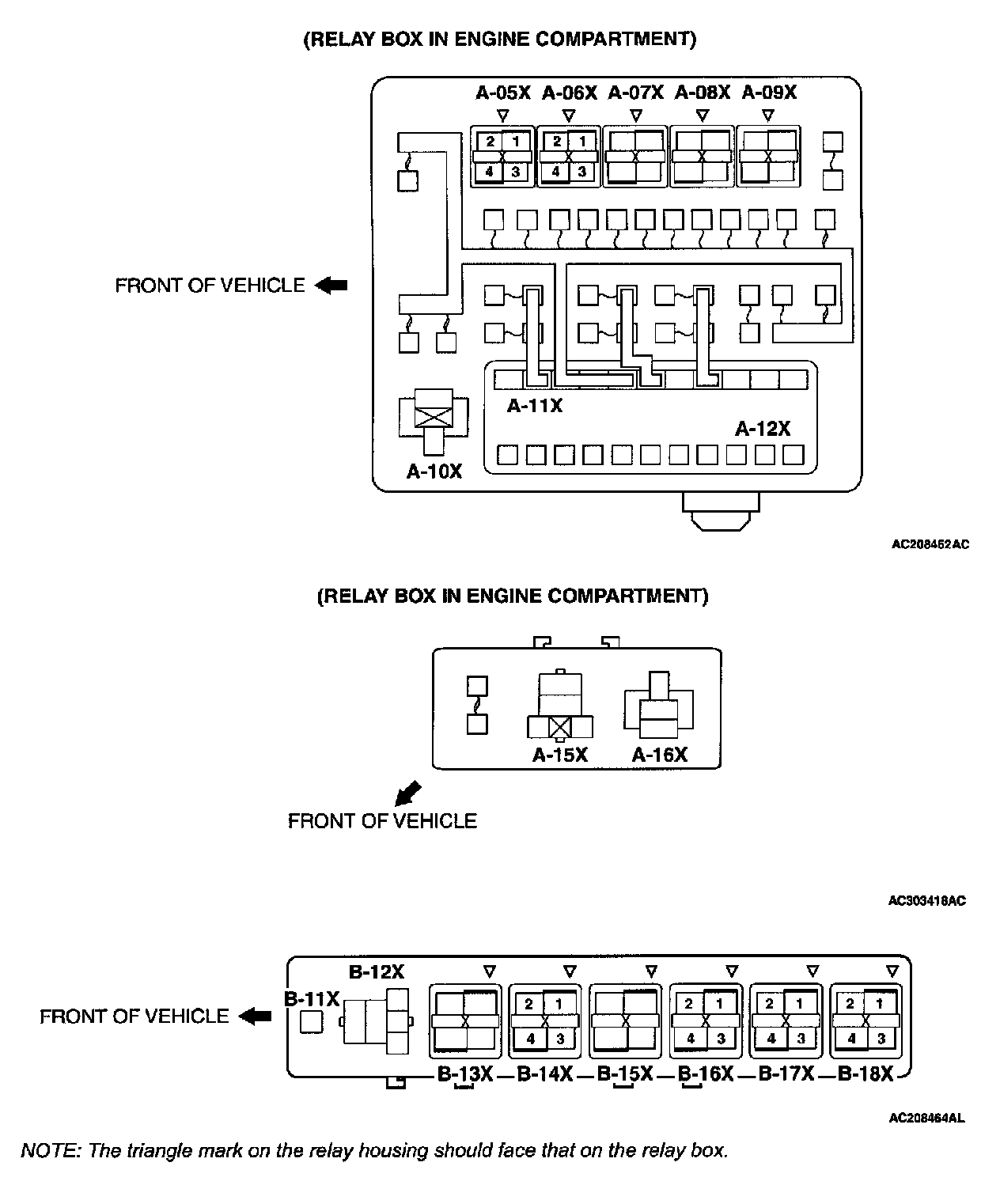

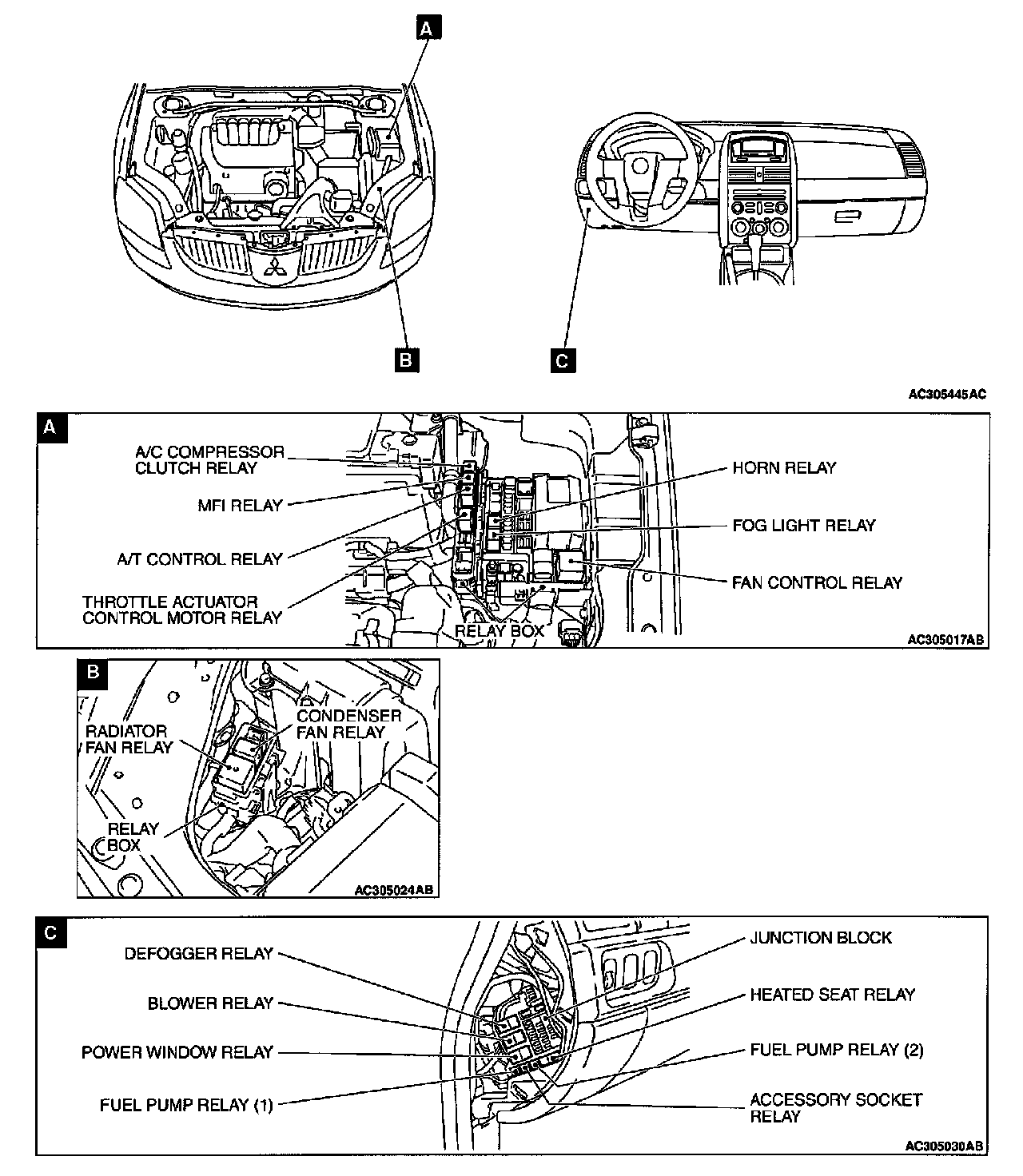

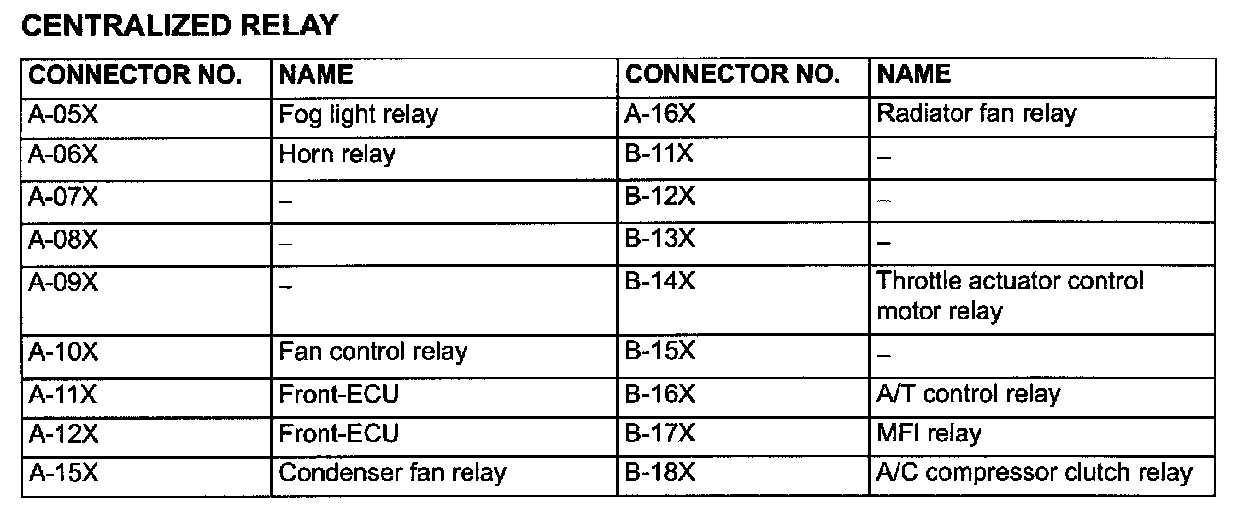

Relay Locations (1 Of 2):

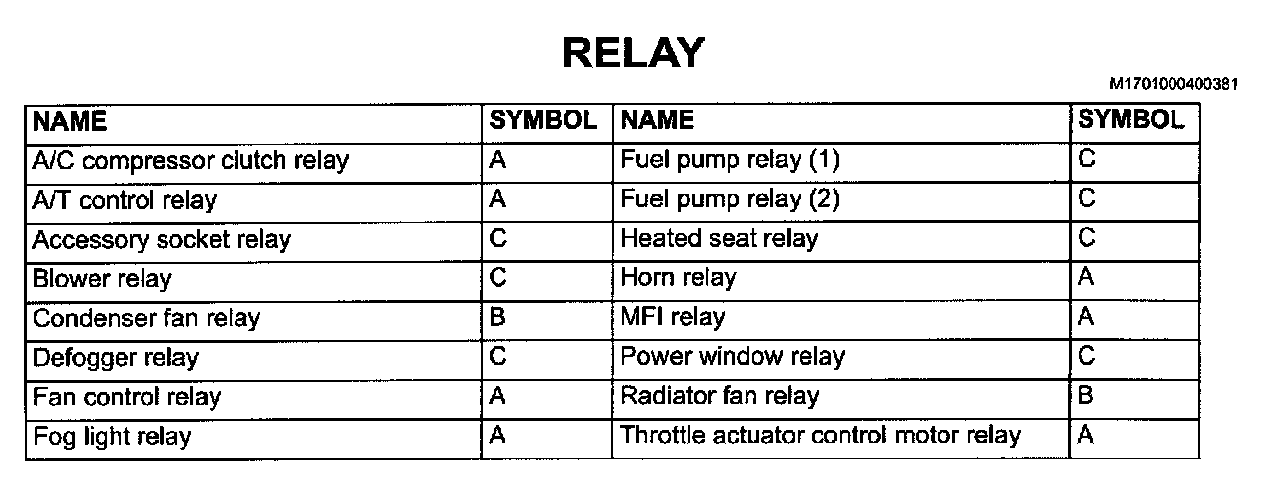

Relay Locations (2 Of 2):

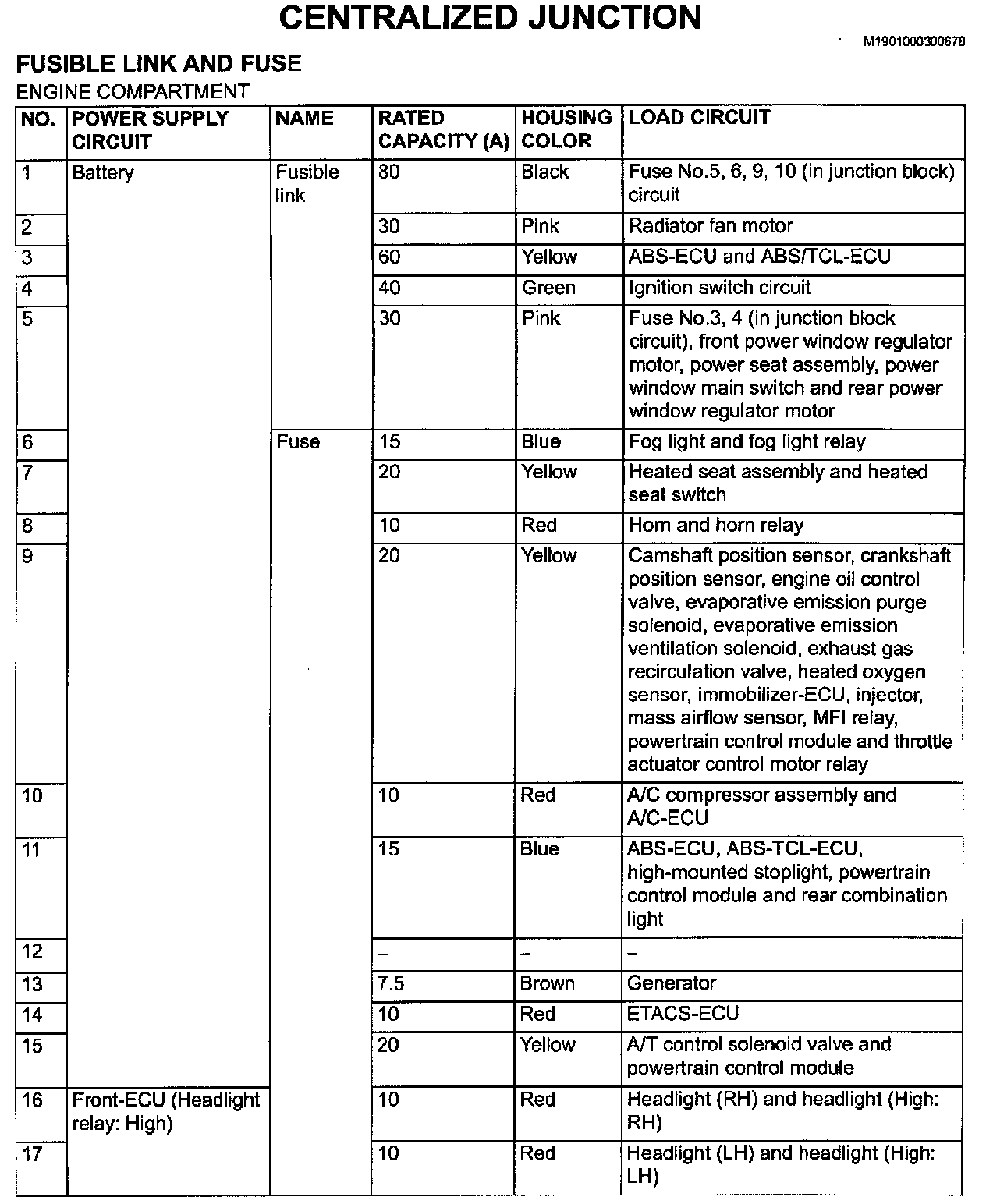

Fuses 1-27 (1 Of 3):

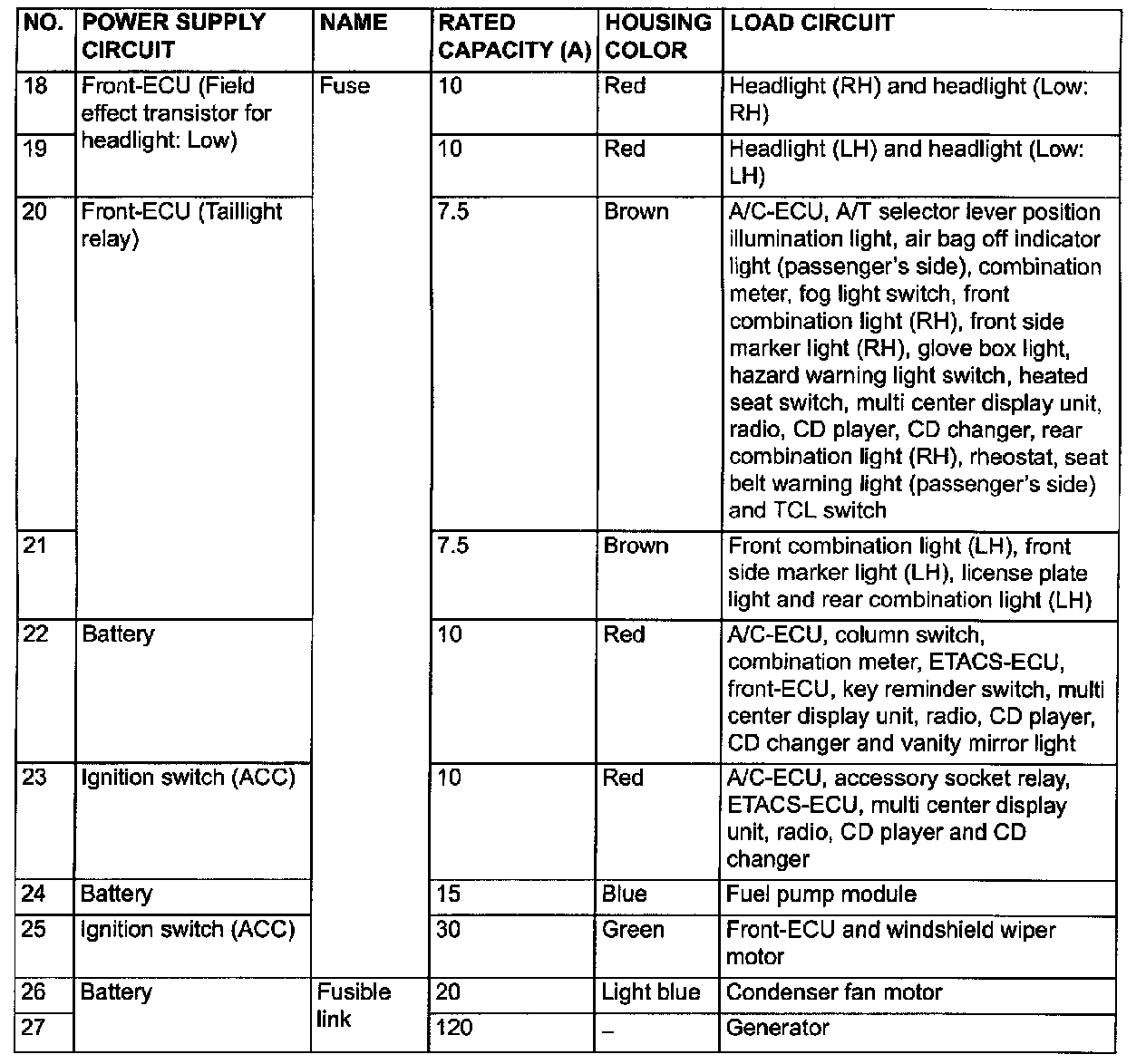

Fuses 1-27 (2 Of 3):

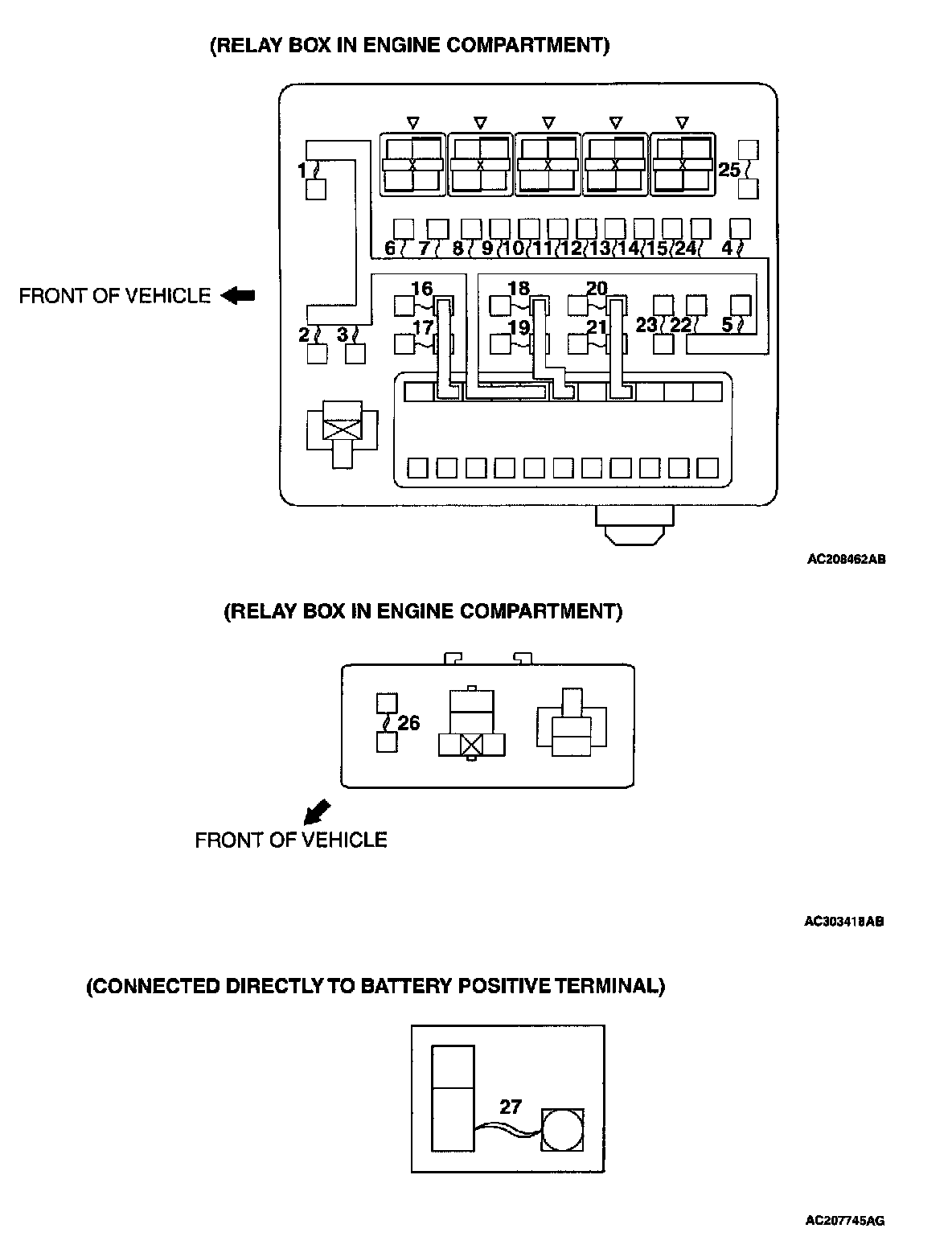

Fuses 1-27 (3 Of 3):

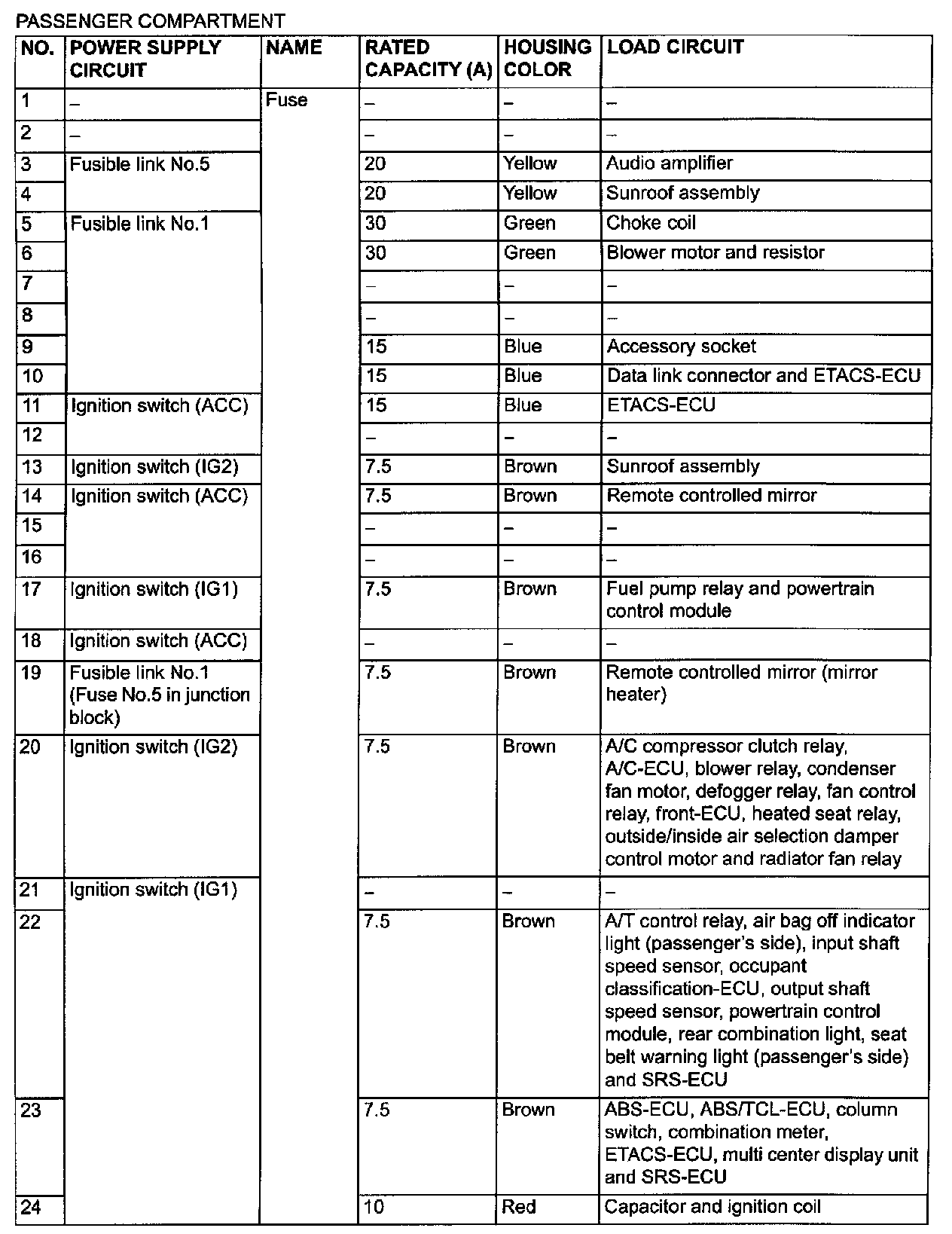

Fuses 1-24 (1 Of 2):

Fuses 1-24 (2 Of 2):
