Water Pump: Service and Repair

WATER PUMP

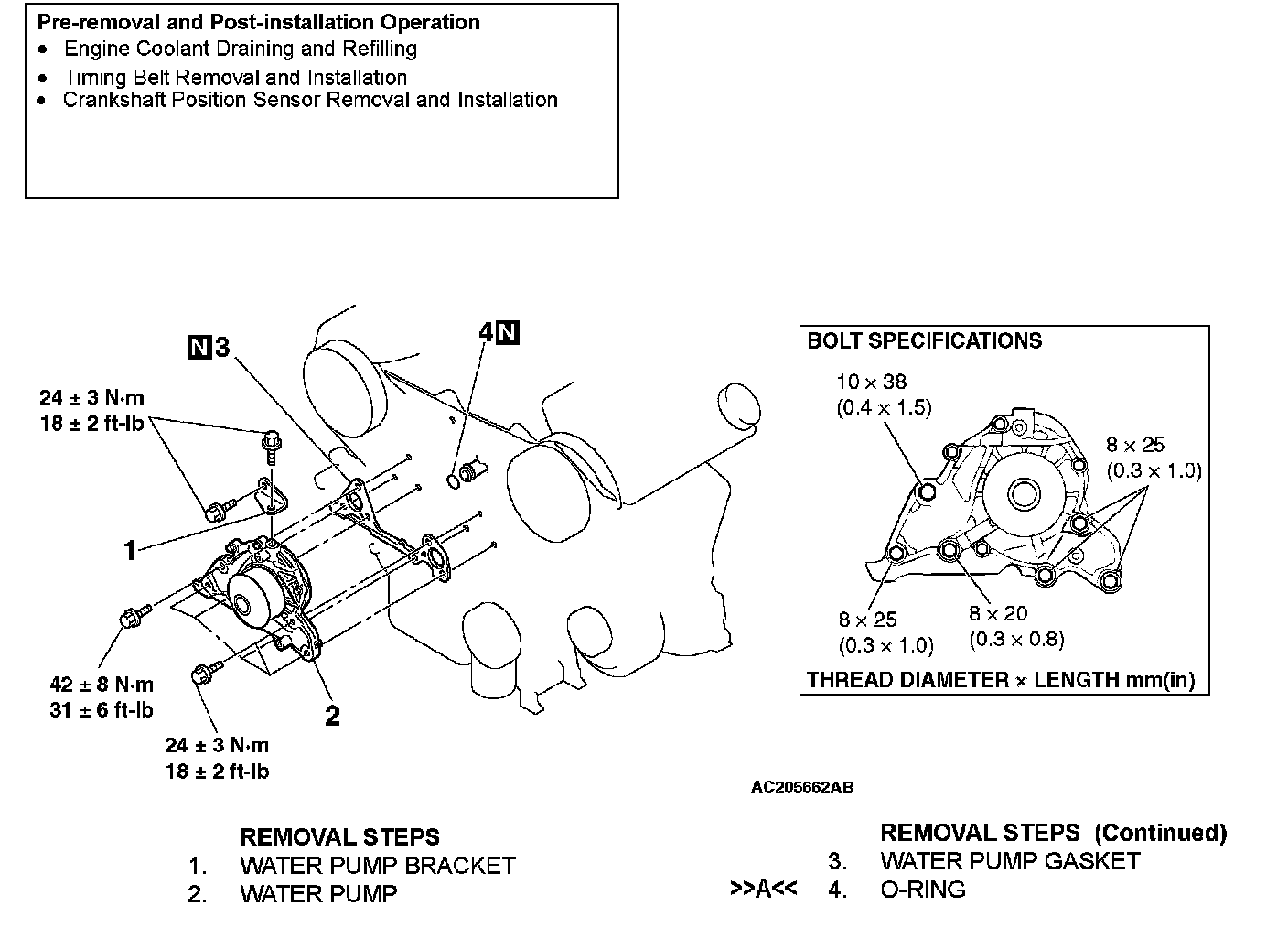

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

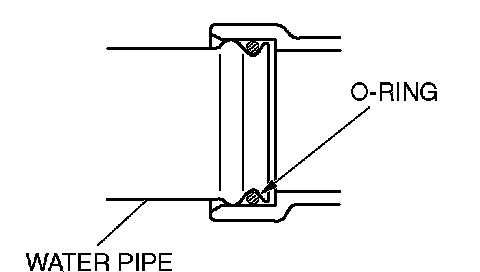

]]A[[ O-RING INSTALLATION

CAUTION: Do not let the O-ring get contaminated with grease or engine oil.





Fit the O-ring into the groove of the water pipe ends, and apply water or coolant to the circumference of the O-ring and the pipe bores to insert the pipe assembly.
