With Traction Control

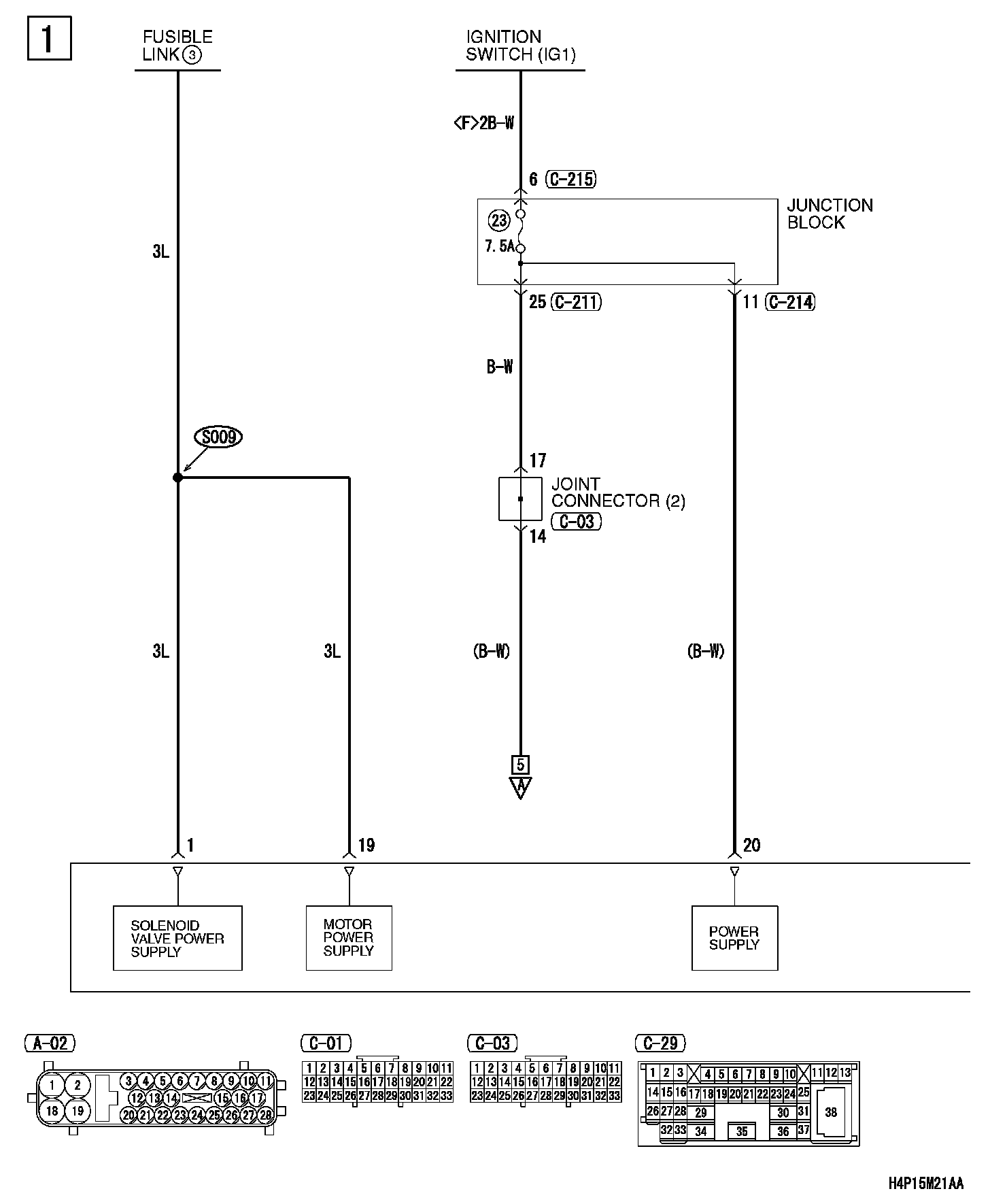

Eletronic Brake-force Distribution (EBD) And Antilock Braking System (ABS) <Vehicles With Traction Control (TCL)> Part 1:

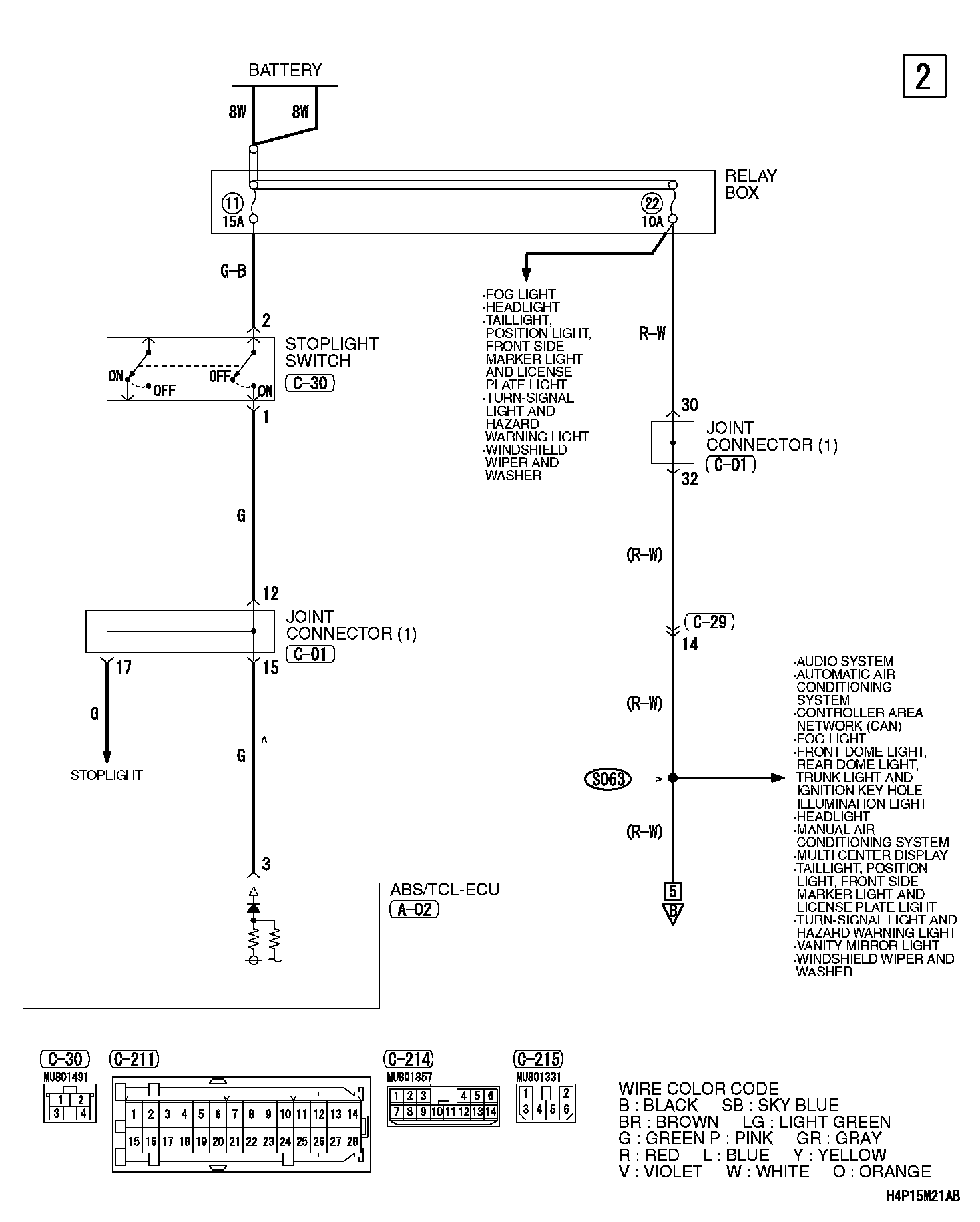

Eletronic Brake-force Distribution (EBD) And Antilock Braking System (ABS) <Vehicles With Traction Control (TCL)> Part 2:

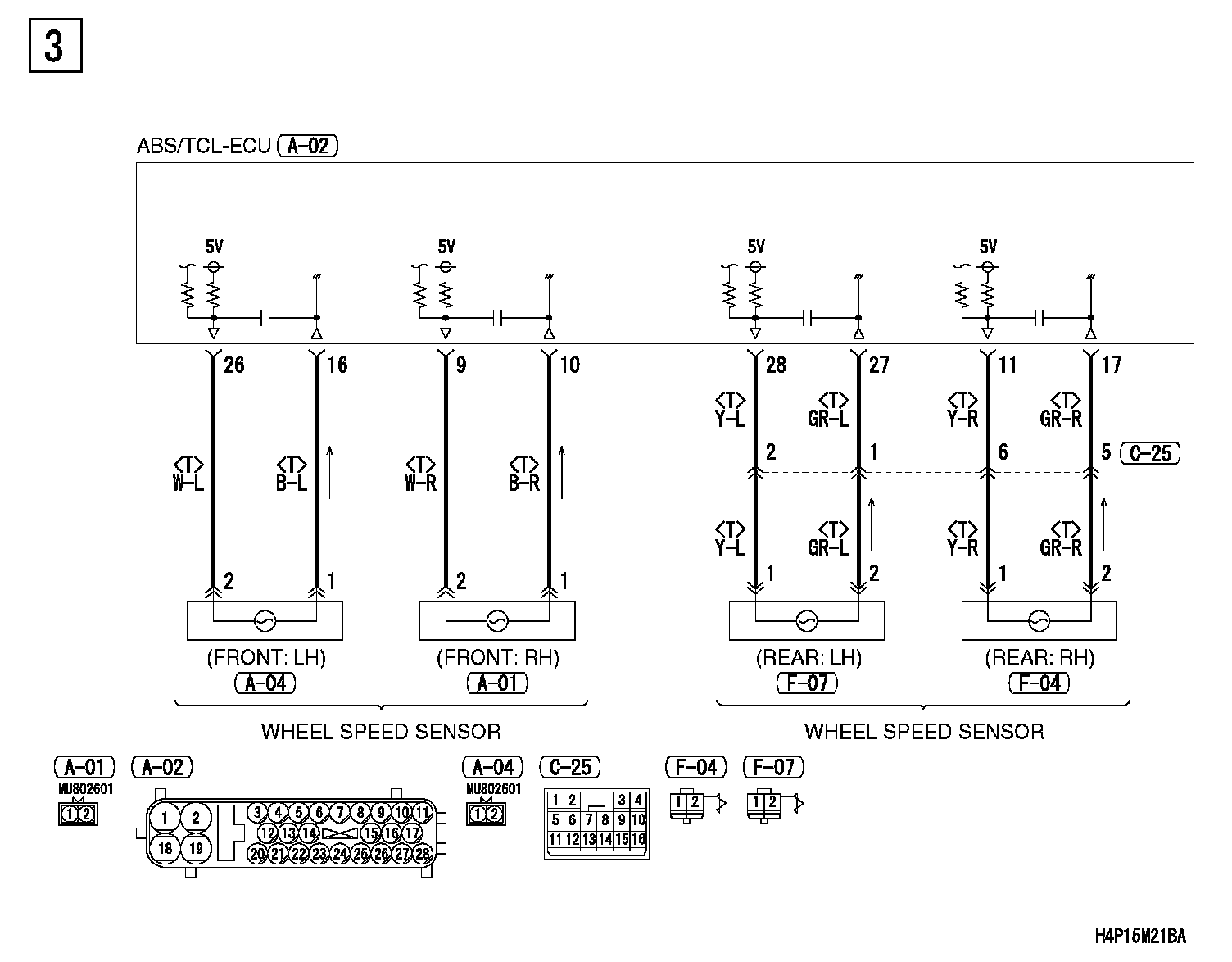

Eletronic Brake-force Distribution (EBD) And Antilock Braking System (ABS) <Vehicles With Traction Control (TCL)> Part 3:

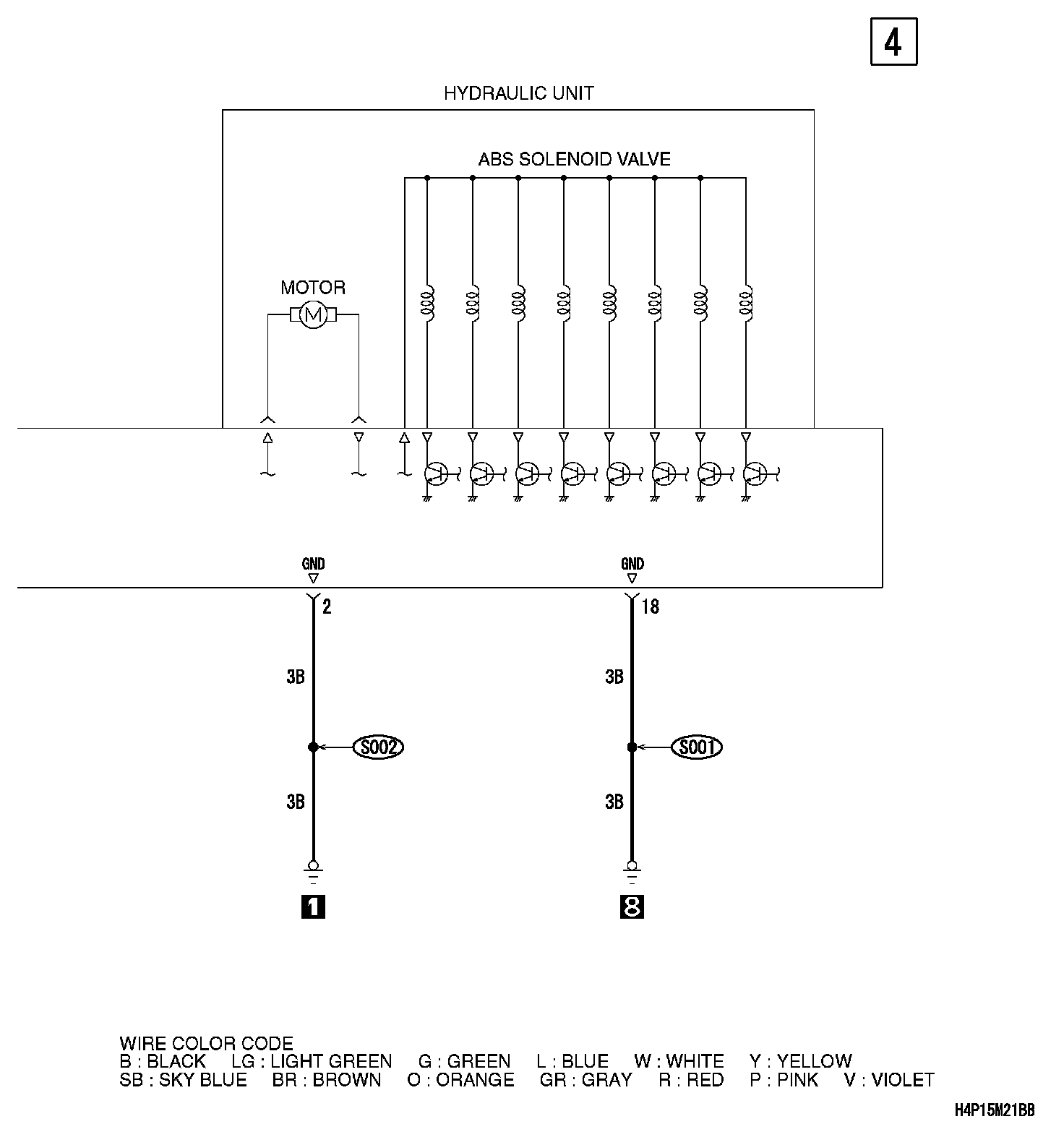

Eletronic Brake-force Distribution (EBD) And Antilock Braking System (ABS) <Vehicles With Traction Control (TCL)> Part 4:

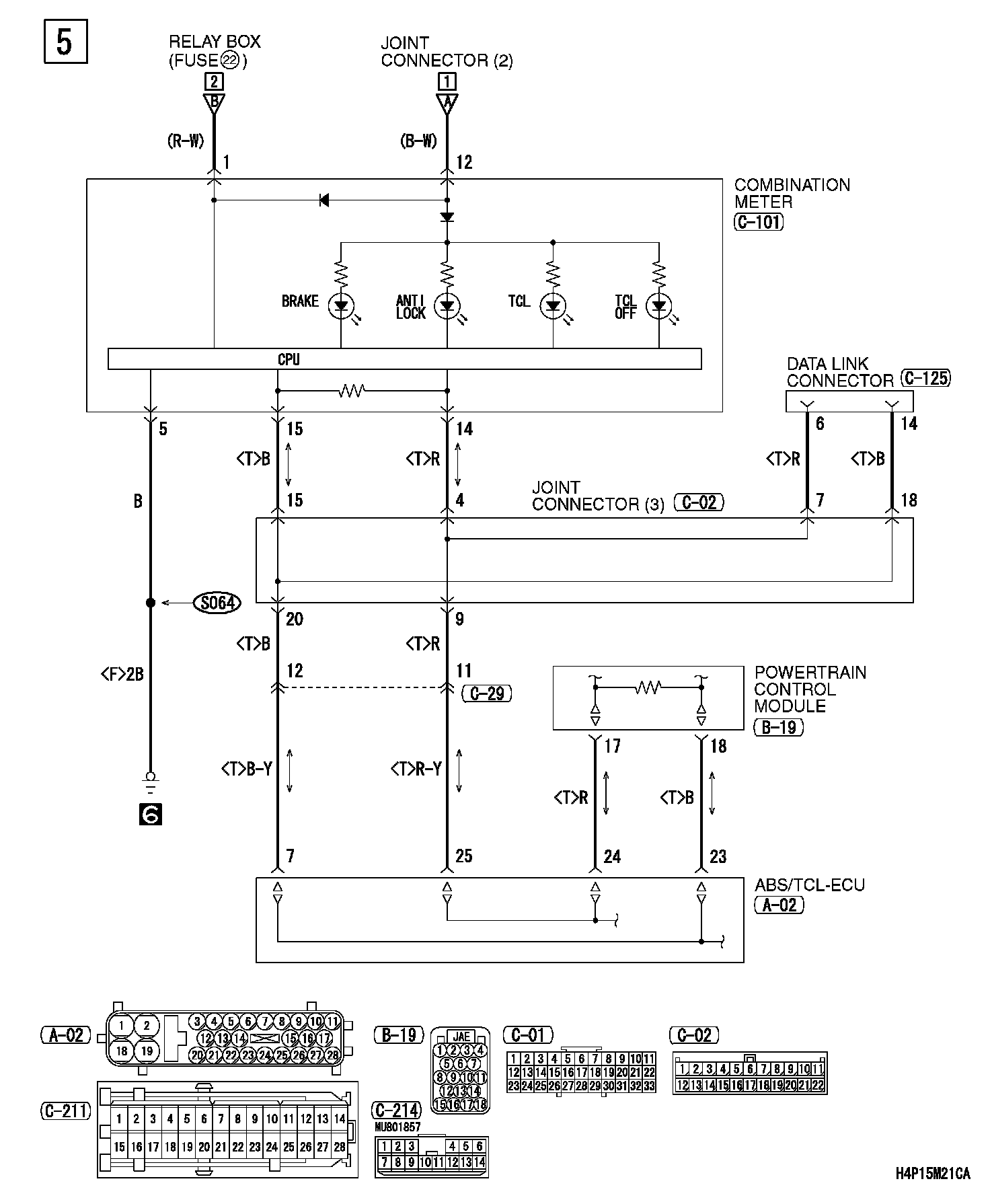

Eletronic Brake-force Distribution (EBD) And Antilock Braking System (ABS) <Vehicles With Traction Control (TCL)> Part 5:

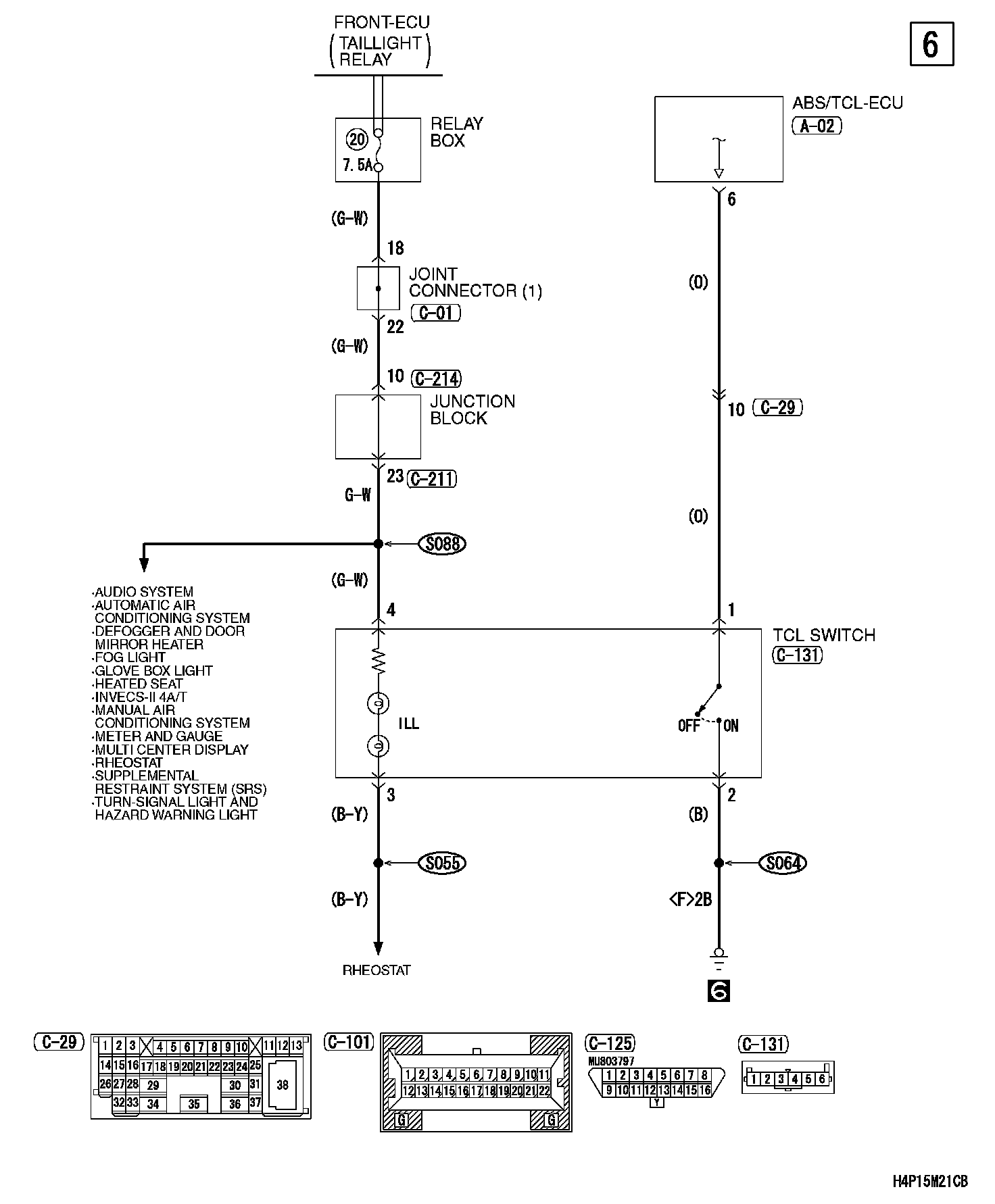

Eletronic Brake-force Distribution (EBD) And Antilock Braking System (ABS) <Vehicles With Traction Control (TCL)> Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
