Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2004
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Non-Trouble Code Procedures
>>
Standard Hydraulic Pressure Table
Standard Hydraulic Pressure Table

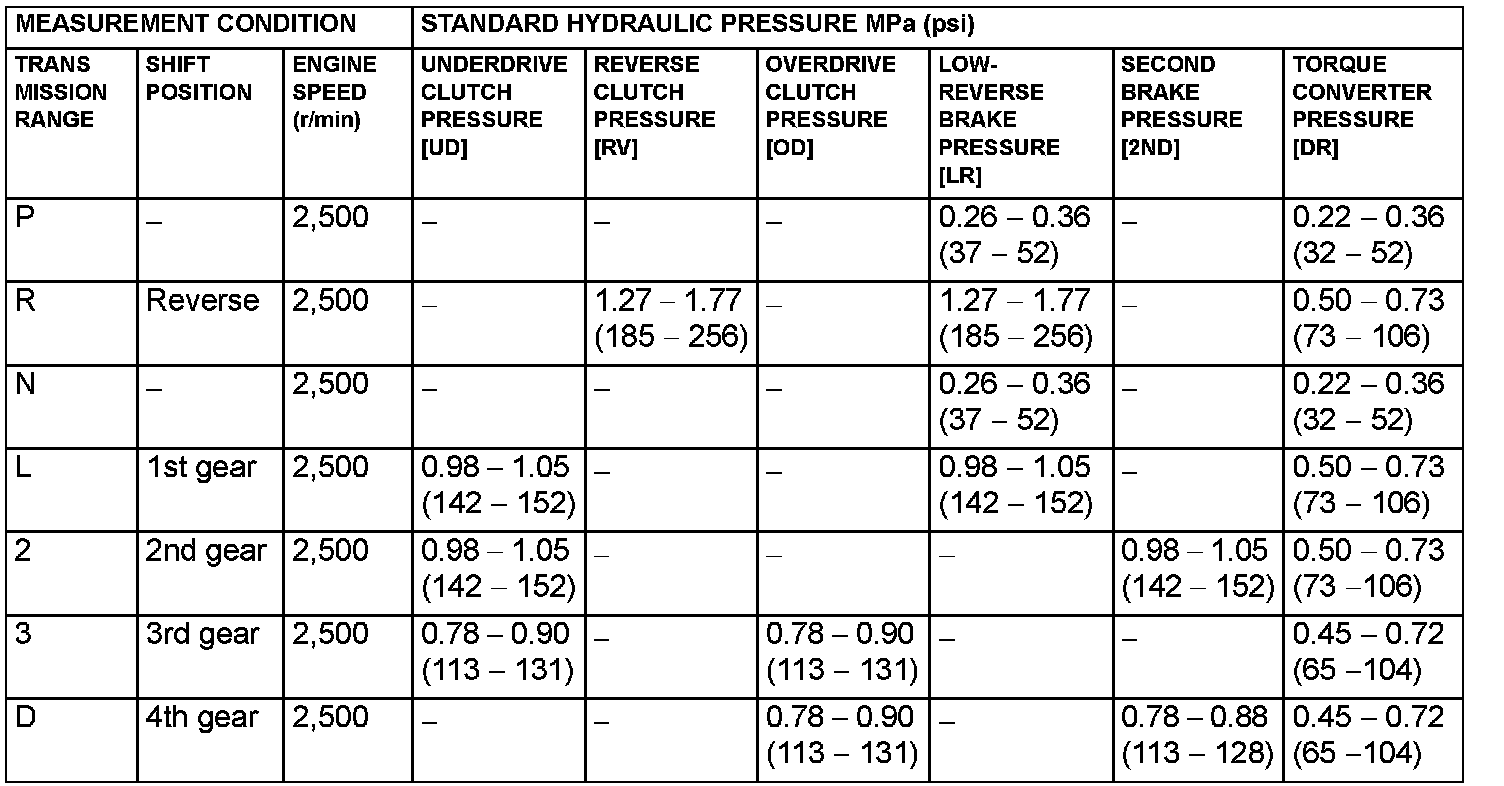

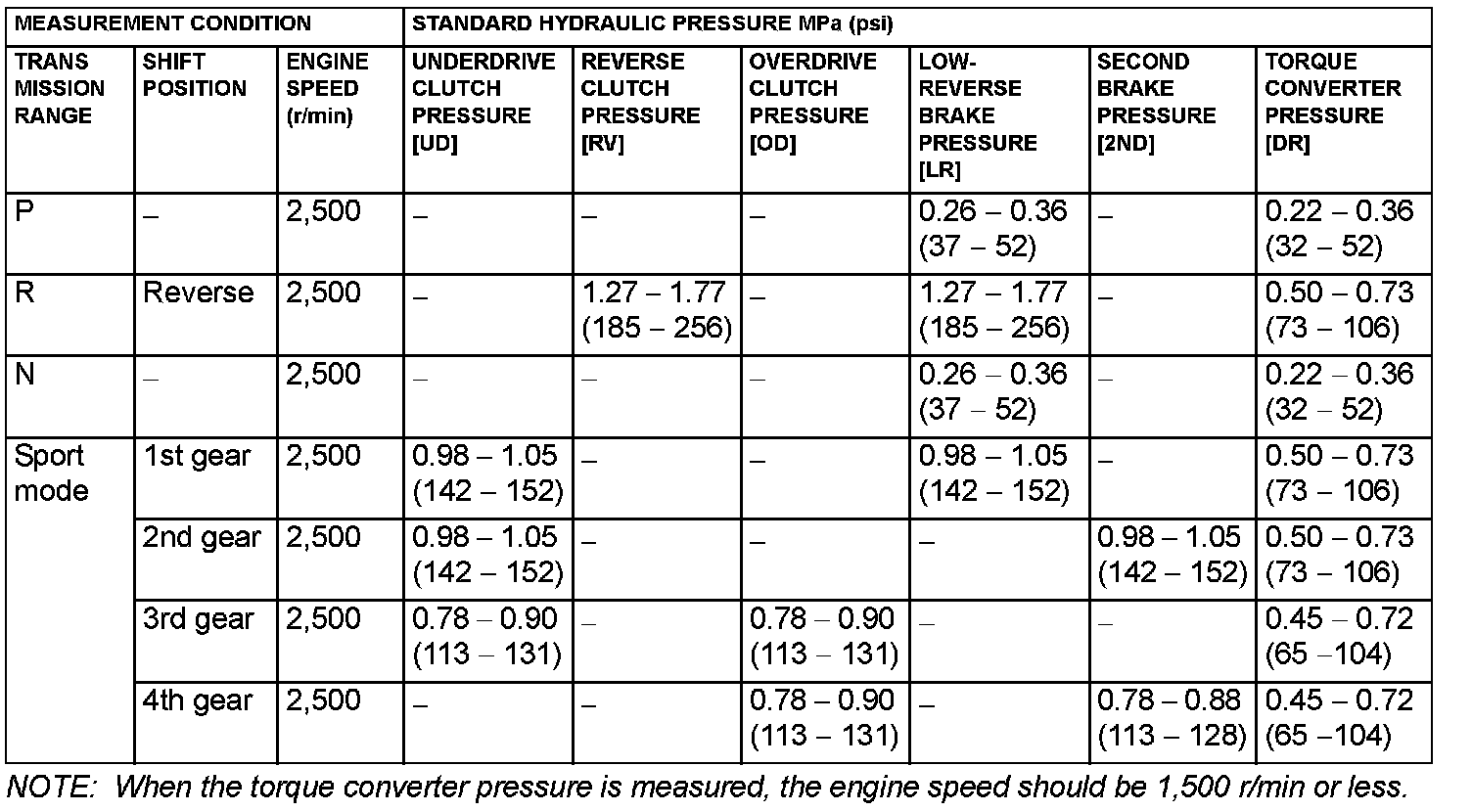

STANDARD HYDRAULIC PRESSURE TABLE
Part 1 Of 2:
Part 2 Of 2:

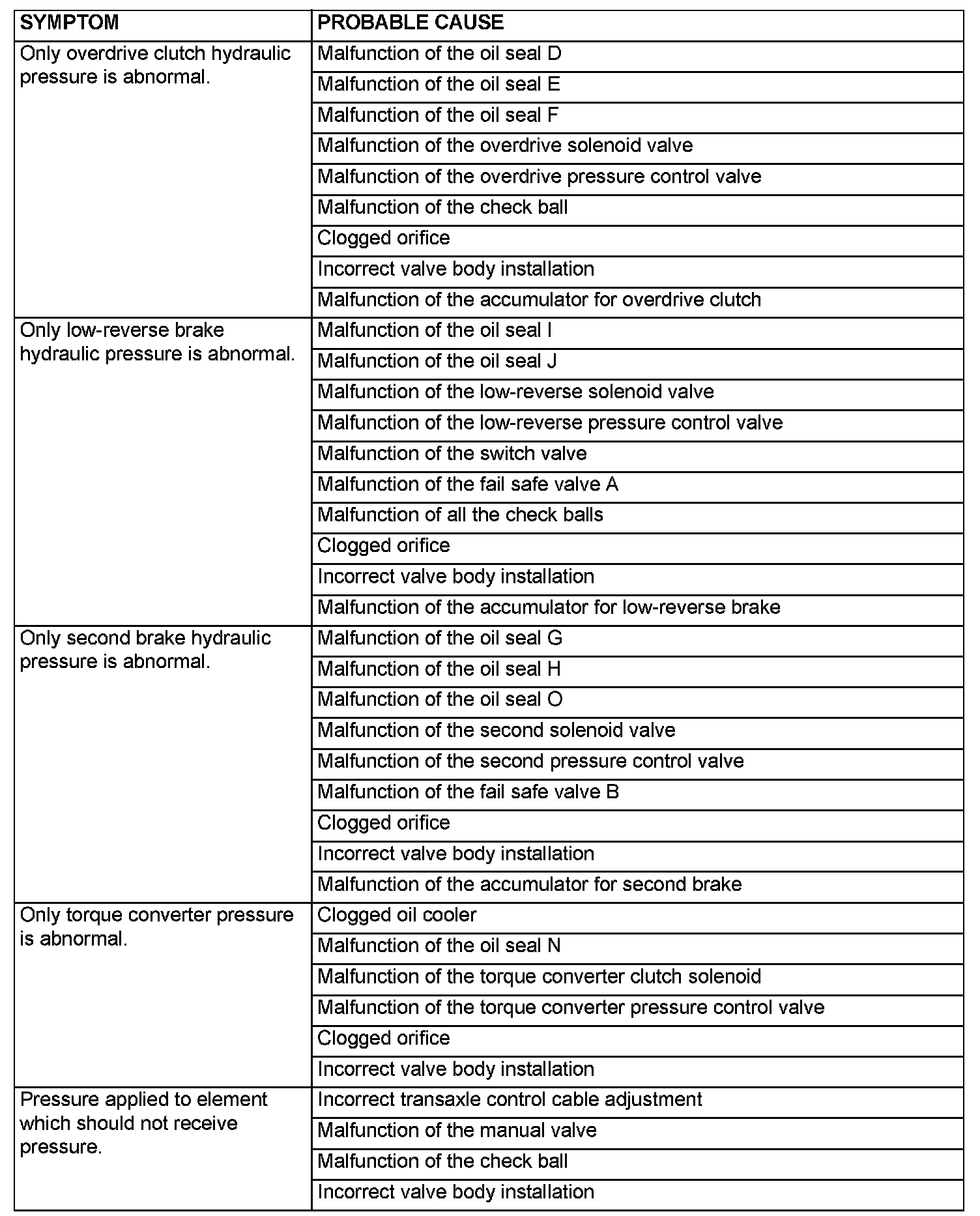

HYDRAULIC PRESSURE TEST DIAGNOSIS TABLE
