TRANSAXLE CONTROL
REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS
>>A<< SHIFT LOCK CABLE UNIT INSTALLATION





1. Selector lever to "P" position.
2. Turn the ignition key to "LOCK" (OFF) position.
3. Install the rod of the shift lock cable unit to the lock cam, push the lever in direction A, push the shift lock cable unit in direction B and tighten the bolt at the standard torque.
Tightening torque: 5.0 ± 1.0 Nm (44 ± 9 inch lbs.)
4. Check the selector lever operation.

>>B<< ADJUSTING NUT/TRANSAXLE CONTROL CABLE (TRANSAXLE SIDE) INSTALLATION
1. Place the selector lever and manual control lever in the "N" position.

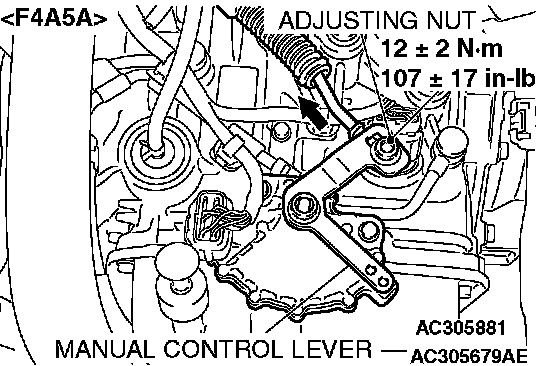

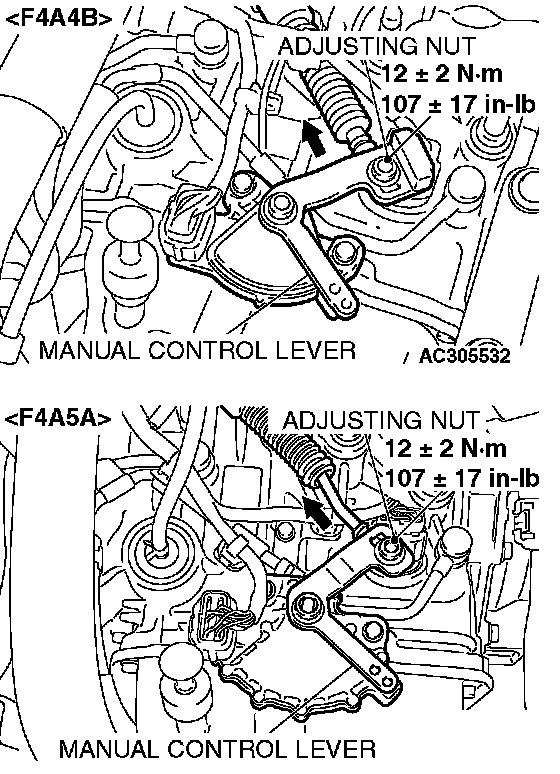

2. Place the cable stud into the manual control lever slot and install the nut loosely. Gently push the transaxle control cable into the manual control lever slot until the cable is taut. Tighten the nut to the specified torque.
Tightening torque: 12 ± 2 Nm (107 ± 17 inch lbs.)
